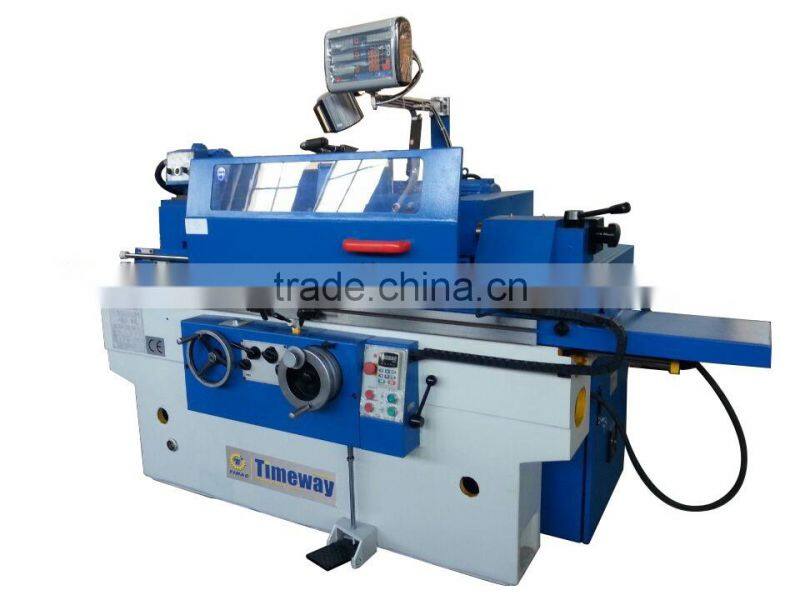

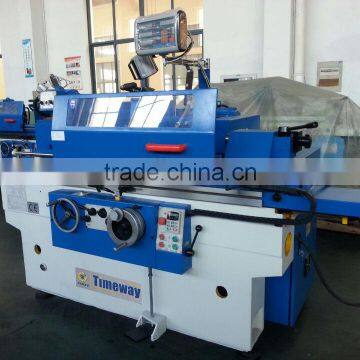

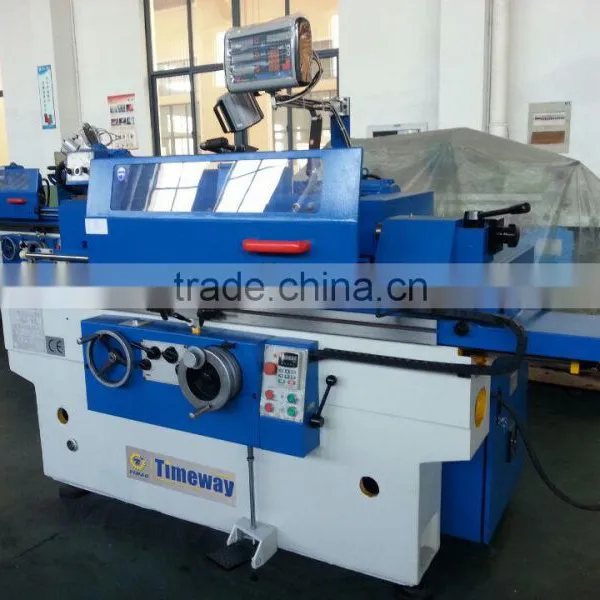

Newest High Precision Universal Cylindrical Grinding Machine
UG-200H UG-200HF
Main Functions and Features
1. The universal cylindrical grinding machine is the latest up to upgrade products. For grinding the workpiece of inner and outer cylindrical and tapered, the most suitable for single piece and small batch production use.
2. Headstock by a variable frequency motor drive, continuously variable transmission.
3. Longitudinal movement of the machine by hydraulic stepless transmission, can also hand-wheel drive; wheel lateral movement with hydraulic quick retreat and manual feed function.
Oil Cylinder
Main Accessories
- Coolant tank
- Wheel flanges
- Three jaw chuck
- Driving dog
- Support iron
- Quill shaft for internal grinding
- Grinding wheel dresser
- Wheel balancing mandrel
- Open type steady rest
- Carbide-tipped center
- Chuck base
Extra Accessories
- Wheel balancing stand
- Radirs dresser
- Center rest close type
Technical Parameters
| Specifications | Units |
UG-200H*500 UG-200HF*500 |
UG-200H*800 UG-200HF*800 |
| External grinding diameters | mm | Φ8-200 | Φ8-200 |
| Internal grinding diameters | mm | Φ13-100 | Φ13-100 |
| Center height | mm | 135 | 135 |
| Workhead spindle speed | rpm | 25-380(50HZ) | 25-380(50HZ) |
| Max. travel of table | mm | 650 | 950 |
| Hydraulic traverse speeds | m/min | 0.1-4 | 0.1-4 |
| Max. workpiece weight | kg | 50 | 50 |
| Grinding length external/internal | mm | 500/125 | 800/125 |
| Swivel range of grinding wheel | ° | -5- +9 | -3- +7 |
| Max. peripheral speed of grinding wheel | m/s | 38 | 38 |
| External wheel size | mm | Max.Φ400*50*Φ203; Min.Φ280*50*Φ203 | |
| Internal wheel spindle rotating speed | rpm | 16000 | 16000 |
| Workhead and tailstock center | Morse No.4 | Morse No.4 | |
| Roundness(O.D/I.D) | um | 1.5/2.5 | 1.5/2.5 |
| Surface Roughness(O.D/I.D) | um | Ra0.32/0.63 | Ra0.32/0.63 |
| Uniformity of dia. in longitudinal section(O.D/I.D) | um | 5/8 | 5/8 |
| Machine motor power | kw | 5.625 | 5.625 |
| Machine dimensions(L*W*H) | mm | 2500*1600*1500 | 3000*1600*1500 |
| Machine weight | kg | 2500 | 3000 |

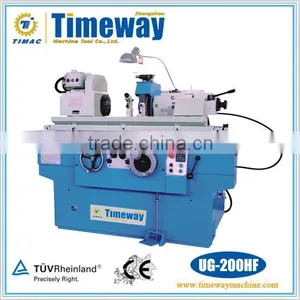

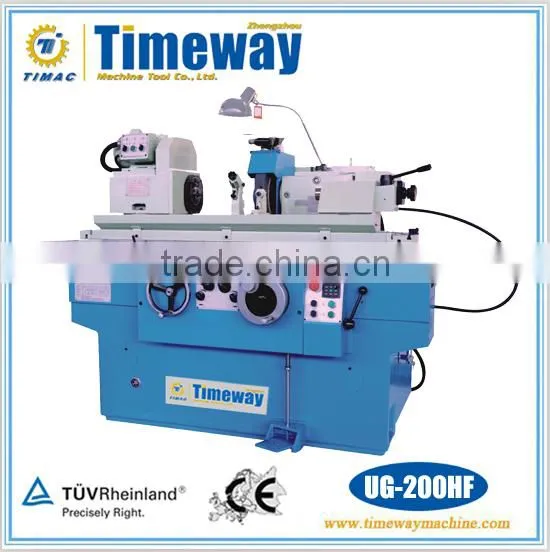

Universal Cylindrical Grinding Machine Series UG-200 UG-320 UG-500

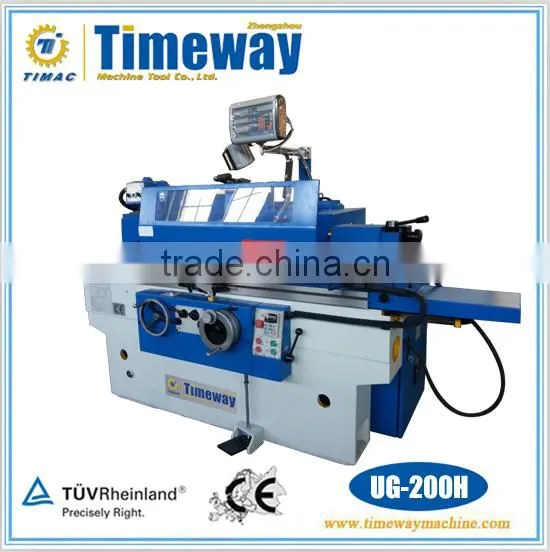

UG-200H*800 UG-200HF*500
UG-320*1000 UG-320*2000
