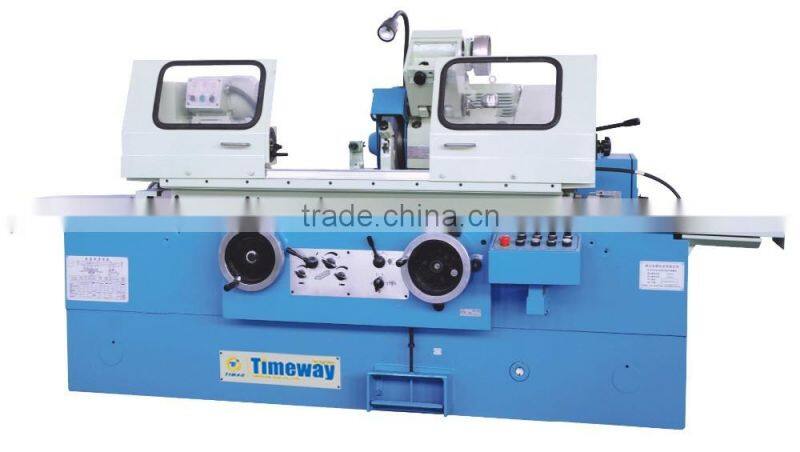

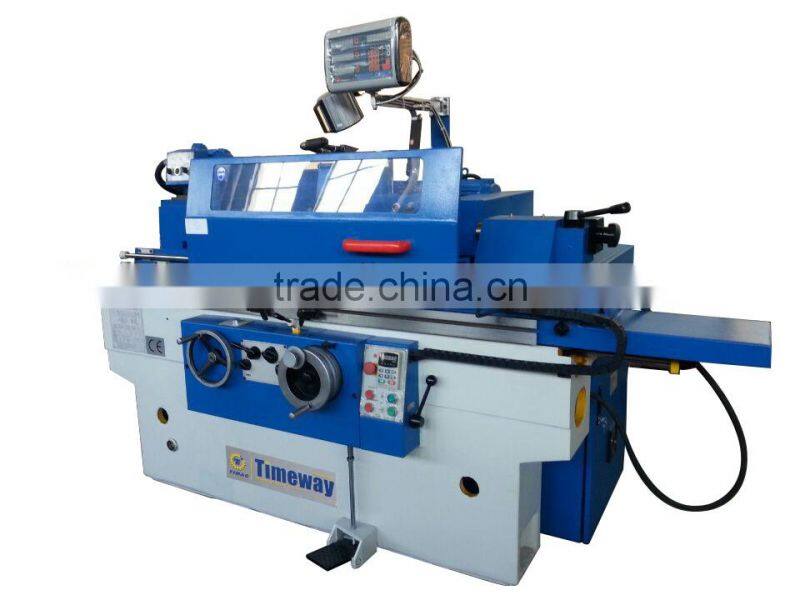

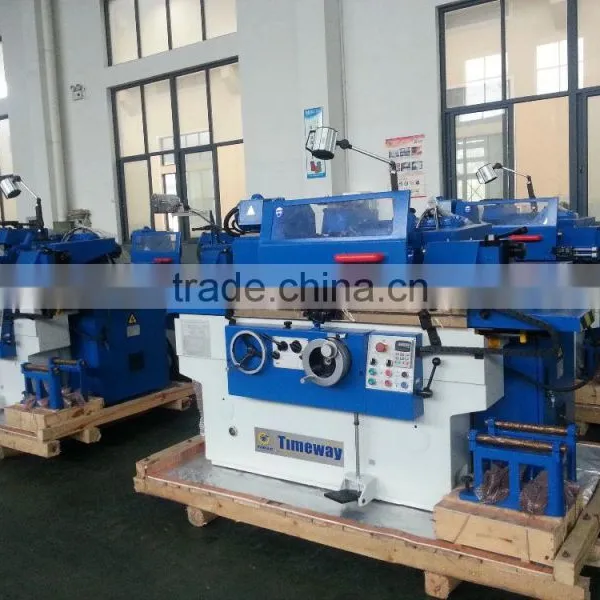

Newest High Precision Heavy-duty Universal Cylindrical Grinding Machine

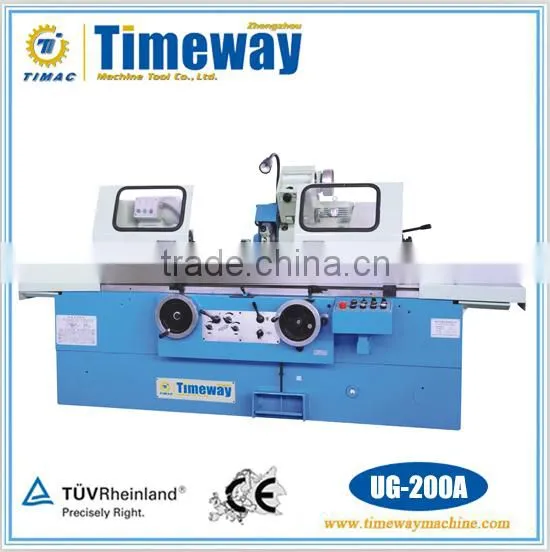

UG-200A G-200A
Main Functions and Features
1. This machine is a major grinder professional advantages of manufacturing units in the G-320, UG-320 type cylindrical grinder on the basis of draw to improve heavy duty grinder, with high cutting precision, high rigidity and high efficiency. Suitable for grinding cylindrical and conical workpiece.
2. The workpiece of machine, cylindrical grinding wheel, the inner circle of the grinding wheel, oil pump and cooling pump by an independent motor drive.
3. The longitudinal movement of the machine table by the hydraulic continuously variable transmission can also be handwheel drive, table lubrication orifice compensated unloading form.
4. Grinding wheel frame transverse feeding fine turning can be made by the hydraulic feed and fast and automatic cycle, two feed hand wheel is also available to achieve the thickness.
5. Grinding wheel rack main shaft diameters, motor power increase, grinding wheel rack oil pool temperature rise is small, high grinding rate.
6. Machine moving parts with electrical, hydraulic and mechanical structure, safe operate.

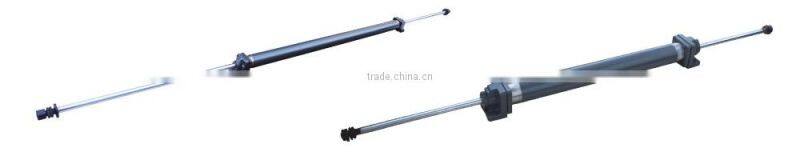

Oil Cylinder
Main Accessories
- Cylindrical dresser
- Wheel balancing disc
- Complete set of electric equipment
- Wheel peripheral dresser
- Wheel hub
- Wheel balancing arbor
- Int. gringing attachment
- Measuring bridge plate
- Open-type steady rest
- Leveling wedge
Extra Accessories
- Wheel balancing stand
- Radius dresser
- Close-type center rest
- Extension bar
Technical Parameters
| Specifications | Units | G-200A | UG-200A | |
| Grinding diameter(OD) | With steady rest(min./max.) | mm | 8/60 | 8/60 |
| Without steady rest(min./max.) | mm | 8/200 | 8/200 | |
| Grinding diameter(ID) | With steady rest(min./max.) | mm | - | 35/100 |
| Without steady rest(min./max.) | mm | - | 25/100 | |
| Max. work weight | kg | 80 | 80 | |
| Max. grinding length | O.D | mm | 500/750 | 500/750 |
| I.D | mm | - | 125 | |
| Center height | mm | 135 | 135 | |
| Distance between centers | mm | 500/750 | 500/750 | |
| Grinding wheel dimensions(O.D*W*I.D) | mm | Max.Φ400*50*Φ203; Min.Φ300*50*Φ203 | Max.Φ400*50*Φ203; Min.Φ280*50*Φ203 | |
| Peripheral speed of grinding wheel | m/s | 35 | 35 | |
| Wheel size for int. grinding attachment | mm | - | Max.Φ50*25*Φ13; Min.Φ17*20*Φ6 | |
| Wheelhead spindle speed | rpm | 1670 | 1670 | |
| Wheelhead rapid advance & wighdrawal | mm | 50 | 50 | |
| Total motor power | kw | 5.43 | 6.52 | |
| Machine dimensions(L*W*H) | mm | 2500/3000*1800*1650 | 2500/3000*1800*1650 | |
| Machine weight | kg | 3040/3540 | 3200/3700 | |
| Working Accuracy | ||||
| O.D roundness | um | 1.5 | 1.5 | |
| Surface roughness | um | Ra0.32 | Ra0.32 | |
| I.D roundness | um | 2.5 | 2.5 | |
| Uniformwof dia. in longitudinal section | um | 5 | 5 | |
| O.D roundness by chuck | um | 2.5 | 2.5 | |
| I.D surface roughness | um | Ra0.63 | Ra0.63 | |

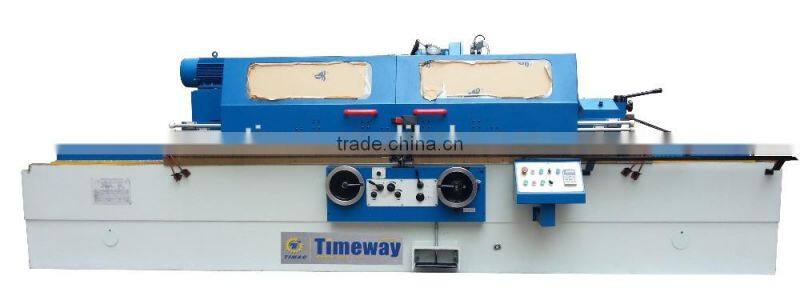

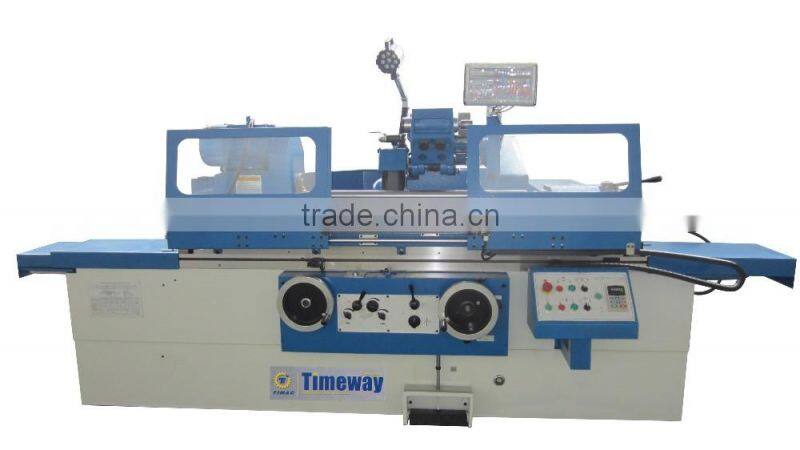

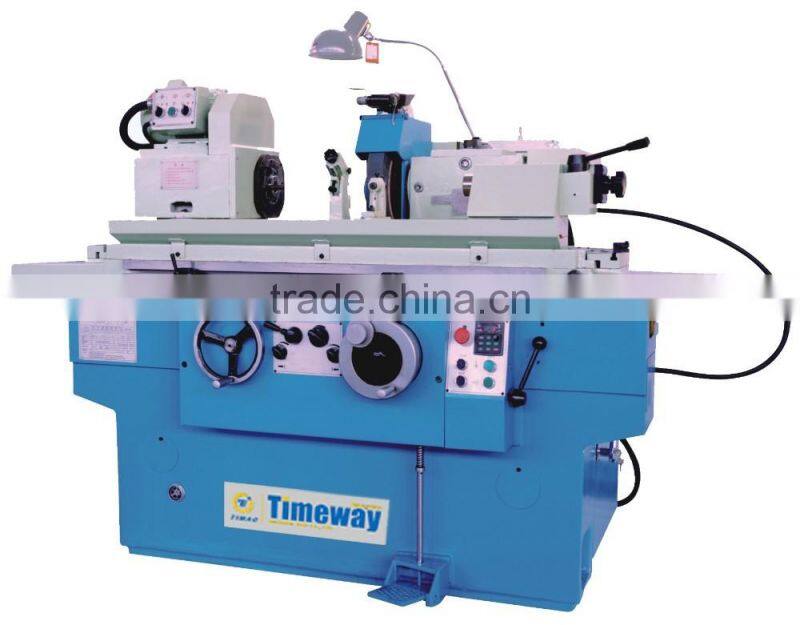

Universal Cylindrical Grinding Machine Series UG-200 UG-320 UG-500
UG-200H*800 UG-200HF*500
UG-320H*1000 UG-320H*2000
