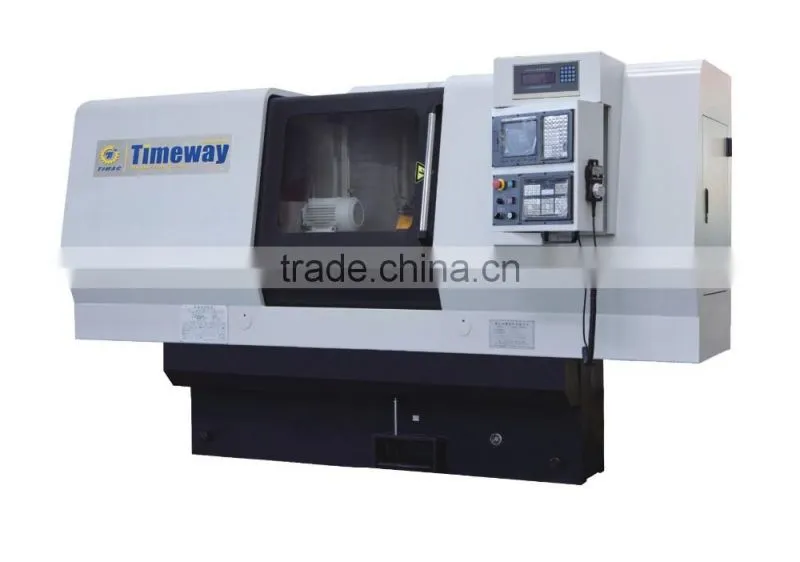

Help CenterEconomical Full Automatic CNC (Universal) Cylindrical Grinding Machine
Related Products
-
Newest High Precision Heavy-duty Universal Cylindrical Grinding MachineUS$ 1,000 - 13,000MOQ: 1 Set -
UG-320H*1000 High Precision Universal Cylindrical Grinding Machine for Internal and External (Horizontal Cylindrical Grinder )US$ 1,000 - 30,000MOQ: 1 Set
-
Newest High Precision Universal Cylindrical Grinding Machine (Horizontal Cylindrical Grinder )US$ 1,000 - 13,000MOQ: 1 Set
-
Large-type High Precision Universal Cylindrical Grinding Machine (Horizontal Cylindrical Grinder )US$ 1,000 - 30,000MOQ: 1 Set
-
CNC Cylindrical Grinder GK-320US$ 26,560 - 29,850MOQ: 1 Set
CNC High Precision (Universal) Cylindrical Grinding Machine

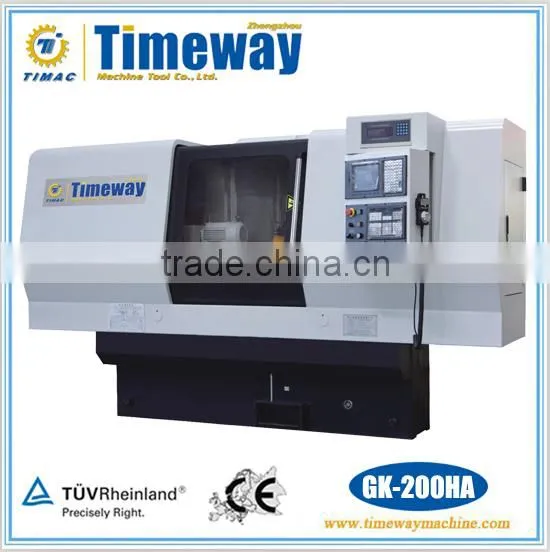

GK-200HA GKE-200HA
Main Functions and Features
1. The CNC cylindrical grinder is suitable for batch production of cylindrical parts grinding with high performance-to-price ratio.
2. The electrical system is controlled by KND 1000Ti, and the executive system is driven by the CNC servo driver and servo motor. Worktable longitudinal travel and wheelhead cross traverse which with the high infeed accuracy are realized by the servo motors via the ball screw transmission. With the touch screen and human-machine interface, the machine is easy to operate. With pther systems and configured online automatic measuring instrucment can also be based on user's needs.
3. The machine is simple and easy to operate. After simple training, it can be operated easily. By setting the parameter of longitudinal grinding or plunge grinding via the touch screen, an auto-grinding for the different workpiece is realized. With the function of worktable trip-stop, the machine can grind more than one journals of one workpiece automatical. The machine is simple and easy to operate. After simple training, it can be operated easily. By setting the parameter of longitudinal grinding or plunge grinding via the touch screen, an auto-grinding for the different workpiece is realized. With the function of worktable trip-stop, the machine can grind more than one journals of one workpiece automatically. The process parameter of more than one journals can be set discretionary for long grinding of plunge grinding.
4. With the function of wheel dressing and compensation automatically.
5. Wheelhead spindle is supported by three bushing hydro-dynamic bearing, and high precision hydro dynamic-static bearing is also available for the user.
6. Timing provision of lubrication for machine moving parts according to program designing. Automatic lubrication of all moving parts. Tailstock has two ways: hydraulic and manual.
Main Accessories
- Wheel periphery dresser
- Wheel hub
- Balancing arbor
- Open-type steady-rest
- Wheel extractor
- Magnetic separator
- Beijing KND1000Ti CNC system
Extra Accessories
- Wheel balancing stand
- Hybrid wheel spindle
- Diameter measuring instrument
Technical Parameters
| Specifications | Units |
GK-200HA*500 GKE-200HA*500 |
GK-200HA*750 GKE-200HA*750 |
| Dia. to be ground | mm | Φ8-Φ200 | Φ8-Φ200 |
| Max. length to be ground | mm | 500 | 750 |
| Center height | mm | 135 | 135 |
| Distance between centers | mm | 550 | 750 |
| Headstock center | Morse 4# | Morse 4# | |
| Tailstock center | Morse 4# | Morse 4# | |
| Max. workpiece weight to be ground | kg | 50 | 50 |
| Wheel size | mm | Φ400*50*Φ203 | Φ400*50*Φ203 |
| Wheel peripheral speed | m/s | 35 | 35 |
| Wheel spindle rotation speed | rpm | 1670 | 1670 |
| Min. pulse amount in X-axis | mm | 0.001 | 0.001 |
| Min. pulse amount in Z-axis | mm | 0.001 | 0.001 |
| Roundness | um | 1.5 | 1.5 |
| Dia. uniformity in the longitudinal section | um | 5 | 5 |
| Surface roughness | um | Ra0.32 | Ra0.32 |
| Total motor power | kw | 10.825 | 10.825 |
| Longitudinal servo motor | kw | 2.6(10N.m) | 2.6(10N.m) |
| Traverse servo motor | kw | 2.6(10N.m) | 2.6(10N.m) |
