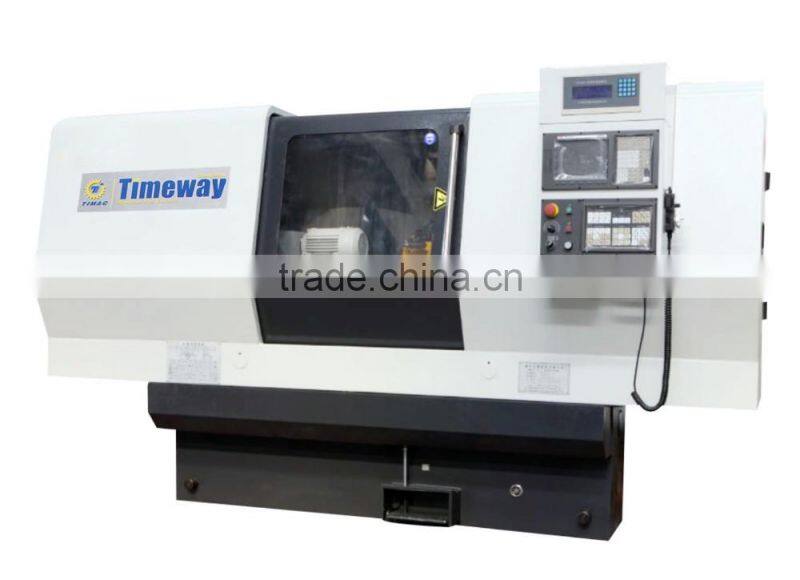

CNC High-speed Transverse Cylindrical Grinder

CNC High Speed Transverse Cylindrical Grinding Machine

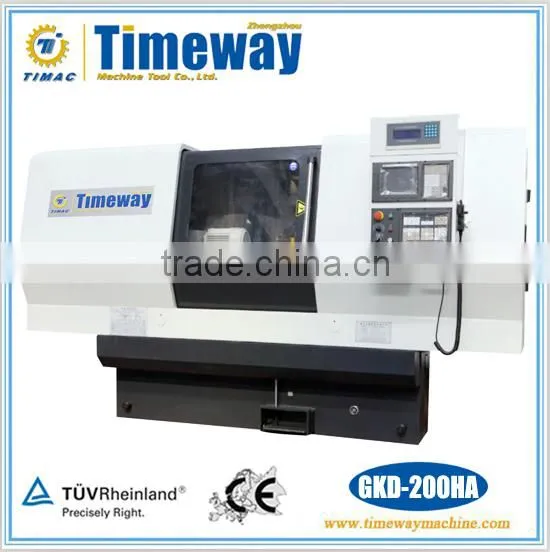

GKD-200HA     GKDE-200H

Main Functions and Features

1. This series machine is suitable for large quantities cylindrical shaft parts with shoulder and face machining grinding, shaping a plurality of steps to achieve the end face of the wheel when installing wide, high degree of automation, enabling one person to operate more than one.
2. Using SYNTEC CNC system(other systems can also be configured according to the custom,such as Japan FANUC or Germany SIEMENS).
3. High precision automatic measuring instrument is configured to achieve closed-loop automatic grinding work cycle to ensure dimensional accuracy.
4. Wheel frame using high-speed hybrid spindle assembly, with high rotation precision, rigidity, wheel width can be installed.
5. Configure a separate electrical box, tank and filtration tank.
6. Wheel motor adopts AC frequency adjustment device, that can basically achieve constant linear speed grinding.
7. The company is suitable for all levels of customer demand, can be formulated in consultation simple, mid-range and high-end precision CNC surface grinding machine.

Main Accessories

• Wheel periphery dresser
• Wheel hub
• Balancing arbor
• Open-type steady-rest
• Wheel extractor
• Magnetic separator
• Taiwan SYNTEC CNC system

Extra Accessories

• Wheel balancing stand
• Surface measuring instrument
• Diameter measuring instrument
• FANUC or SIEMENS CNC system

Technical Parameters
