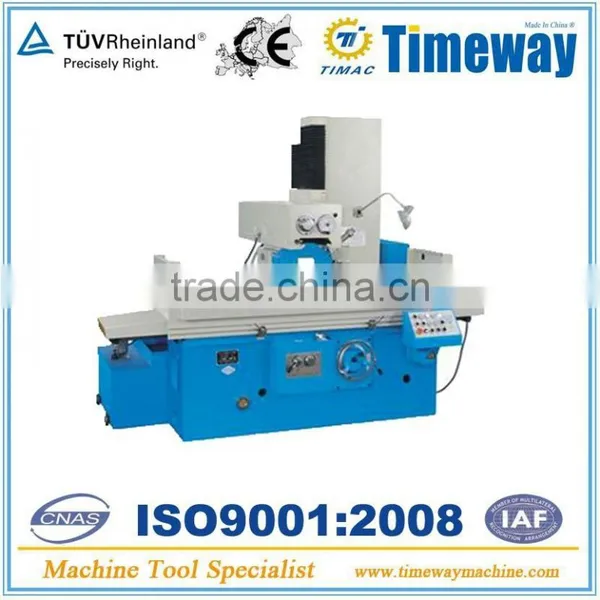

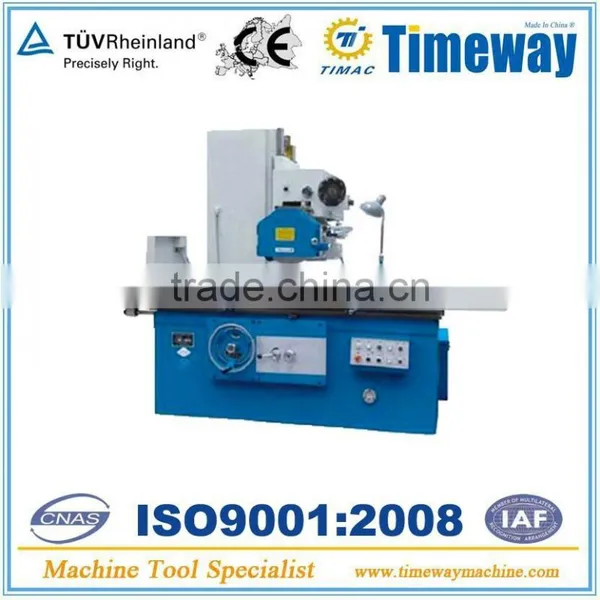

Wheel Head Moving Surface Grinding Machine ( GS-400 GS-500 )

Name: Wheel Head Moving Surface Grinding Machine ( GS-400 GS-500 )
Brand: TIMAC
SKU: 140797418
Availability: InStock

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Type:

Surface Grinding Machine

CNC or Not:

Normal

Zhengzhou Timeway Machine Tool Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

China Port

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Type Surface Grinding Machine

CNC or Not Normal

Brand Name TIMAC

Model Number GS-400A/B/C,GS-500A/B/C

Voltage as customer's request

Power(W) 11kw

Dimension(L*W*H) 3110mm*1740mm*2230mm

Certification CE & ISO

After-sales Service Provided Engineers available to service machinery overseas

General "Wheel Head Moving" Surfacing Grinding Machine

(GS-400A/B/C,GS-500A/B/C)

Product Description

Parameter:

Model		Unit	GS-400A	GS-500A
			GS-400B	GS-500B
			GS-400C	GS-500C
Size of worktable	Width	mm	400	500
Size of worktable	Legth	mm	1000/1600/2200/3000/4500
Max. processing demension	Width	mm	400	500
	Length	mm	1000/1600/2200/3000/4500
	Height	mm	400 800 1200	500 800 1200
Max. distance between spindle center line and worktable surface		mm	600 1000 1400	700 1000 1400


Longitudinal moving speed of worktable		m/mih	3-25	3-27
T-slot number/width		pcs/mm	3×18	3×22
Wheelhead cross moving	Consecutive feed speed	m/min	0.5-4.5
	Intermittent feed speed	mm/t	3-30
	Feed of hand wheel	mm/gra	0.02	0.01
Wheelhead vertical moving	Rapid feed	mm/min	400
Wheelhead vertical moving	Feed of hand wheel	mm/gra	0.005
Wheelhead motor	Power	kw	7.5
Wheelhead motor	Rotation speed	r.p.m	1440
Total motor		kw	11/13.5/15.75	12.25/13.75/15.375
Max. loading capacity of worktable (with chuck)		kg	620/1000/1380/ 1872/2810	700/1240/1410/ 1930/2895
Size of wheel(OD×W×ID)		mm	400×40×127	400×40×203
Overall dimension	Length	mm	3110/4250/5750/7880/12170
	Width	mm	1740	1900
	Height	mm	2230 2630 3030	2420 2720 3120
