Economical-type CNC Point Tracking Crankshaft Grinding Machine ( Special-use Crankshaft Grinder Machine)

Economical-type CNC Point Tracking Crankshaft Grinding Machine ( Special-use Crankshaft Grinder Machine) photo-1
Economical-type CNC Point Tracking Crankshaft Grinding Machine ( Special-use Crankshaft Grinder Machine) photo-2
US$ 10,000 - 50,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Other, CNC crankshaft grinding machine
CNC or Not:
CNC
Payment & Shipping
Payment Methods:
Port of Shipment:
China port
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Type Other, CNC crankshaft grinding machine
CNC or Not CNC
Max. Grinding Diameter 320mm
Max. Grinding Length 1000mm
Brand Name TIMAC
Model Number QMKE-320B*1000
Voltage 380V 50Hz
Power(W) 21.475kw
Dimension(L*W*H) As actual situation
Weight As actual situation
Certification CE ISO
After-sales Service Provided Engineers available to service machinery overseas

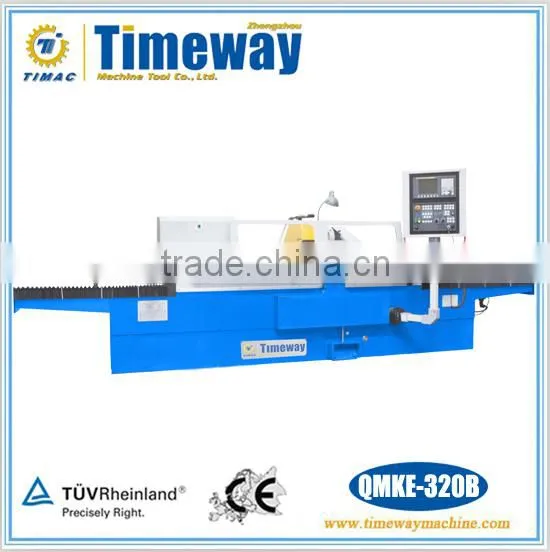

Economical-type CNC Point Tracking Camshaft(Crankshaft) Grinding Machine

QMKE-200H  QMKE-320B



Main Outlook

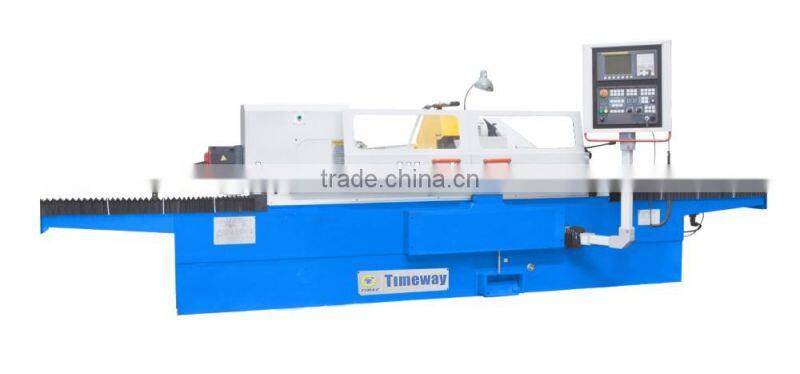

Economical-type CNC Point tracking Crankshaft Grinding Machine ( Special-use Crankshaft Grinder Machine)

Main Performances



Main Functions and Features

1. The grinder is a rotary motion and wheel infeed eccentric linkage by the crankshaft control to achieve journal grinding, which is currently the world's most advanced high-precision Crankshaft grinding technology, you can wear a fixture cut the crankshaft main journal and connecting rod neck, greatly improve grinding efficiency and geometric tolerances.
2. Using SYNTEC CNC system(other systems can also be configured according to the customer, such as FANUC or SIEMENS CNC system).
3. Wheel frame using high-speed hybrid spindle assembly.
4. Using proprietary CNC grinding crankshaft software.
5. Configurea separate electrical box, tank and filtration tank.



Main Accessories

  • Wheel periphery dresser
  • Wheel hub
  • Balancing arbor
  • Open-type steady-rest
  • Wheel extractor
  • Magnetic separator

Extra Accessories

  • Wheel balancing stand
  • Diameter measuring instrument
Specifications List



Technical Parameters

Specifications UnitsQMKE-200H*500/750QMKE-320B*1000/1500
Max. swing diameter of workpiece mmΦ200Φ320
Max. length of the workpiece installationmm550/8001050/1550
Max. diameter of wheelmmΦ500Φ600
Max. wheel peripheral velocitym/s8080
Max. workpiece weightkg70150
Roundnessum1.51.5
Dia. uniformity in the longitudinal sectionum55
Surface roughnessumRa0.32Ra0.32



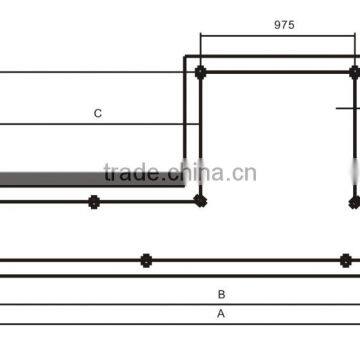

Foundation Drawing

The foundation depth depends upon the soilproperties, but it should be less than 400mm.

Economical-type CNC Point tracking Crankshaft Grinding Machine ( Special-use Crankshaft Grinder Machine)
