Economic-type Surface Grinding Machine With Vertical Spindle and Round Table

FOB Price

USD $10,000 - $100,000 / Set

1 Set(Min.Order)

Product Details

Condition:	New	Type:	Surface Grinding Machine	CNC or Not:	Normal
Max. Grinding Diameter:	500mm	Max. Grinding Length:	300mm	Brand Name:	TIMAC
Model Number:	VSG-500	Voltage:	380V 50Hz	Power(W):	25kw
Dimension(LWH):	As actual situation	Weight:	4000kg	Certification:	CE ISO
After-sales Service Provided:	Engineers available to service machinery overseas

Economic-type Surface Grinding Machine With Vertical Spindle and Round Table

VSG-500 VSG-750 VSG-800 VSG-1000 VSG-1250

VSG-1600 VSG-1800 VSG-2000 VSG-2250 VSG-2500

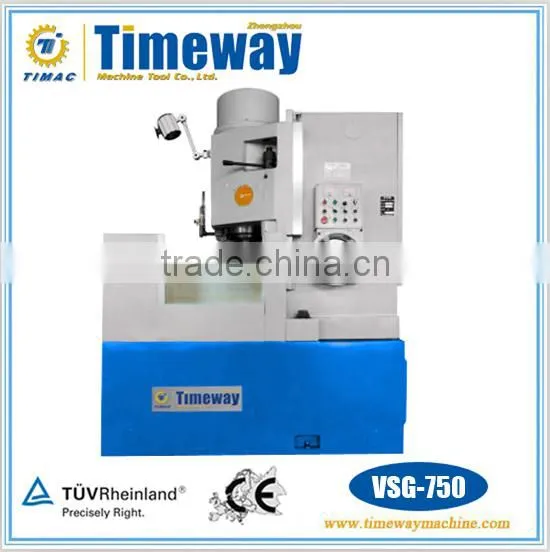

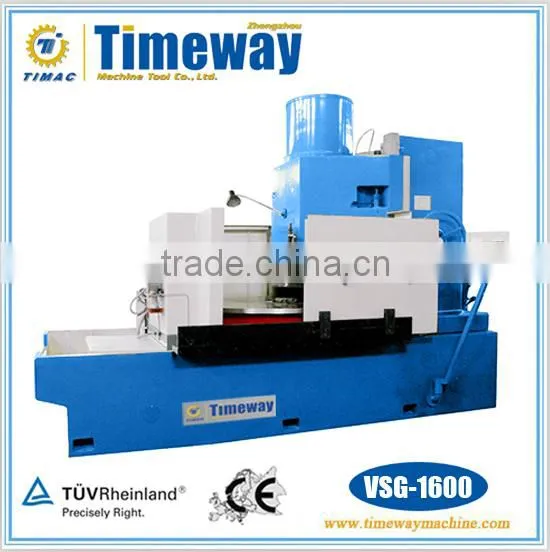

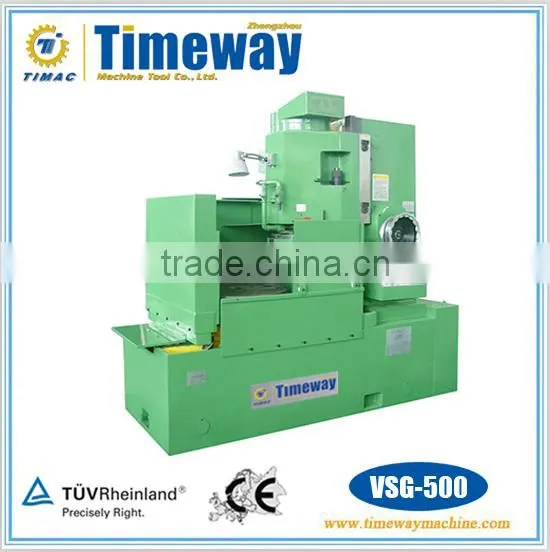

Main Outlook

Product Description

Performance and Feature

The surface grinding machine with vertical spindle and round table is to grind the end face of grinding wheel ,is a high efficiency,precise and stable machine tool.
The series of machine tools have made greater improvement on bed and grinding head rigidity; increase one set of electronic oil pumping system each for bottom guide rail and upright post guide rail of work bench, can pump oil automatically and oil volume is adjustable.upright post adopts three-point adjustment,compace structure,work bench is round powerful electromagnetic chuck, magnetic froce is uniform, precision is stable, power is big, electronic magnetizing and demagetizing ,and equips with coolant purification device.
The series of machine tools are mainly used for grinding blank and general precise large parts,surface roughness reaches above 0.8,and parallelism is within 0.02/1000mm
Therefore ,it is espacially suitable for grinding of large parts in metallurgy,saw balde,automobile ,tractor,tools,bearing and other industries.

Specifications List

Technical Parameter

Specification	Unit	VSG-500	VSG-750	VSG-800
Diameter of work bench	mm	Φ500	Φ750	Φ800
Suction range of electromagnetic work bench	M/cm²	80-120	80-120	80-120
Maximum size of grinding work piece	mm	Φ500x300	Φ750x320	Φ800x320
Size of abrasive segment (thickness x width x length)	mm	150x60x25	125x85x35	125x85x35
Rotational speed of work bench	rpm	24	13:20	13:20
Displacement diatance of work bench	mm		450	450
Movement speed of work bench	m/min	3.7	4	4
Power of rotary motor of work bench	kw	-	2.2	2.2
Power of travelling motor of work bench	kw	-	1.1	1.1
Rotational speed of grinding head main spindle	rpm	940	940	940
Rapid moving speed of grinding head	m/min	0.35	0.22	0.22
Motor power of grinding head	kw	22	25	25
Power of elevating motor of grinding head	kw	-	0.55	0.55
Vertical displacement distance of grinding head per rotation of handwheel	mm	0.4	0.5	0.5
Vertical displacement distance of grinding head per division of dial disc	mm	0.01	0.01	0.01
Vertical displacement distance of grinding head per rotation of dial disc	mm	1.0	1.0	1.0
Power of water pump motor	kw	0.12	0.25	0.25
Total power of machine tool	kw	25	30	30
Weight to machine tool (approximately)	T	4	6	6

Specification	Unit	VSG-1000	VSG-1250	VSG-1600
Diameter of work bench	mm	Φ1000	Φ1250	Φ1600
Suction range of electromagnetic work bench	M/cm²	80-120	80-120	80-120
Maximum size of grinding work piece	mm	1000x400	1250x400	1600x400
Size of abrasive segment (thickness x width x length)	mm	2580150	-	3590150
Rotational speed of work bench	rpm	12:24	12:24	16
Displacement diatance of work bench	mm	570	675	810
Movement speed of work bench	m/min	3.7	3.7	2.5
Power of rotary motor of work bench	kw	2.4/1.5	2.4/1.5	5.5
Power of travelling motor of work bench	kw	1.1	1.1	3.0
Rotational speed of grinding head main spindle	rpm	740	740	585
Rapid moving speed of grinding head	m/min	0.15	0.15	0.09
Motor power of grinding head	kw	45	45	75
Power of elevating motor of grinding head	kw	0.55	0.55	1.5
Vertical displacement distance of grinding head per rotation of handwheel	mm	0.4	0.4	0.32
Vertical displacement distance of grinding head per division of dial disc	mm	0.01	0.01	0.01
Vertical displacement distance of grinding head per rotation of dial disc	mm	1.0	1.0	0.7
Power of water pump motor	kw	0.25	0.25	0.25
Total power of machine tool	kw	50	50-65	84
Weight to machine tool (approximately)	T	7.5	8.5	24

Specification	Unit	VSG-1800	VSG-2000	VSG-2250	VSG-2500
Diameter of work bench	mm	Φ1800	Φ2000	Φ2250	Φ2500
Suction range of electromagnetic work bench	M/cm²	80-120	80-120	80-120	80-120
Maximum size of grinding work piece	mm	1800x400	2000x400	2250x400	2500x450
Size of abrasive segment (thickness x width x length)	mm	3590150	3590150	3590150	3590150
Rotational speed of work bench	rpm	16	10:15	10:15	10
Displacement diatance of work bench	mm	810	1050	1050	1300
Movement speed of work bench	m/min	2.5	2.5	2.5	2
Power of rotary motor of work bench	kw	5.5	7.5	7.5	7.5
Power of travelling motor of work bench	kw	3.0	3.0	3.0	4.0
Rotational speed of grinding head main spindle	rpm	585	585	585	585
Rapid moving speed of grinding head	m/min	0.09	0.09	0.09	0.09
Motor power of grinding head	kw	75	90	90	90
Power of elevating motor of grinding head	kw	1.5	1.5	1.5	2.5
Vertical displacement distance of grinding head per rotation of handwheel	mm	0.32	0.32	0.32	0.32
Vertical displacement distance of grinding head per division of dial disc	mm	0.01	0.01	0.01	0.01
Vertical displacement distance of grinding head per rotation of dial disc	mm	0.7	0.7	0.7	0.7
Power of water pump motor	kw	0.25	0.25	0.25	0.25
Total power of machine tool	kw	84	85	85	106
Weight to machine tool (approximately)	T	24	28	29	40

Zhengzhou Timeway Machine Tool Co., Ltd.: Contact nameDavid Cheung; Phone86-371-60308992; Address4-1702, 32# NORTH JINGSAN ROAD, ZHENGZHOU, HENAN,CHINA Zhengzhou,Henan
