1. PLC surface grinding machine2. Column moving surface grinder
3. 810x2200mm grinding size
4. Wheel size 500x75x305mm

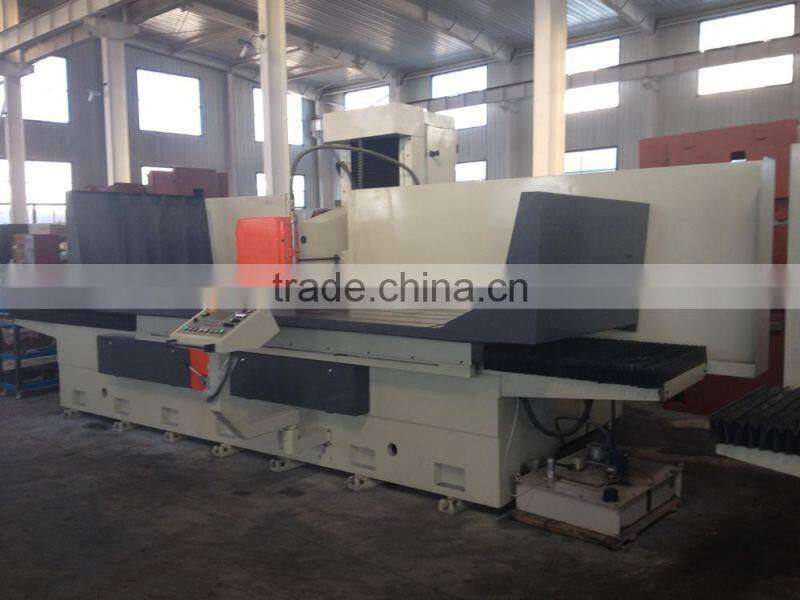

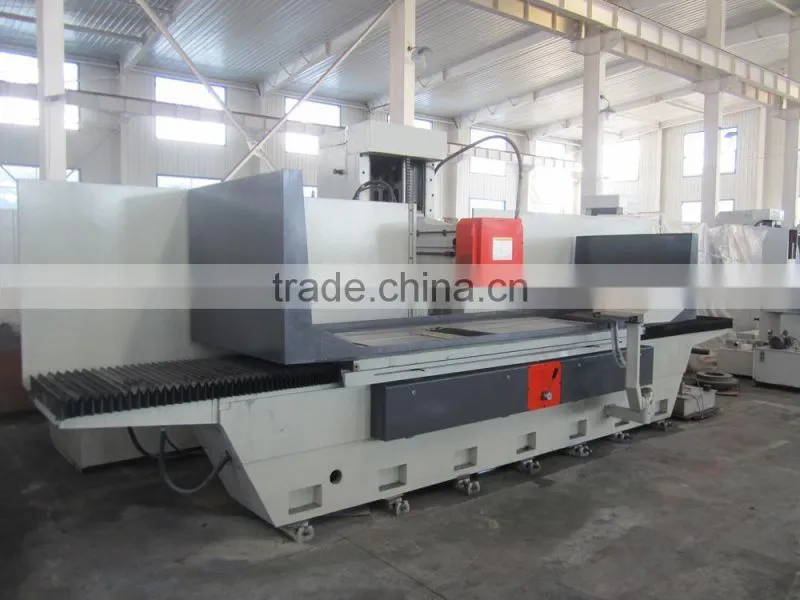

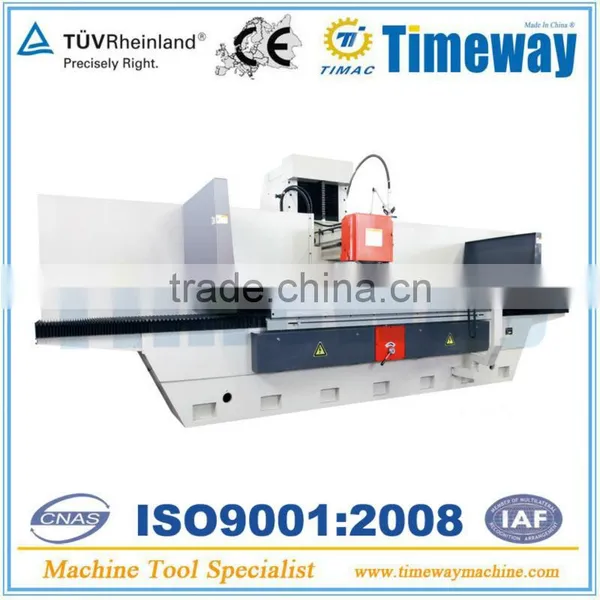

PLC Column Moving Surface Grinding Machine
Features:
1. Double walled column construction, providing high rigid support.
2. Adopt rectangular guideway coated with ZA30-C zinc-based alloy, to get low friction coefficient.
3. Adopt the Flat-V type guideway to set good guidance quality on longitudinal and transverse, precision scraping to keep stable work accuracy by hand.

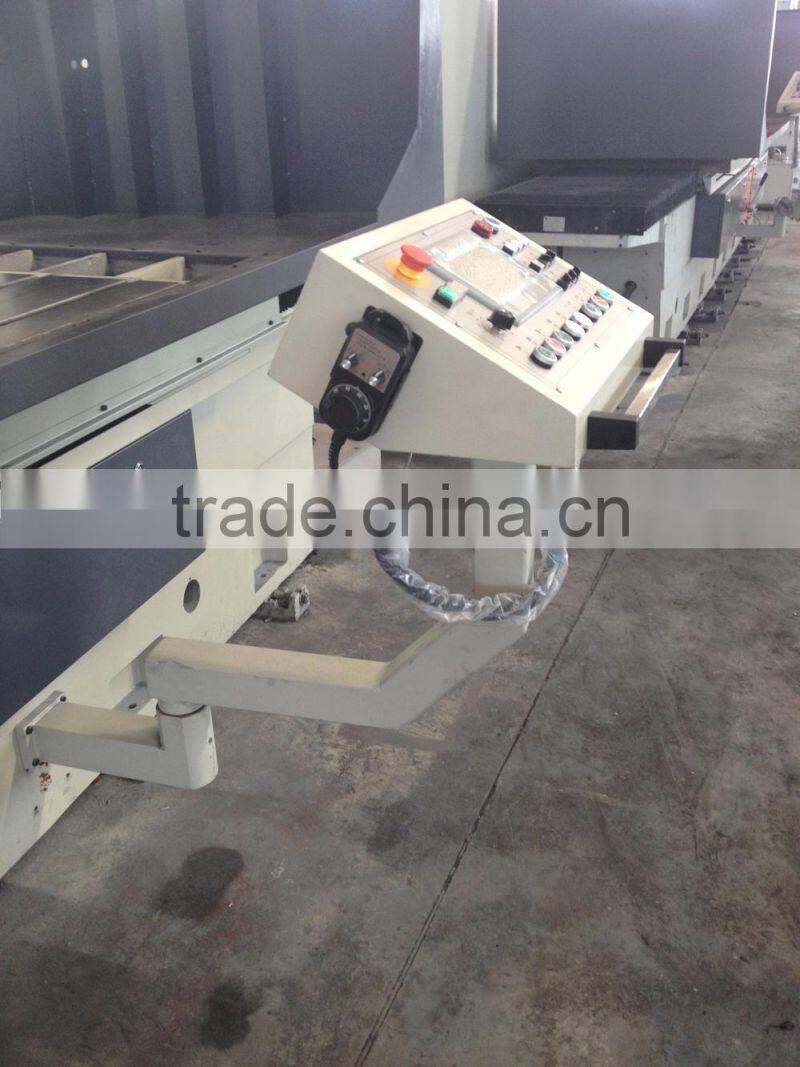

4. The transverse and vertical movement are driven by AC servo motor, and the electronic hand wheel (MPG) instead of the tradition mechanical hand wheel.

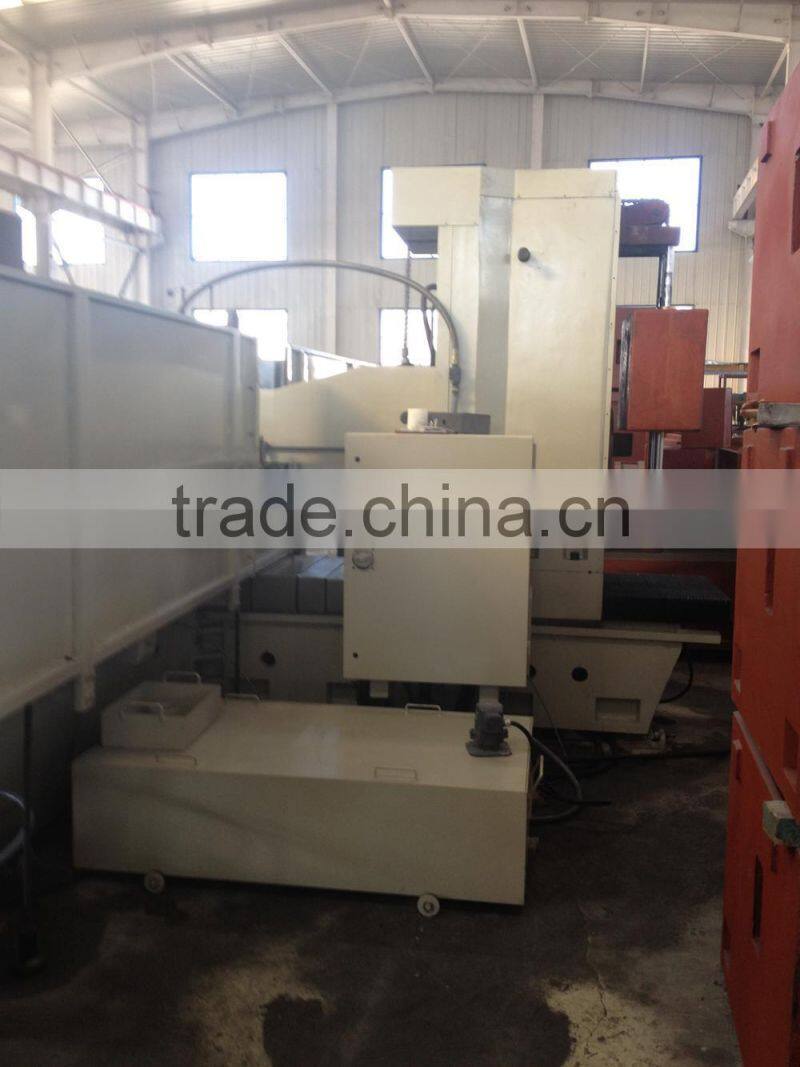

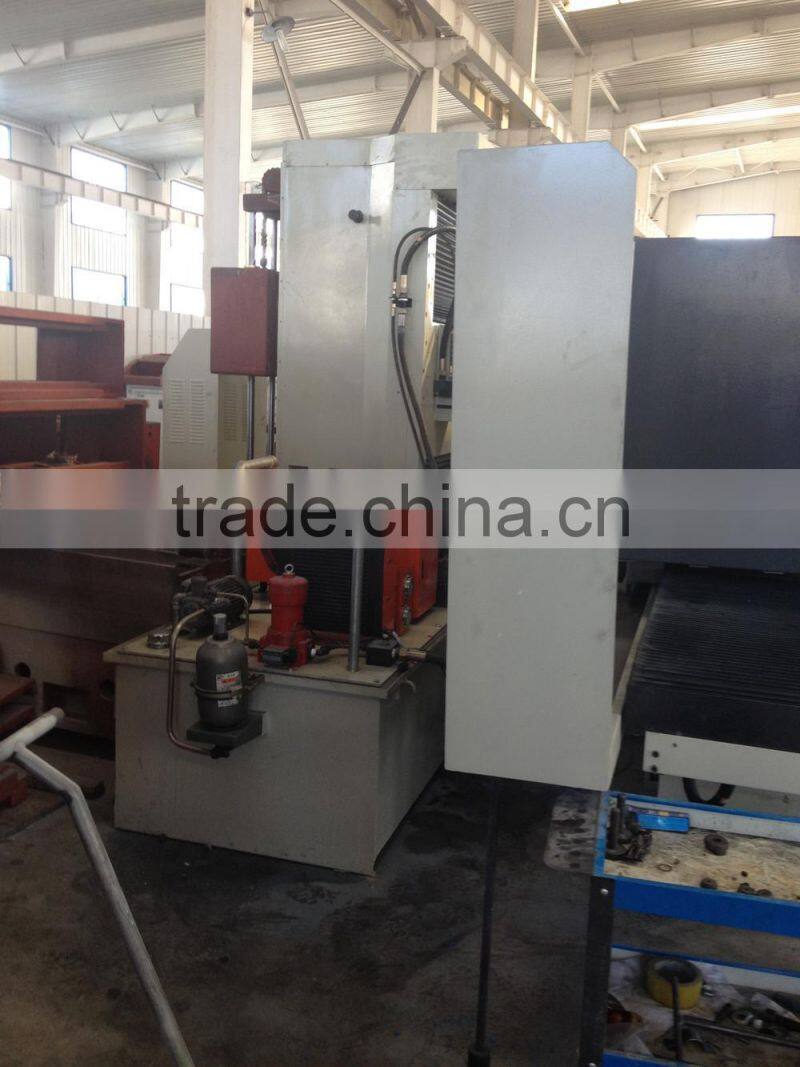

5. The independent and large capacity integrated hydraulic station equipped with air cooling and pressurizer, isolate heat and vibrioses, to provide excellent power for precision grinding.
6. The wheel head spindle use high precision ball bearing for export, which can provide the power force together with 18.5kw motor, suitable for the heavy machining.
7. Hydraulic drive for the work table, after adjusting meticulously, the table moved stably with little impact.
8. Adopt SIEMENS touch operation panel. It makes the operation simple and interesting by using power and friendly human-machine interface.
9. Special design, elegant appearance, good stability.
Standard accessories:
Coolant tank, Wheel dresser base, Flange and wheel extractor, Build in electro magnetic chuck controller, Balance stand, Working lamp, Balance arbor, Standard wheel, PLC grinding controller, CNC controller (only for CNC series machine), Leveling wedge and foundation bolt;
Optional accessories:
Electro magnetic chuck, Hydraulic parallel wheel dresser, Coolant with magnetic separator and paper filter, Coolant tank paper filter, Coolant tank with magnetic separator.
| Specification | Unit | SG-81160FR | SG-81220FR | SG-81300FR | SG-81400FR | |
| Working Area | ||||||
| Table size (W x L) | mm | 810x1600 | 810x2200 | 810x3000 | 810x4000 | |
| Max. grinding dimension (W x L) | mm | 810x1600 | 810x2200 | 810x3000 | 810x4000 | |
| Max. Grinding height | mm | 670 / 1000(heightening column) | ||||
| Electro magnetic chuck (optional) | mm | 800x800x2 | 800×1000x2 | 800x1000x3 | 800x1000x4 | |
| Max. loading capacity ( include chuck) | kg | 2000 | 2400 | 3500 | 5500 | |
| 3 axis feed | ||||||
| Table longitudinal movement speed | m/min | 5~25 | ||||
| Wheel head cross movement | Auto. feed | mm/t | 1~30 | |||
| Rapid speed | m/min | 0.05~3 | ||||
| Feed of electro handwheel | mm/gr | 0.005 | ||||
| Wheel head vertical movement | Auto. feed | mm/t | 0.005~0.05 | |||
| Rapid speed | m/min | 0.05~2 | ||||
| Feed of electro handwheel | mm/gr | 0.005 | ||||
| Grinding wheel | ||||||
| Speed | rpm | 960 | ||||
| Size (OD x W x ID) | mm | 500 x 75 x 305 | ||||
| Motor | ||||||
| Spindle motor | kw | 18.5 | ||||
| Hydraulic pump motor | kw | 5.5 | 7.5 | 11 | ||
| Elevating servo motor and cross feed servo motor | kw | 3 | ||||
| Total rated power | kw | 32 | 34 | 38 | ||
| Dimensions and Weight | ||||||
| Floor space (L x W) | mm | 4700x4000 | 6000x4000 | 8200x4000 | 10000x4000 | |
| Gross Weight | kg | 10500 | 13000 | 14000 | 16000 | |
