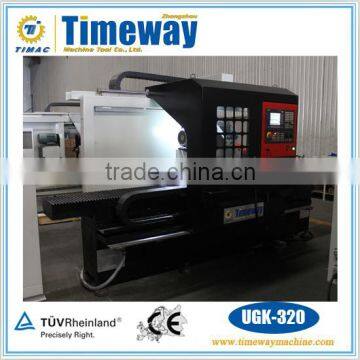

CNC Universal Cylindrical Grinding Machine / CNC Universal Grinder

Name: CNC Universal Cylindrical Grinding Machine / CNC Universal Grinder
Brand: TIMAC
SKU: 140797326
Availability: InStock

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Type:

Cylindrical Grinding Machine

CNC or Not:

CNC

Zhengzhou Timeway Machine Tool Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

China Port

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Type Cylindrical Grinding Machine

CNC or Not CNC

Max. Grinding Diameter 320mm

Max. Grinding Length 1500mm

Brand Name TIMAC

Model Number UGK-200,UGK-320

Voltage as customer's request

Power(W) 4KW

Dimension(L*W*H) 2600mm*2060mm*2050mm

Weight 4100kg

Certification CE & ISO

After-sales Service Provided Engineers available to service machinery overseas

"UGK Series "CNC Universal Cylindrical Grinding Machine/CNC Universal Grinder(UGK-200, UGK-320)

Product Description

Standard Accessories:

Semi isolated table shield, Coolant tank, Wheel dresser, 2 points steady rest (Standard dimension), wheel flange

Wheel, Wheel extractor, Wheel balancing arbor, Center points, 3-jaw chuck, Internal grinding attachment,

Siemens electrical equipment & delta transducer, Operation Manual (English edition).

Optional Accessories:

Full-closed safety cover, Coolant tank with magnetic separator, Coolant tank with paper filter, Machine safety

relay protection.

Parameter:

Specification		Unit	UGK-200	UGK-320
* General capacity
Distance between centers		mm	500,750	1000 1500
Center height		mm	135	180
Dia.ground(O.D)		mm	5-200	8-320
Dia.ground (I.D)		mm	25-100	30-100
Max.length to be ground(O.D)		mm	500,750	1000 1500
Max. length to be ground (I.D)		mm	100	125
* Workhead
Swiveling angle		º	±90º
Center taper(MT)		MT	4
Spindle speed/stepless		r/min	50HZ:25-380	50HZ:25-220
* Wheel head
Swiveling angle		º	±10º	±30º
Wheel size(ODXWXID)		mm	400×50×203
Wheel peripheral velocity		m/s	35
Min. set unit		mm	0.002
* Internal grinding device
Spindle speed		r/min	10000
* Table
Max. swiveling angle of table	Clockwise	º	3º
	Anticlockwise	º	9º(500), 8º(750)	7º(1000), 6º(1500)
* Tailstock
Center taper(MT)		MT	4
Quill travel		mm	30
* Electric system
CNC system			Siemens SINUMERIK 808D
Wheelhead motor power		kw	4	5.5
Internal grinding motor power		kw	1.1
Workhead motor power		kw	1.1	1.5
*Machine accuracy
Roundness		μm	3
Cylindricity		μm	5(500), 8(750)	8
Roughness		μm	Ra0.32
* Machine
Gross weight		T	4.1(500), 4.3(750)	5.3(1000), 6.1(1500)
Packing dimension(L×W×H)			260×206×205(500)	338×200×205(1000)
			300×206×205(750)	438×200×205(1500)
