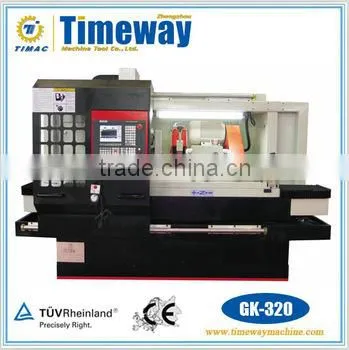

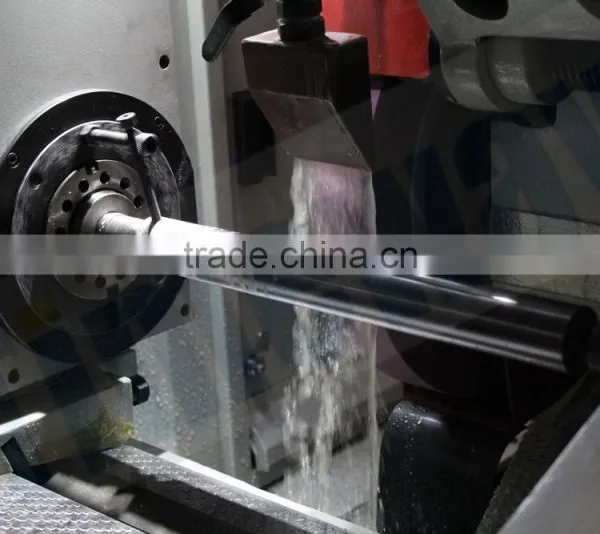

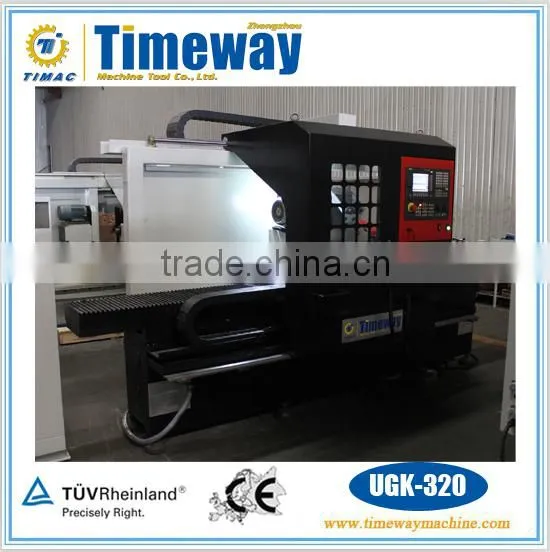

CNC Grinder / Siemen CNC Cylindrical Grinding Machine
- 50 Set / Sets per Month
- China Port
- T/T
- Second-hand sweeper second-hand mobile phone curved glass sweeper tablet computer curved glass sweeper
- Automatic Ultrafine Powder Grinder with Ceramic Mortar
- Automatic Powder Grinder with Ceramic Mortar
- Pneumatically-lifted Laboratory Grinder (Special grinding equipment for scientific research in Colleges and Universities)
- Pneumatically-lifted Grinder with Double Pestle and Ceramic Mortar (manual discharging)
- Pneumatically-lifted Grinder with Ceramic Mortar (Large grinder for chemical material and new material)
Product Details
Condition: | New | Type: | Cylindrical Grinding Machine | CNC or Not: | CNC |
Max. Grinding Diameter: | 320mm | Max. Grinding Length: | 1500mm | Brand Name: | TIMAC |
Model Number: | GK-200,GK-320 | Voltage: | as customer's request | Power(W): | 5.5KW |
Dimension(L*W*H): | 2600mm*2060mm*2050mm | Weight: | 4000kg | Certification: | CE & ISO |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
" Siemen SINUMERIK 808D Controller "
CNC Cylindrical Grinding Machine/CNC External Grinder
Standard Accessories:
Semi isolated table shield, Coolant tank, Wheel dresser, 2 points steady rest (Standard dimension), wheel flange
Wheel, Wheel extractor, Wheel balancing arbor, Center points, 3-jaw chuck, Siemens electrical equipment &
delta transducer, Operation Manual (English edition).
Optional Accessories:
Full-closed safety cover, Coolant tank with magnetic separator, Coolant tank with paper filter, Machine safety
relay protection.
Parameter:
Specification | Unit | GK-200 | GK-320 | ||
* General capacity | |||||
Distance between centers | mm | 500,750 | 1000 1500 | ||
Center height | mm | 135 | 180 | ||
Dia.ground(O.D) | mm | 5-200 | 8-320 | ||
Max.length to be ground(O.D) | mm | 500,750 | 1000 1500 | ||
* Workhead | |||||
Center taper(MT) | MT | 4 | 5 | ||
Spindle speed/stepless | r/min | 50HZ:25-380 | 50HZ:25-220 | ||
* Wheel head | |||||
Wheel size(ODXWXID) | mm | 500×50×203 | 600×75×305 | ||
Wheel peripheral velocity | m/s | 35 | |||
Min. set unit | mm | 0.002 | |||
* Internal grinding device | |||||
Spindle speed | r/min | ---------- | |||
* Table | |||||
Max. swiveling angle of table | Clockwise | º | 3º | ||
Anticlockwise | º | 9º(500), 8º(750) | 7º(1000), 6º(1500) | ||
* Tailstock | |||||
Center taper(MT) | MT | 4 | |||
Quill travel | mm | 30 | |||
* Electric system | |||||
CNC system |
| Siemens SINUMERIK 808D | |||
Wheelhead motor power | kw | 5.5 | 11 | ||
Internal grinding motor power | kw | ---------- | |||
Workhead motor power | kw | 1.1 | 1.5 | ||
*Machine accuracy | |||||
Roundness | μm | 3 | |||
Cylindricity | μm | 5(500), 8(750) | 8 | ||
Roughness | μm | Ra0.32 | |||
* Machine | |||||
Gross weight | T | 4(500), 4.2(750) | 5.3(1000), 6.1(1500) | ||
Packing dimension(L×W×H) |
| 260×206×205(500) | 338×200×205(1000) | ||
300×206×205(750) | 438×200×205(1500) |
