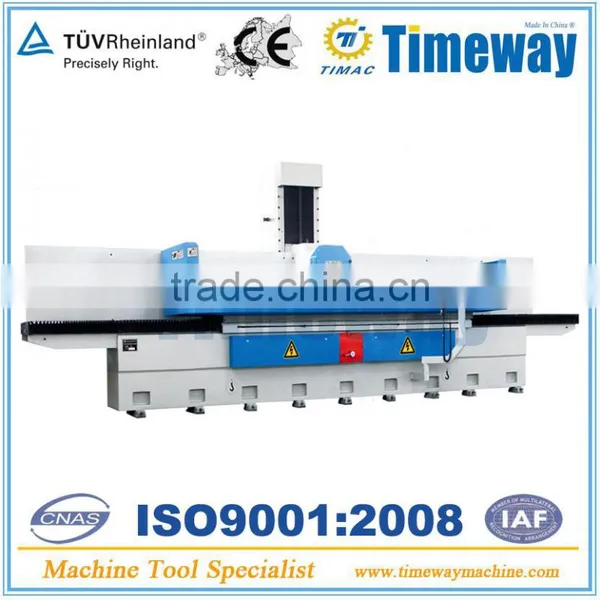

1000mm NC Type Column Moving Large Surface Grinding Machine

1000mm NC Type Column Moving Large Surface Grinding Machine thumbnail-1
1000mm NC Type Column Moving Large Surface Grinding Machine photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Type:
Surface Grinding Machine
CNC or Not:
CNC
Contact Supplier Request Quote Chat Now
Zhengzhou Timeway Machine Tool Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
China port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Surface Grinding Machine
CNC or Not CNC
Max. Grinding Diameter 1000mm
Max. Grinding Length 1600mm, 2200mm, 3000mm, 4000mm, etc
Place of Origin Henan, China
Brand Name TIMAC
Model Number SG100220FR, SG-100250FR, SG-100300FR, SG100400FR
Voltage as requirement
Power(W) 41KW
Weight 19.5T
Certification ISO, CE
After-sales Service Provided Engineers available to service machinery overseas

Specifications

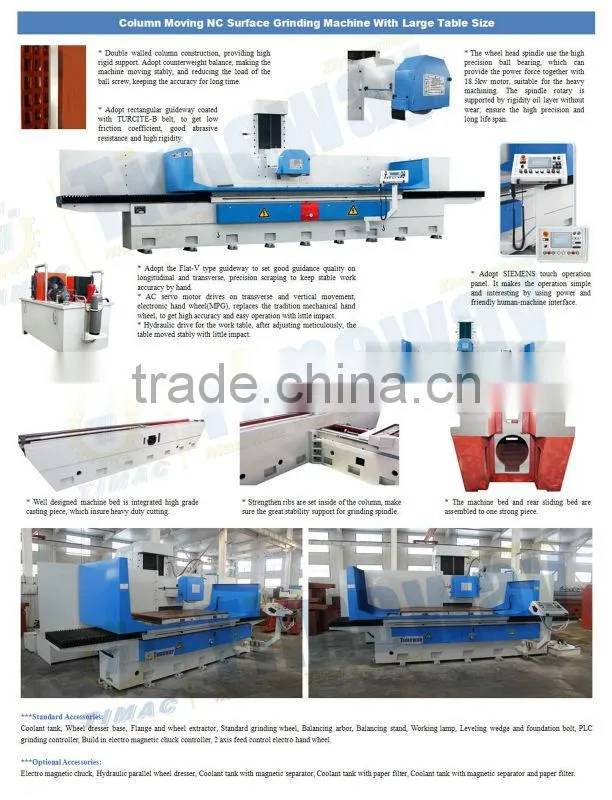

1. Large table size surface grinder
2. High grade casting bed
3. SIEMENS touch panel
4. PLC grinding controller

Features:

1000mm NC Type Column Moving Large Surface Grinding Machine

Specification Unit SG-100220FR SG-100250FR SG-100300FR SG-100400FR
Working Area
Table size (W x L) mm 1000x2200 1000x2500 1000x3000 1000x4000
Max. grinding dimension (W x L) mm 1000x2200 1000x2500 1000x3000 1000x4000
Max. Grinding height mm 670 / 1000(heightening column)
Electro magnetic chuck (optional) mm 1000x1000x2 1000x800x3 1000x1000x3 1000x1000x4
Max. loading capacity ( include chuck) kg 2400 2400 3500 5000
3 axis feed
Table longitudinal movement speed m/min 5~25
Wheel head cross movement Auto. feed mm/t 1~30
Rapid speed m/min 0.05~3
Feed of electro handwheel mm/gr 0.005
Wheel head vertical movement Auto. feed mm/t 0.005~0.05
Rapid speed m/min 0.05~2
Feed of electro handwheel mm/gr 0.005
Grinding wheel
Speed rpm 960
Size (OD x W x ID) mm 500 x 75 x 203
Motor
Spindle motor kw 18.5
Hydraulic pump motor kw 7.5 11
Elevating servo motor and cross feed servo motor kw 3
Total rated power kw 34 38 41
Dimensions and Weight
Floor space (L x W) mm 6000x4300 6100x4300 8200x4300 10000x4300
Gross Weight kg 14000 14500 16000 19500



Standard accessories:

Wheel chuck, wheel balancing arbor, wheel extracting units, coolant tank, work light, tool box & tools, wheel dresser(without diamond pen), standard wheel, leveling wedges and foundation, PLC grinding controller, operation manual(English edition).





Optional accessories:

Electric magnetic chuck, wheel balancing stand, parallel dresser, cooling system with paper filter, cooling system with magnetic separator, cooling system with magnetic separator & paper filter.
