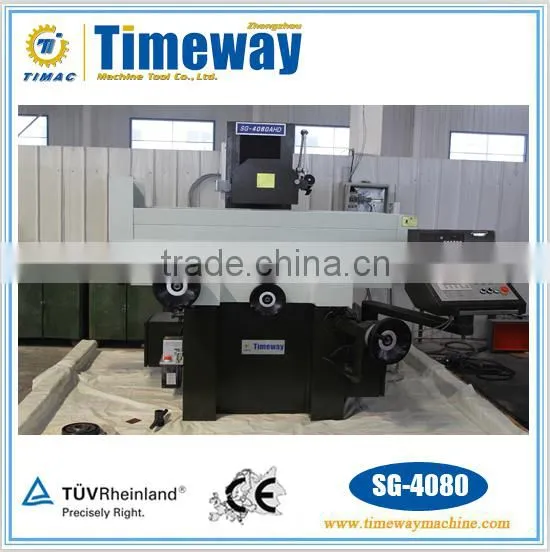

Rectificadora / Saddle Moving Surface Grinding Machine / Surface Grinder

Features:

Slide way:
The slide way with the TF wearable belt, and have been precision manual scraped. Only by this, the machine have high accuracy and smooth moving and long using life.

Spindle Unit:
The high precision spindle unit is well designed and produced. high load resistible, mounted inpre-loaded angular deep-groove ball bearing ensures low-vibration peration, high accuracy, increased lifetime, and low maintenance.

Lead Screw:
The vertical lift lead screw is made in Taiwan, Name: SHYH MINMACHINERY. The Cross feed screw is Ball screw( SG-30~40 series), make sure the smooth moving. AC motor drove the cross screw by timing belt then realize autointermittent feed.

Motor:
The spindle Motor, Y axis drove Motor, and other important parts, Are all made by famous specialty manufacturer, SHVH MIN,Juli, Shuanglin etc.

1)AHD model ( with AUTO down feed)

2)For AHD model, the spindle elevating motor adopt Servo motor made in Japan ( Panasonic), and controlled by Siemens PLC.The operator can set the Auto working (feed rate and times, spark grinding times by the control panel. When finish grinding, the spindle will lift up auto.

3)The wheel guard with micro switch, even the door is opened, the spindle would be power off (only for AHD)

Standard Accessories:

Wheel chuck, Wheel balancing arbor, Wheel extracting units, Coolant tank, Work light, Tool box & tools, Wheel dresser(without diamond pen), Standard wheel, Leveling wedges and foundation, Electric magnetic chuck, PLC auto. grinding controller(only for AHD model), Operation manual(English edtion).

Optional Accessories:

Wheel balancing stand, Parallel dresser, Cooling system with paper filter, Cooling system with magnetic separator, Cooling system with magnetic separator & paper filter

Parameter:

Tips:

AH:  auto feed on transverse, hydraulic transmission on longitudinal, manual on vertical.

AHR: auto feed on transverse, hydraulic transmission on longitudinal, rapid movement on vertical

AHD: auto feed on transverse, hydraulic transmission on longitudinal, auto feed on vertical.
