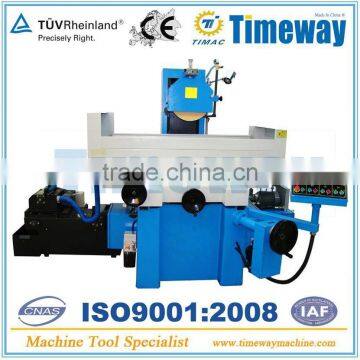

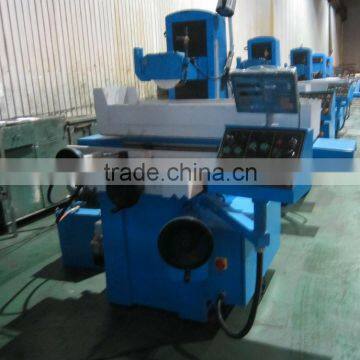

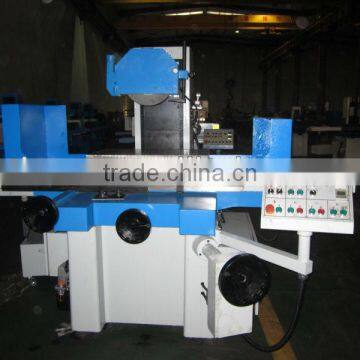

HYDRAULIC SADDLE MOVING SURFACE GRINDING MACHINE



Product Description

 Hydraulic Surface Grinding Machine (Saddle Moving Type) / Precision Surface Grinder

Model:

AH: auto-feed on transverse, hydraulic transmission on longitudinal, manual on vertical;

AHR: auto-feed on transverse, hydraulic transmission on longitudinal, rapid movement on vertical;

AHD:auto-feed on transverse, hydraulic transmission on longitudinal, auto-feed on vertical;

Specification

Unit

SG-2050AH

SG-2550AH

SG-3063AH

SG-30100AH

SG-4080AH

SG-40100AH

SG-2050AHR

SG-2550AHR

SG-3063AHR

SG-30100AHR

SG-4080AHR

SG-40100AHR

SG-2050AHD

SG-2550AHD

SG-3063AHD

SG-30100AHD

SG-4080AHD

SG-40100AHD

Table size (W×L)

mm

200x460

250x500

305x635

305x1020

406x813

406x1020

Longitudinal travel

mm

510

560

765

1130

910

1130

Cross travel

mm

238

275

340

340

450

450

Max. distance from spindle to table

mm

450

450

580

580

580

580

Electro magnetic chuck size

mm

200x460

250x500

300x600

300x1000

400x800

400x1000

Speed of table longitudinal move

m/min

7~23

Table cross movement

Auto feed

mm

0.1~8

Rapid feed

mm/min

990

Handwheel feed

mm/div

0.02

Wheelhead vertical movement

Auto feed

mm

0.005/0.01/0.02/0.03/0.04/0.05 (Only for AHD series)

Rapid feed

mm/min

460 (Only for AHR/AHD series)

Handwheel feed

mm/div

0.005

Grinding wheel

Spindle speed

rpm

50HZ: 2850 / 60HZ: 3450

50HZ: 1450 / 60HZ: 1750

Wheel size

mm

200x 20 x31.75

350x40x127

Spindle motor

kw

1.5

2.2

5.5

Hydraulic pump

kw

0.75

2.2

Cooling pump

kw

0.04

0.125

Elevating motor

kw

0.25 (AHR model) / 0.5 (AHD model, Servo motor)

Cross feed motor

kw

0.04

Total rated power

kw

3

3.7

9

Max. loading capacity (include chuck)

kg

120

180

270

400

500

600

Height of the machine

mm

1675

1890

Floor space (L×W)

mm

2050x1400

2300x1650

2900x2200

4400x2200

3600x2400

4400x2400

Gross weight

kg

1600

1800

2900

3300

3500

4000

Package size (L×W×H)

cm

190x172x218

200x210x218

235x222x215

295x222x221

285x227x218

295x227x221

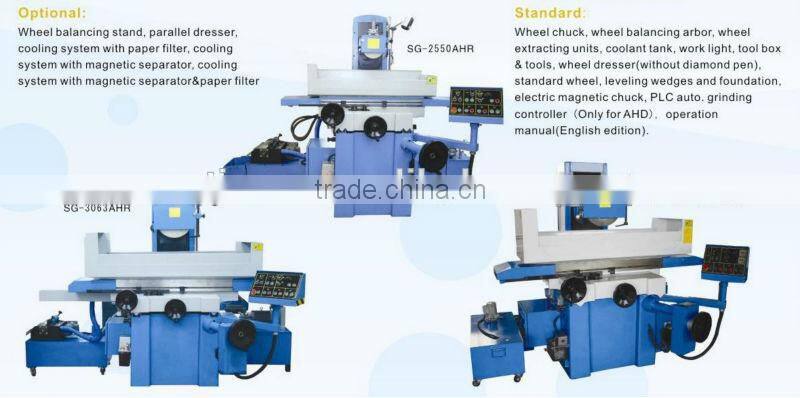

Standard Accessories:

Wheel chuck, Wheel balancing arbor, Wheel extracting units, Coolant tank, Work light, Tool box & tools, Wheel dresser(without diamond pen), Standard wheel, Leveling wedges and foundation, Electric magnetic chuck, PLC auto. grinding controller(only for AHD model), Operation manual(English edtion).



Optional Accessories:
Wheel balancing stand, Parallel dresser, Cooling system with paper filter, Cooling system with magnetic separator, Cooling system with magnetic separator & paper filter.

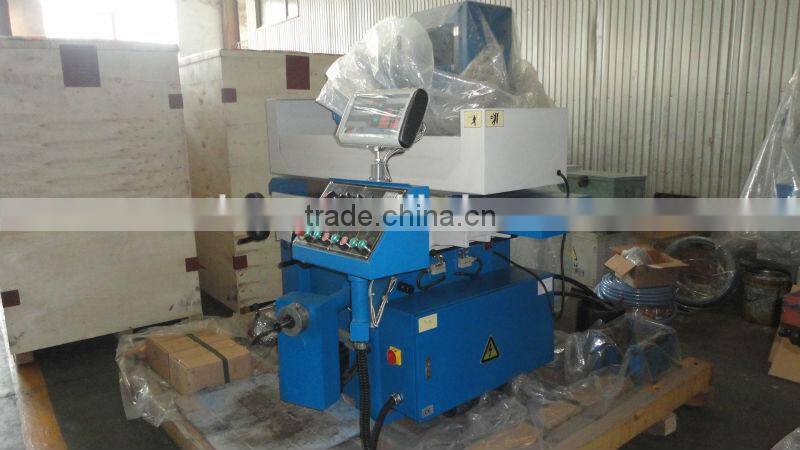

Packaging & Shipping
