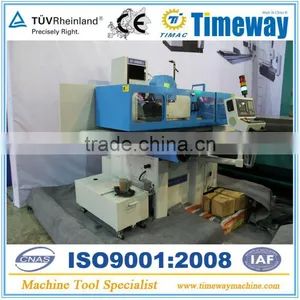

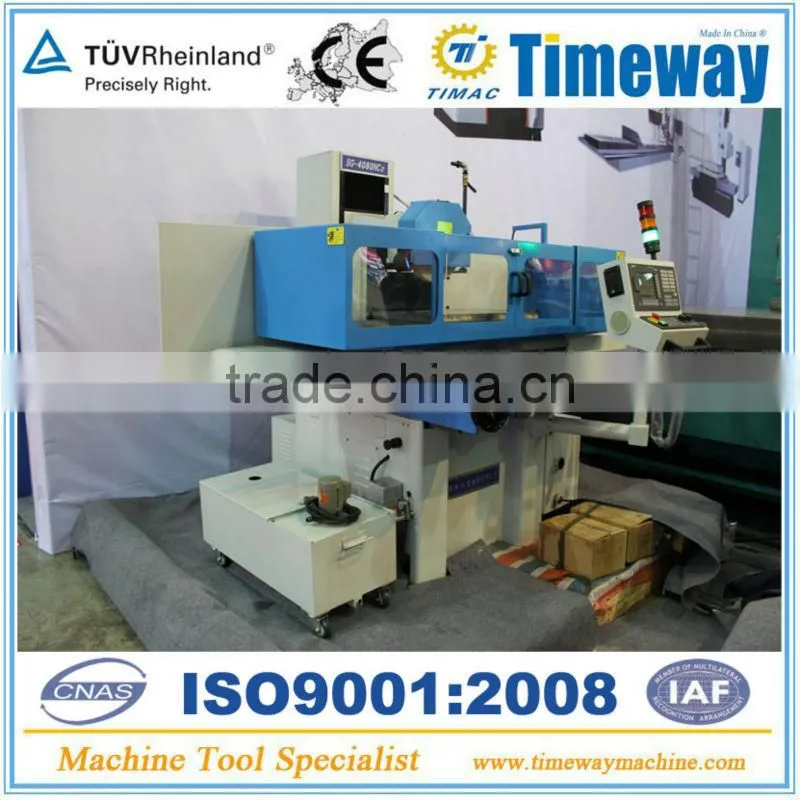

CNC hydraulic saddle moving type surface grinding machine

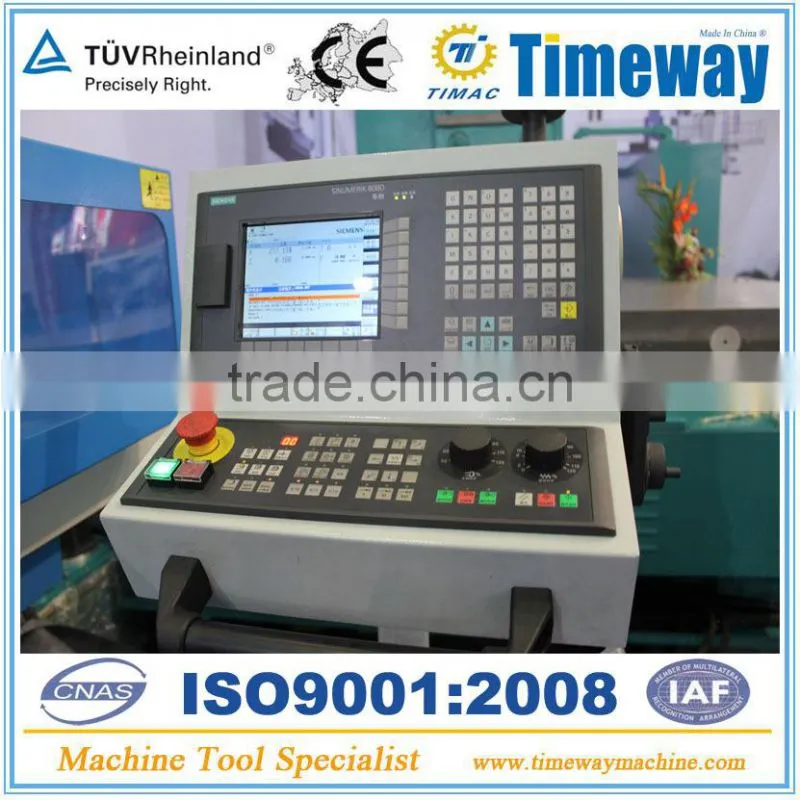

CNC controller make: Siemens SINUMERIK 808D;
CNC2 series : hydraulic for longitudinal direction, CNC for cross and vertical direction;
CNC3 series: CNC for longitudinal, cross and vertical direction.
| Specification | Unit | SG-4080CNC2 | SG-40100CNC2 | |
| SG-4080CNC3 | SG-40100CNC3 | |||
| Table size(W×L) | mm | 406×813 | 406×1020 | |
| Max. longitudinal travel | mm | 910 | 1130 | |
| Max. cross travel | mm | 450 | 450 | |
| Max.distance from spindle center to table surface | mm | 580 | 580 | |
| Electro magnetic chuck size | mm | 400×800 | 400×1000 | |
| Table longitudinal movement | Speed | m/min | 5~25(CNC2 model); 0.02~15(CNC3 model) | |
| Feed of electro hand wheel | mm/div. | 0.005 (CNC3 model) | ||
| Table transverse movement | Auto feed | mm/stroke | 0.1~8 | |
| Rapid speed | mm/min | 0.05~1 | ||
| Feed of handwheel | mm/div. | 0.005 | ||
| Wheelhead vertical movement | Auto feed | mm/stroke | 0.005~0.05 | |
| Rapid speed | mm/min | 0.05~1 | ||
| Feed of handwheel | mm/div. | 0.005 | ||
| Grinding wheel | Speed | rpm | 1450(50Hz), 1750(60Hz) | |
| Size(OD×W×ID) | mm | 350×40×127 | ||
| Spindle motor | kw | 5.5 | ||
| Hydraulic motor | kw | 2.2 (CNC2 model) | ||
| Cooling pump motor | kw | 0.125 | ||
| Parellism of working surface to mounting base | mm | 300:0.005 | ||
| Roughness of working surface | µm | Ra0.63 | ||
| Max.loading capacity of table(include magnetic chuck) | kg | 500 | 600 | |
| Height of machine | mm | 1890 | ||
| Floor space(L×W) | mm | 3600×2400 | 4400×2400 | |
| Gross weight | kg | 3800 | 4300 | |
| Package dimensions(L×W×H) | mm | 2850x2270x2180 | 2950x2270x2150 | |

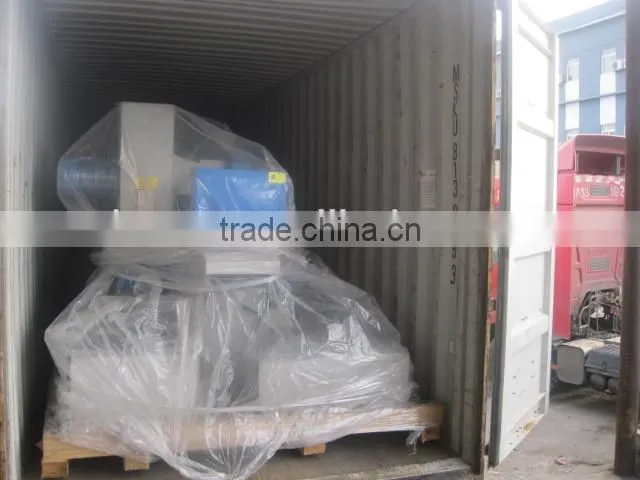

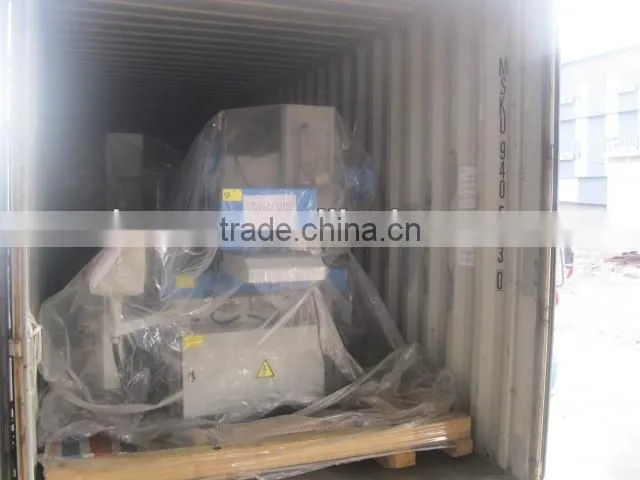

Packaging: Wooden Pallet/Wooden case(fumigated).
Shipping: By sea or By train.
1. Free replacing parts available in the warranty period.
Cost price replacing parts available beyond the warranty period.
2. Quick action and reply for the technical questions at any time in the whole life of the machine.
3. Overseas after service center available in some region.
4. Engineer overseas service available on the requirement of customer(relative cost born by customer).
ISO, CE, TUV, SGS certified company.
1. FOB, CFR, CIF, EXW, FCA price terms is acceptable.
2. T/T, L/C, Western Union payment terms is acceptable.
3. Normal delivery time: 45days, 60days, 75days, 90days....(vary as the machine's different size and complexible)
4. Normal warranty period: 12monthes after delivery.
