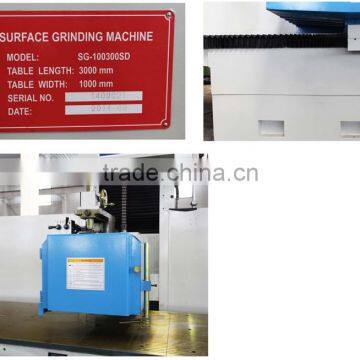

Help CenterBig Size Surface Grinder SG-100300SD
Related Products
-
Hydraulic Surface Grinder SG-40800AHDUS$ 10,985 - 15,565MOQ: 1 Set -
CNC Surface Grinder SG-40800CNC2US$ 22,580 - 26,750MOQ: 1 Set
-
500mm OD Cylindrical Grinding Machine / External and Internal Grinding MachineNegotiableMOQ: 1 Set
-
Universal Cylindrical Grinding Machine UG-200HUS$ 9,000 - 12,580MOQ: 1 Set
-
Precision Die Surface Grinder GS630AUS$ 10,985 - 15,565MOQ: 1 Set
PLC Control Column Moving Surface Grinder
Parameter:
| Specification | Unit | SG-81160FR | SG-81220FR | SG-81300FR | SG-100220SD | SG-10300FR | |
| Working Area | |||||||
| Table size (W × L) | mm | 810×1600 | 810×2200 | 810×3000 | 1000×2200 | 1000×3000 | |
| Max. grinding dimension (W × L) | mm | 810×1600 | 810×2200 | 810×3000 | 1000×2200 | 1000×3000 | |
| Max. spindle to table distance | mm | 900 (1150) | |||||
| Electro magnetic chuck (optional) | mm | 800×800×2 | 800×1000×2 | 800×1000×3 | 1000×1000×2 | 1000×1000×3 | |
| Max. loading capacity ( include chuck) | kg | 2000 | 2400 | 3500 | 3500 | 4500 | |
| 3 axis feed | |||||||
| Table longitudinal movement speed | m/min | 5~25 | |||||
| Wheel head | Auto. feed | mm/t | 1~30 | ||||
| cross movement | Rapid speed | m/min | 0.05~3 | ||||
| Feed of electro handwheel | mm/gr | 0.005 | |||||
| Wheel head | Auto. feed | mm/t | 0.005~0.05 | ||||
| vertical movement | Rapid speed | m/min | 0.05~2 | ||||
| Feed of electro handwheel | mm/gr | 0.005 | |||||
| Grinding wheel | |||||||
| Speed | rpm | 960 | |||||
| Size ( OD × W × ID) | mm | 500×75×305 | 500×75×203 | ||||
| Motor | |||||||
| Spindle motor | kw | 18.5 | |||||
| Hydraulic pump motor | kw | 7.5 | |||||
| Elevating servo motor and cross feed servo motor | kw | 3 | |||||
| Total rated power | kw | 34 | |||||
| Dimensions and Weight | |||||||
| Floor space (L × W) | mm | 4700×4000 | 6000×4000 | 8200×4000 | 6000×4300 | 8200×4300 | |
| Gross Weight | kg | 10500 | 13000 | 14000 | 14000 | 16000 | |
*** Standard accessories:

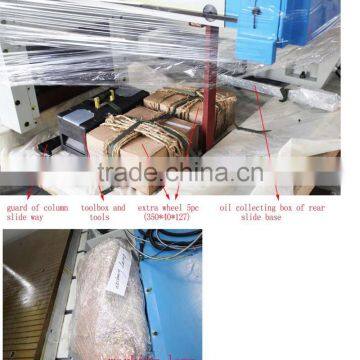

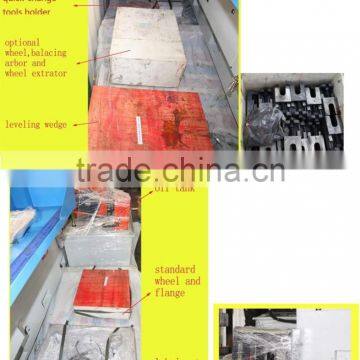

Wheel chuck, wheel balancing arbor, wheel extracting units, coolant tank, work light, tool box & tools, wheel dresser(without diamond pen), standard wheel, leveling wedges and foundation, PLC grinding controller, operation manual(English edition).
*** Optional accessories:

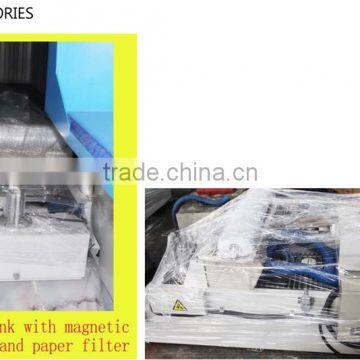

Electric magnetic chuck, wheel balancing stand, parallel dresser, cooling system with paper filter, cooling system with magnetic separator, cooling system with magnetic separator & paper filter

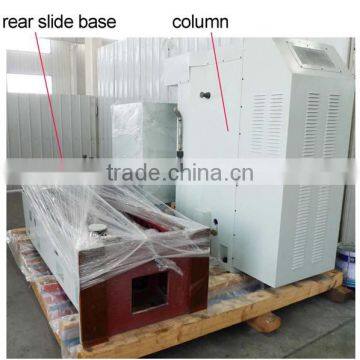

Package: Wooden pallet & plastic cover
Packing size:
Case 01: 8500*2250*1720MM G.W.: 9500KG
Case 02: 2800*2250*1800MM G.W.: 6000KG
Case 03: 1000*2200*1200MM G.W.: 500KG
Container loaded: 1 x 40'GP
