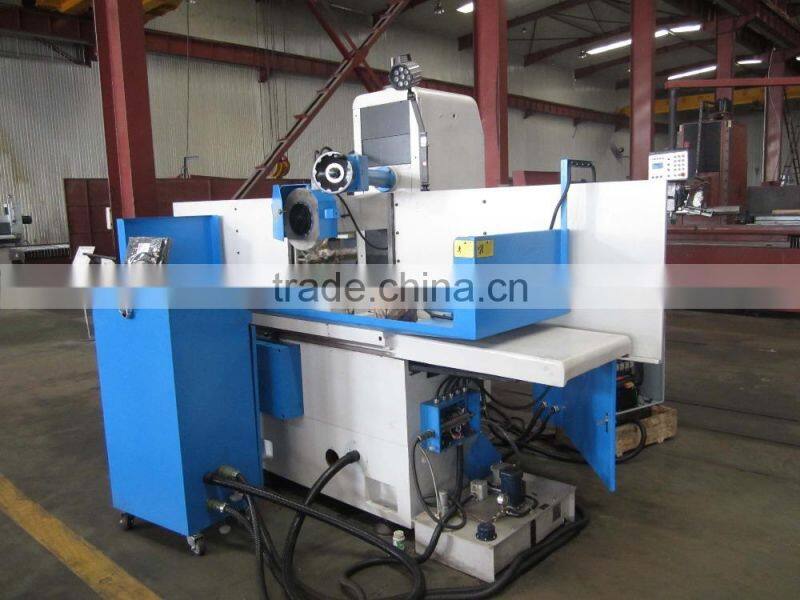

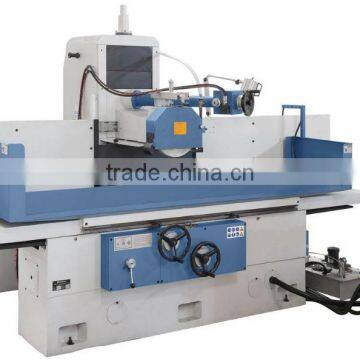

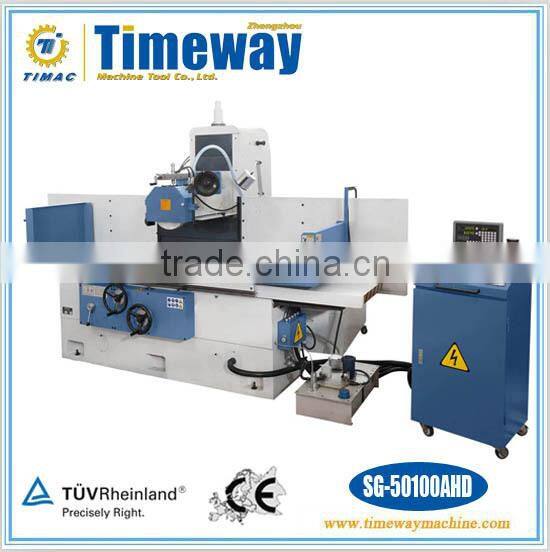

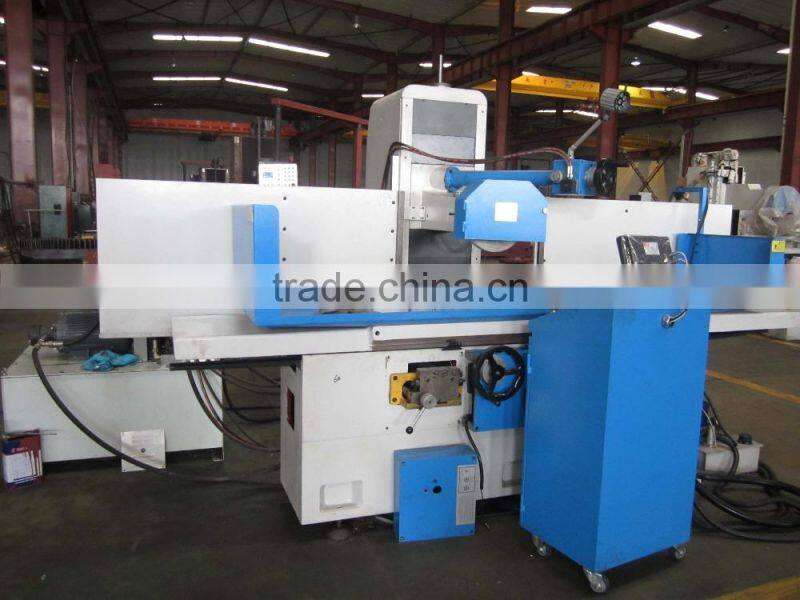

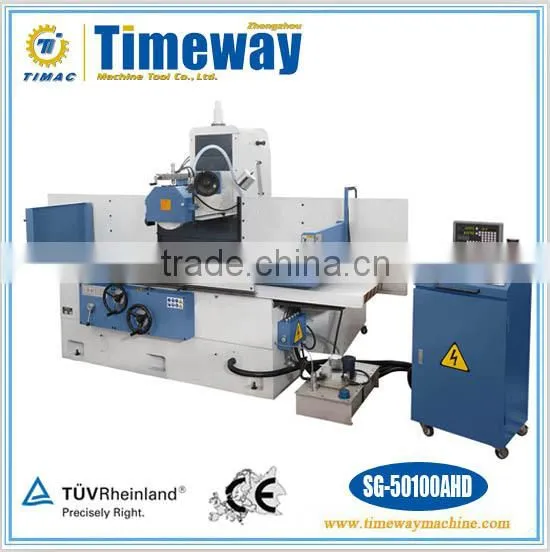

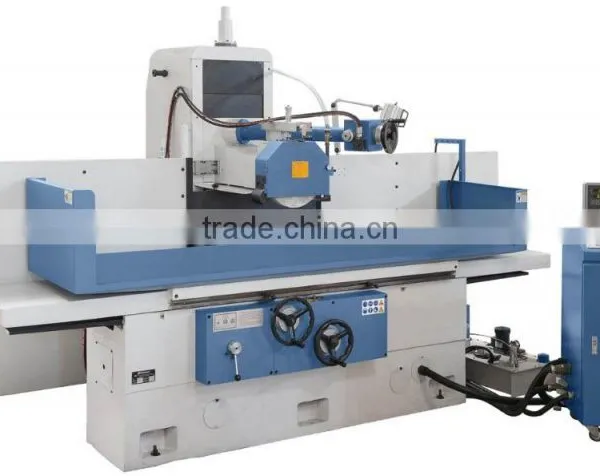

Column Moving Type Surface Grinder SG-50100
Parameter:
| Model | Unit | SG50100AHR | SG50160AHR | SG60120AHR | SG60160AHR | SG60220AHR | |
| SG50100AHD | SG50160AHD | SG60120AHD | SG60160AHR | SG60220AHR | |||
| Table size | mm | 500x1000 | 500x1600 | 610x1200 | 610x1600 | 610x2200 | |
| Max.grinding dimension (WXL) | mm | 500x1000 | 500x1600 | 610x1200 | 610x1600 | 610x2200 | |
| Max.distance from table to spindle center | mm | 600 | |||||
| Magnetic chuck size (optional equipment) | mm | 500x1000x1 | 500x800x2 | 600x1000x1 | 600x800x2 | 600x1000x2 | |
| Speed of table longitudinal movement | m/min | 5~25 | |||||
| Wheelhead cross movement | Auto feed | mm/t | 0.5~20 | ||||
| Rapid speed | m/min | 1.25 | |||||
| Feed of handwheel | mm/div | 0.02 | |||||
| wheelhead vertical movement | Auto feed | mm/t | -/0.005, 0.01, 0.015, 0.02, 0.03, 0.04 (only for AHD model) | ||||
| Rapid speed | m/min | 230 | |||||
| Feed of handwheel | mm/div | 0.002 | |||||
| Wheel | Speed | Rpm | 1450 (50HZ), 1740 (60HZ) | ||||
| Size (ODXWXID) | mm | 355x(20~50)x127 | |||||
| Motor of spindle | kw | 7.5 | |||||
| Max.loading capacity of table (include chuck) | kg | 700 | 880 | 970 | 1230 | 1690 | |
| Total rated power | kw | 12 | 14 | ||||
| Height of machine | mm | 2390 (include the packing base) | |||||
| Floor space (LXW) | mm | 4700x2550 | 7120x2550 | 4740x2750 | 5340x2750 | 6740x2750 | |
| Gross weight | kg | 5500 | 6000 | 6500 | 7000 | 8000 | |
*AHR: auto feed on transverse, hydraulic transmission on longitudinal, rapid movement on vertical.
*AHD: auto feed on transverse, hydraulic transmission on longitudinal, auto feed on vertical.
*** Standard accessories:

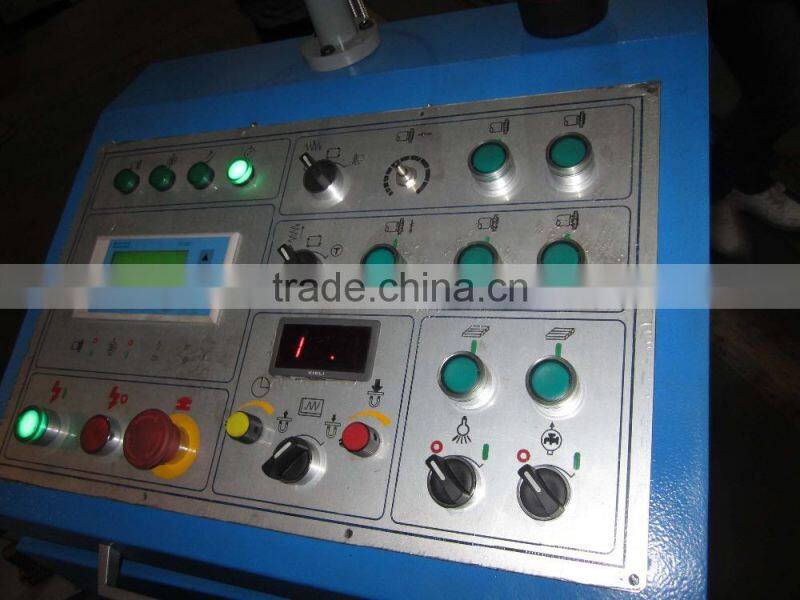

Wheel chuck, wheel balancing arbor, wheel extracting units, coolant tank, work light, tool box & tools, wheel dresser(without diamond pen), standard wheel, leveling wedges and foundation, PLC auto. grinding controller(Only for AHD), operation manual(English edition).
***Optional accessories:
Wheel balancing stand, parallel dresser, cooling system with paper filter, cooling system with magnetic separator,
cooling system with magnetic separator & paper filter, electric magnetic chuck
Package: Wooden pallet & plastic cover
Packing size:
One piece in one case: 4700*2550*2150MM G.W.: 5500KG
