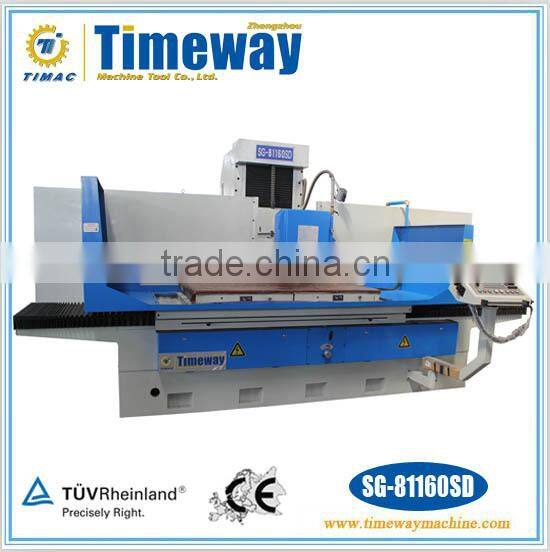

Heavy Duty Surface Grinder SG-81160SD

Heavy Duty Surface Grinder SG-81160SD thumbnail-1
Heavy Duty Surface Grinder SG-81160SD thumbnail-2
Heavy Duty Surface Grinder SG-81160SD thumbnail-3
Heavy Duty Surface Grinder SG-81160SD thumbnail-4
Heavy Duty Surface Grinder SG-81160SD thumbnail-5
Heavy Duty Surface Grinder SG-81160SD thumbnail-6
Heavy Duty Surface Grinder SG-81160SD photo-1
Heavy Duty Surface Grinder SG-81160SD photo-2
Heavy Duty Surface Grinder SG-81160SD photo-3
Heavy Duty Surface Grinder SG-81160SD photo-4
Heavy Duty Surface Grinder SG-81160SD photo-5
Heavy Duty Surface Grinder SG-81160SD photo-6
US$ 41,250 - 46,570 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Surface Grinding Machine
CNC or Not:
Normal
Contact Supplier Request Quote Chat Now
Zhengzhou Timeway Machine Tool Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Surface Grinding Machine
CNC or Not Normal
Max. Grinding Diameter 800mm
Max. Grinding Length 1600mm
Brand Name TIMAC
Model Number SG-81160SD
Voltage As client's request
Power(W) 18.5kw
Dimension(L*W*H) 4700*4000*2700mm
Weight 10500kg
Certification ISO9001; CE certificate
After-sales Service Provided Engineers available to service machinery overseas



Product Description



                        PLC Control Column Moving Surface Grinder



Heavy Duty Surface Grinder SG-81160SD



Parameter:



Specification Unit SG-81160FR  SG-81220FR SG-81300FR SG-100220SD SG-10300FR
 Working Area
 Table size (W × L) mm 810×1600   810×2200 810×3000 1000×2200 1000×3000
 Max. grinding dimension (W × L) mm 810×1600 810×2200 810×3000 1000×2200 1000×3000
 Max. spindle to table distance mm 900 (1150)
 Electro magnetic chuck (optional) mm 800×800×2 800×1000×2 800×1000×3 1000×1000×2 1000×1000×3
 Max. loading capacity ( include chuck) kg 2000 2400 3500 3500 4500
 3 axis feed
 Table longitudinal movement speed m/min 5~25
 Wheel head  Auto. feed mm/t 1~30
 cross movement  Rapid speed m/min 0.05~3
   Feed of electro handwheel mm/gr 0.005
 Wheel head  Auto. feed mm/t 0.005~0.05
vertical movement  Rapid speed m/min 0.05~2
   Feed of electro handwheel mm/gr 0.005
 Grinding wheel
 Speed   rpm 960
 Size ( OD × W × ID) mm 500×75×305 500×75×203
 Motor
 Spindle motor kw 18.5
 Hydraulic pump motor kw 7.5
 Elevating servo motor and cross feed servo motor kw 3
 Total rated power kw 34
 Dimensions and Weight
 Floor space (L × W) mm 4700×4000 6000×4000 8200×4000 6000×4300 8200×4300
 Gross Weight kg 10500 13000 14000 14000 16000

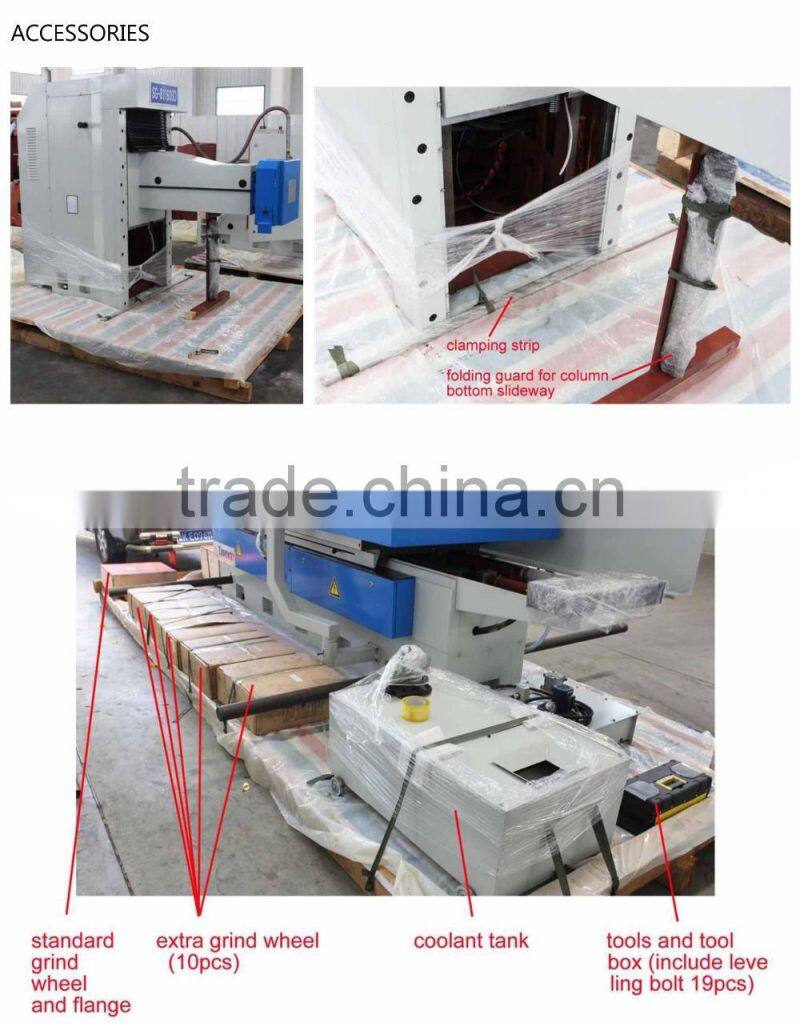

*** Standard accessories:

Wheel chuck, wheel balancing arbor, wheel extracting units, coolant tank, work light, tool box & tools, wheel dresser(without diamond pen), standard wheel, leveling wedges and foundation, PLC grinding controller, operation manual(English edition).



*** Optional accessories:

Electric magnetic chuck, wheel balancing stand, parallel dresser, cooling system with paper filter, cooling system with magnetic separator, cooling system with magnetic separator & paper filter



Detailed Images

            Heavy Duty Surface Grinder SG-81160SD





            Heavy Duty Surface Grinder SG-81160SD



             Heavy Duty Surface Grinder SG-81160SD



             Heavy Duty Surface Grinder SG-81160SD



            Heavy Duty Surface Grinder SG-81160SD

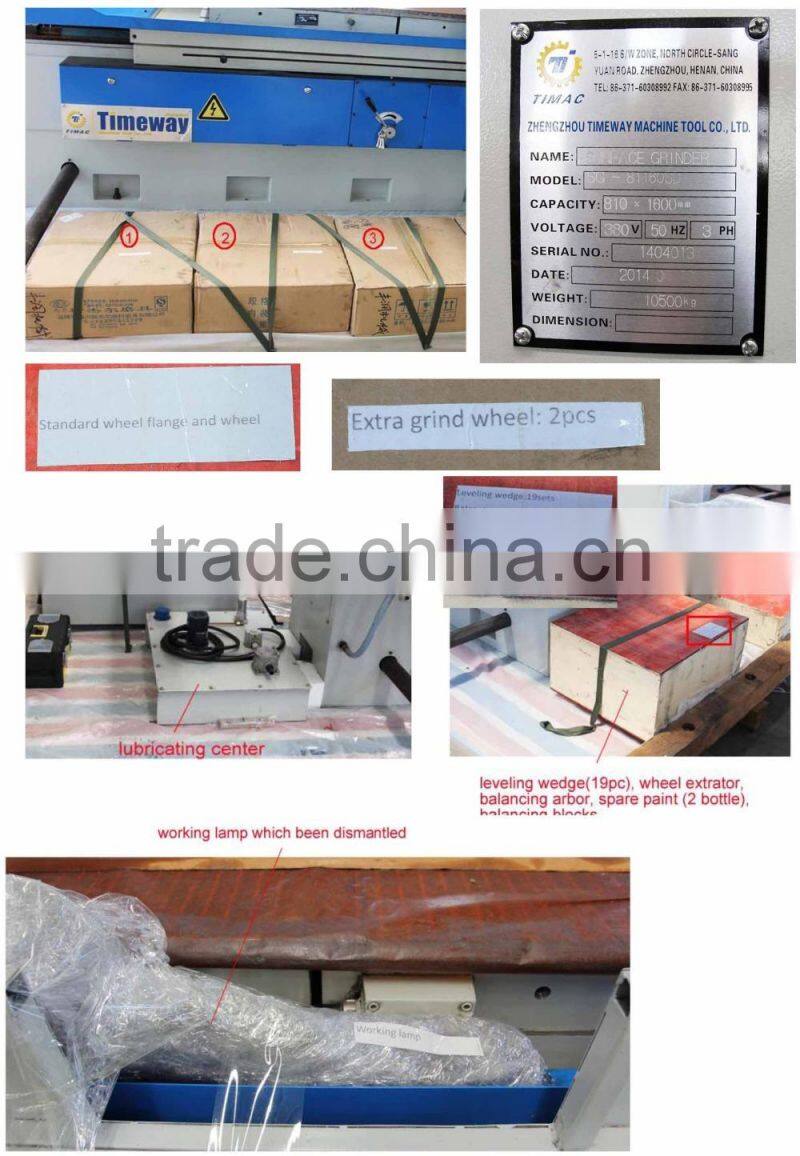

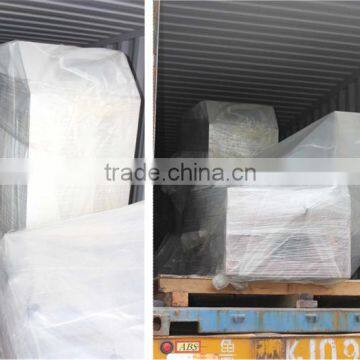

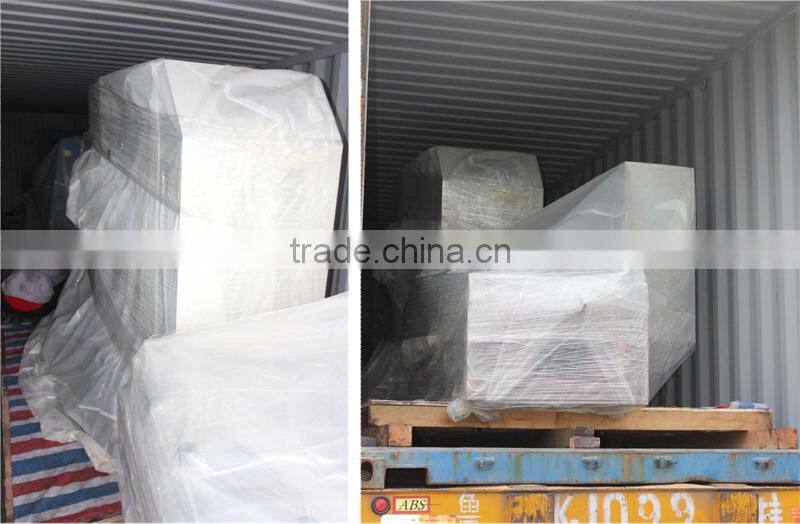

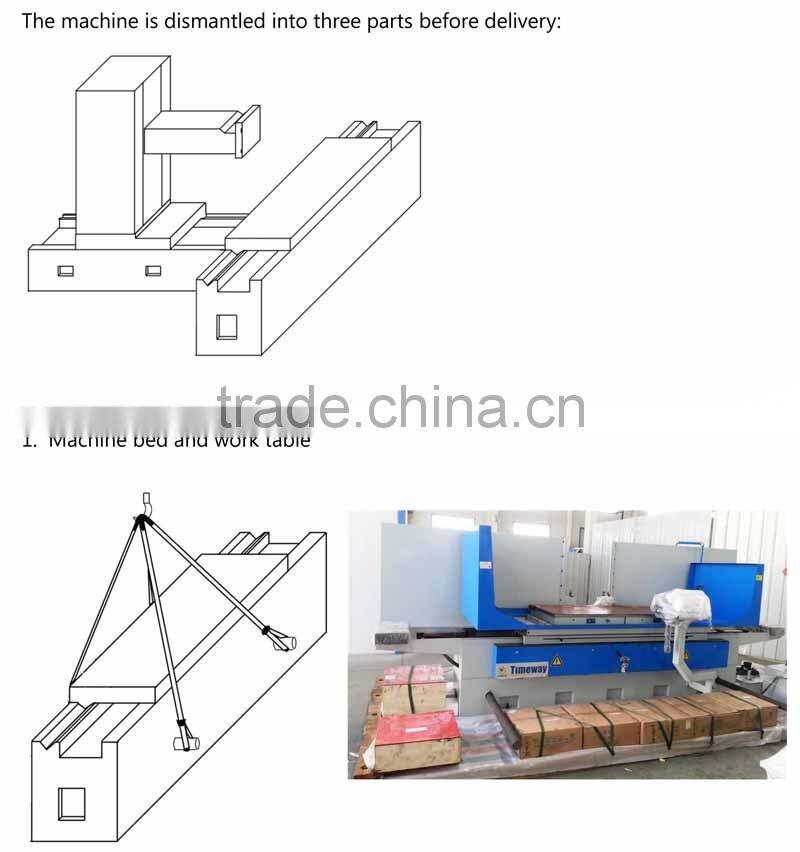

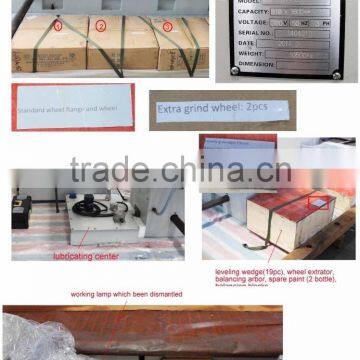

Packaging & Shipping



                        Heavy Duty Surface Grinder SG-81160SD



                          Heavy Duty Surface Grinder SG-81160SD

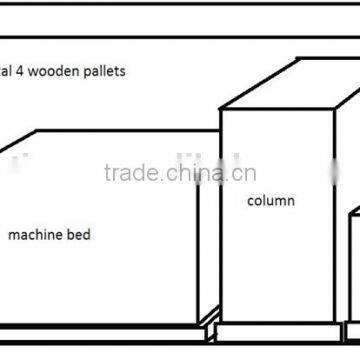

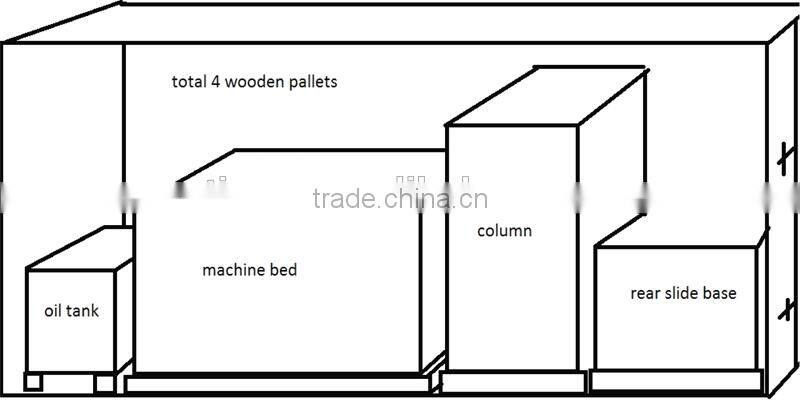

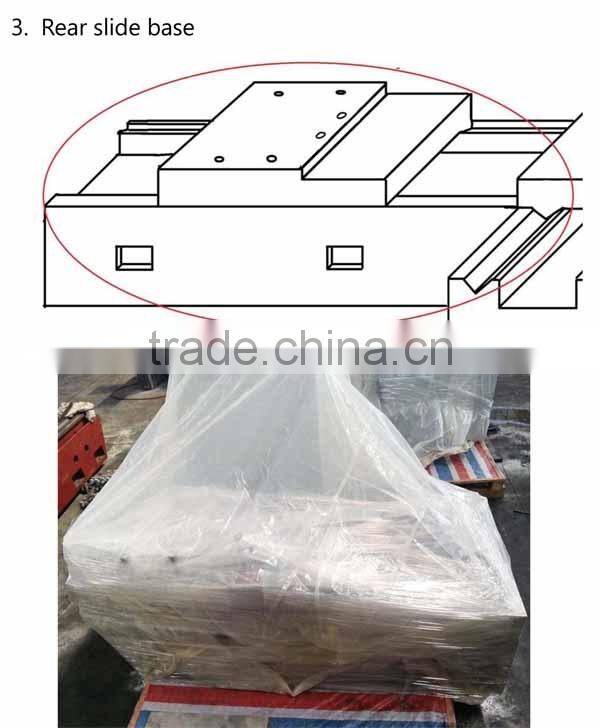

Package:  Wooden pallet & plastic cover



Packing size:

                        Case 01: 5000*2200*1720MM               G.W.: 5500KG

                        Case 02: 2400*2000*1800MM               G.W.: 3500KG

                        Case 03: 2300*2000*1500MM               G.W.: 2000KG

Container loaded: 1 x 40'GP
