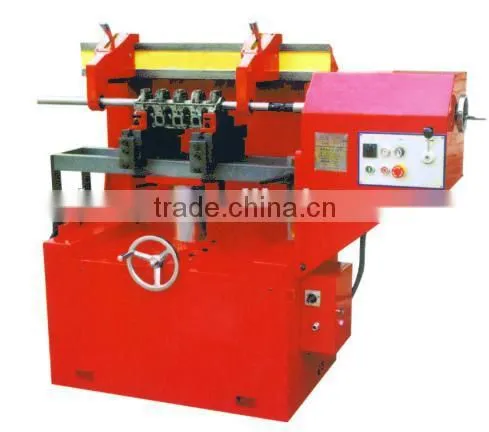

LINE BORING MACHINE FOR CYLINDER HEADS AND BLOCKS
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Brand Name:
TIMEWAY
Model Number:
T8108
Payment & Shipping
Payment Methods:
Port of Shipment:
China port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
VERTICAL HONING MACHINE THM170NegotiableMOQ: 1 Set -
DM-280 Model Automobile Brake Shoe Grinding MachineUS$ 1,000 - 7,000MOQ: 1 Set
-
BRAKE DRUM LATHE/ DISC CUTTING MACHINEUS$ 2,000 - 3,500MOQ: 1 Set
-
T8445A BRAKE DRUM LATHE/ DISC CUTTING MACHINEUS$ 2,000 - 3,500MOQ: 1 Set
-
T170S Engine Rebuilding Vertical Boring MachineNegotiableMOQ: 1 Set
Condition
New
Brand Name
TIMEWAY
Model Number
T8108
Dimension(L*W*H)
1620x700x1370mm
Weight
600kg
After-sales Service Provided
Engineers available to service machinery overseas
1. Though it has been specially designed for reconditioning the seat of cylinder head camshafts with through of blind axis.
2 It can also be used for reconditioning the seat of cylinder block crankshafts in cars and light-weight trucks.
3. The machine is sturdy, compact and allows accurate machining.
Specification |
T8108 |
Boring range |
Φ24-Φ85 mm |
Max.travel of shaft |
100 mm |
Max.boring length |
Φ20 x 900 mm |
Φ32 x 980 mm | |
Main shaft rotating speed |
245, 380 rpm |
Boring shaft feed |
Stepless |
Distance between cylinder fixture and boring shaft center |
45-295mm |
Motor power |
0.55/0.75 Kw |
Overall dimensions ( L×W×H) |
1620×700×1370 mm |
Packing dimensions (L×W×H) |
1740×920×1700 mm |
N.W./G.W. |
600/750 kg |
