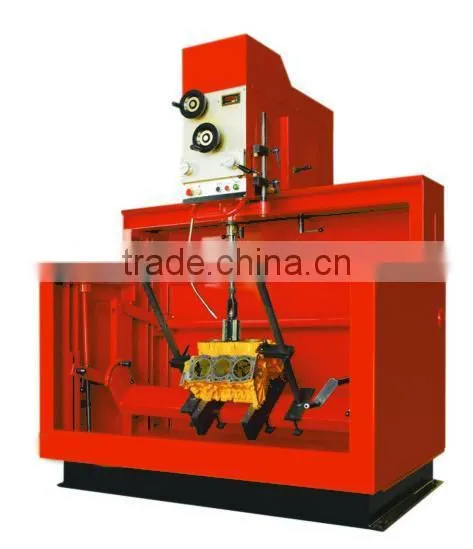

VERTICAL HONING MACHINE THM170

Name: VERTICAL HONING MACHINE THM170
Brand: TIMEWAY
SKU: 140797262
Availability: InStock

Zhengzhou Timeway Machine Tool Co., Ltd.

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Brand Name:

TIMEWAY

Model Number:

THM170

Payment & Shipping

Payment Methods:

Port of Shipment:

China port

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Brand Name TIMEWAY

Model Number THM170

Dimension(L*W*H) 1820x1440x2170mm

Weight 1200kg

After-sales Service Provided Engineers available to service machinery overseas

The block supporting base is adjustable in the height and inclination to allow the assembling of flat and "V"blocks.
Honing spindle with steplessly variable rotation speed visualized on the control panel.
Short-stroke honing can be easily realized at any position within the travel of spindle to conveniently revise the workpiece.
Diameter of the honing head can be optionally changed during honing
The spindle box is provided with pneumatic system for its convenient and flexible movement and easy centering.
Frame type worktable can realize up-down motion and rotation as well as the machining of V-shaped block and any other complicated workpiece even without the special fixture.

Specification	Unit	THM170
Max. diameter of the hole honed	mm	170
Max. depth of the hole honed	mm	360
Spindle speed(stepless)	r.p.m	100-300
Roundness	mm	0.0025
Cylindricity	mm	0.005
Surface roughness		Ra0.2
Table longitudinal travel	mm	1100
Table cross travel	mm	80
Table max. loading	kg	200
Main motor	kw	1.1
Hydraulic station motor	kw	1.5
Coolant pump motor	w	90
Spindle reciprocation speed(stepless)	m/min	0-18
Overall dimensions(L x W x H)	mm	1820x1440x2170
Packing dimensions(L x W x H)	mm	2210x1610x2270
N.W/G.W	kg	1200/1400
