Specifications
1. Brake drum lathe;2. Car brake lathe;
3. Drum dia. 180-650mm;
4. Disc dia. 0-500mm;
5. Three spindle speed 25,40,70

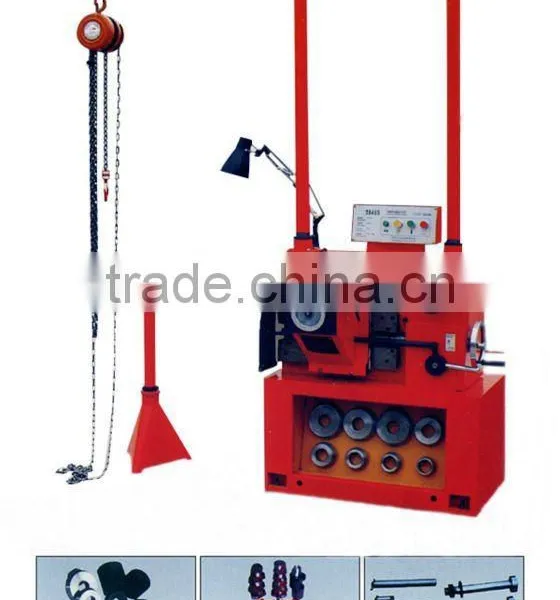

Brake Drum Lathe / Disc Brake Cutting Lathe
Features:
1. Brake drum lathe T8465 is a kind of lathe. It can fulfill the reparation of the brake drum, disc and shoe of automobiles from minicar to medium trucks.
2. The brake drum/shoe can be cut on the first Spindle and the brake disc can be cut on the second Spindle.
3. This lathe has higher rigidity, accurate workpiece positioning and is easy to operate.
4. If you adopt this brake drum lathe, there is no doubt for your enterprise to set up higher reputation due to better process quality and lower your process cost.
Specification |
Unit |
T8465 |
Drum dia. capacity |
mm |
180-650mm |
Disc dia. capacity |
mm |
0-500 |
Spindle speed (three grades) |
r/min |
25, 40, 70 |
Tool post Travel |
mm |
250 |
Feed Rate |
mm/r |
0.16 |
Motor |
kw |
1.1/1400 |
Power Requirement |
380V/ 50HZ/ 3phases/3A |
|
Dimension(not includle crane and outboard supporter) | ||
Length |
mm |
800 |
Width |
mm |
875 |
Height |
mm |
940 |
Net Weight |
kg |
580 |
