Specifications
Cylinder boring machine;1. Boring cylinder blocks & cylinder heads;
2. Boring dia. 30~180;
3. Boring depth 450m 650mm;

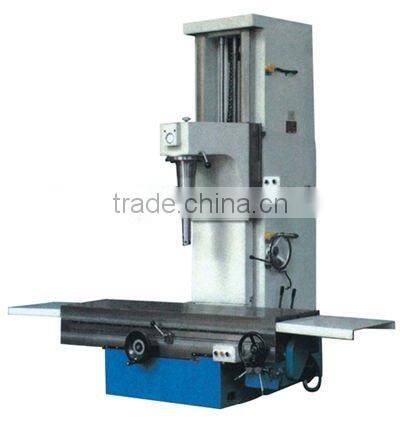

Vertical Cylinder Boring Machine (T-8018A & T-8018B & T-8018C )
Feature:
The machine is mainly used for boring the cylinder hole of internal combustion engine and
the inner hole of cylinder sleeve of cars or tractors, and also for other machine element hole.
Parameter:
Specifications |
Unit |
T8018A |
T8018B |
T8018C |
Range of boring diameter |
mm |
φ30-φ180 |
φ42-φ180 |
|
Max. boring depth |
mm |
450 |
650 |
|
The rotational speed of spindle |
r/min |
140-610 |
175,230,300,350,460,600 |
175,230,300,350,460,600 |
Spindle feed |
mm |
0.05, 0.10, 0.20 |
0.05, 0.10, 0.20 |
|
Spindle travel |
mm/r |
500 |
800 |
|
The high rising speed of spindle |
m/min |
2.65 |
2.65 |
|
The distance from the central line of the spindle to the body |
mm |
320 |
315 |
|
Table size |
mm |
1200x500 |
1680x450 |
|
Table travel - crosswise |
mm |
100 |
150 |
|
Table travel - legthwise |
mm |
800 |
1500 |
|
Rapid travel of guide slide |
mm/min |
2800 |
2800 |
|
Rapid travel of table |
mm/min |
- |
1400 |
|
Main motor power |
kw |
3 |
2.4/3 |
2.4/3 |
Motor for quick-moving |
kw |
0.75 |
0.75 |
|
Overall dimension(LxWxH) |
mm |
200x1235x1920 |
2680x1500x2325 |
|
Packing dimension(LxWxH) |
mm |
1400x1400x2250 |
1578x1910x2575 |
|
N.W./G.W. |
kg |
200/2200 |
3500x3700 |
|
T8018A: Mechanical-electronic drive and spindle speed frequence changed speed variation.
T8018B: Mechanical drive
T8018C: Used for processing special heavy motor cylinders.
