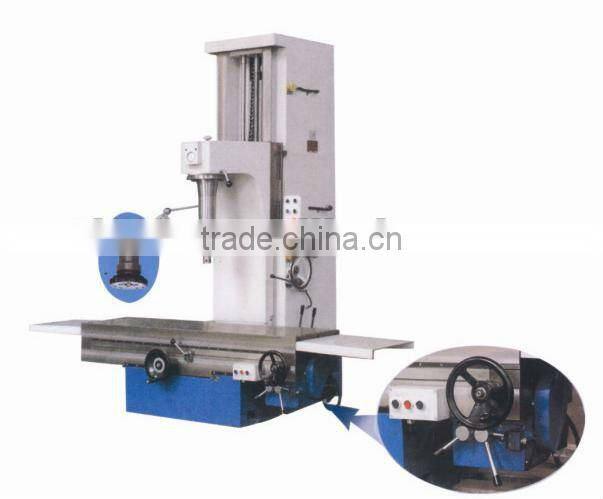

Vertical Cylinder Boring Machine T8018A, T8018B, T8018C

Name: Vertical Cylinder Boring Machine T8018A, T8018B, T8018C
Brand: TIMAC
SKU: 140797166
Availability: InStock

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Henan, China

Brand Name:

TIMAC

Model Number:

T8018A, T8018B, T8018C

Zhengzhou Timeway Machine Tool Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

China Port

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Henan, China

Brand Name TIMAC

Model Number T8018A, T8018B, T8018C

Condition New

Specifications

1. Cylinder boring machine;
2. Boring cylinder blocks & cylinder heads;
3. Boring dia. 30~180;
4. Boring depth 450m 650mm;

CYLINDER BORING MACHINE

Specifications	Unit	T8018A	T8018B	T8018C
Range of boring diameter	mm	φ30-φ180		φ42-φ180
Max. boring depth	mm	450		650
The rotational speed of spindle	r/min	140-610	175,230,300,350,460,600	175,230,300,350,460,600
Spindle feed	mm	0.05, 0.10, 0.20		0.05, 0.10, 0.20
Spindle travel	mm/r	500		800
The high rising speed of spindle	m/min	2.65		2.65
The distance from the central line of the spindle to the body	mm	320		315
Table size	mm	1200x500		1680x450
Table travel - crosswise	mm	100		150
Table travel - legthwise	mm	800		1500
Rapid travel of guide slide	mm/min	2800		2800
Rapid travel of table	mm/min	-		1400
Main motor power	kw	3	2.4/3	2.4/3
Motor for quick-moving	kw	0.75		0.75
Overall dimension(LxWxH)	mm	200x1235x1920		2680x1500x2325
Packing dimension(LxWxH)	mm	1400x1400x2250		1578x1910x2575
N.W./G.W.	kg	200/2200		3500x3700
