Home > Manufacturing & Processing Machinery > Machine Tools > Boring Machine > Vertical Boring Machine T716A,T7220B,T7220C

Vertical Boring Machine T716A,T7220B,T7220C

Name: Vertical Boring Machine T716A,T7220B,T7220C
Brand: TIMAC
SKU: 140797144
Availability: InStock

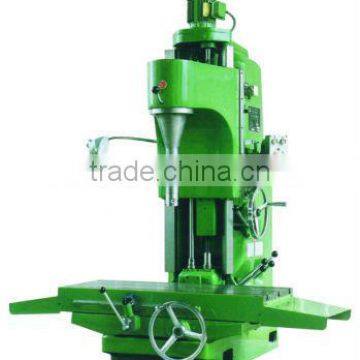

Vertical Boring Machine T716A,T7220B,T7220C thumbnail-1

Vertical Boring Machine T716A,T7220B,T7220C photo-1

Negotiable MOQ: 2 Sets (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Condition:

New

CNC or Not:

Normal

Place of Origin:

Henan, China

Contact Supplier Request Quote Chat Now

Zhengzhou Timeway Machine Tool Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

China port.

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

CNC or Not Normal

Place of Origin Henan, China

Brand Name TIMAC

Model Number T716A,T7220B,T7220C

Specifications

Boring diameter 160, 200mm

Specification	Unit	T716A	T7220B	T7220C
Max. boring diameter	mm	Φ160	Φ200	Φ200
Max. boring depth	mm	410	500	500
Milling cutter head diamenter	mm	-	-	250
Max. milling area (L×W)	mm	-	-	850×250
Spindle speed range	r/min	190-600	53-840	53-840
Spindle feed range	mm/r	0.05-0.20	0.05-0.20	0.05-0.20
Spindle travel	mm	550	710	710
Distance from spindle axis to carriage vertical plane	mm	310	315	315
Table longitudinal travel	mm	700	900	1100
Table longitudinal feed speed	mm/min	-	-	54,108
Table longitudinal quick move speed	mm/min	-	-	1500
Table cross travel	mm		100	100
Boring dimension accuracy		IT7	IT7	IT7
Milling dimension accuracy		-	-	IT8
Roundness		0.005	0.005	0.005
Cylindricity		0.02/300	0.01/300	0.01/300
Boring surface roughness		Ra1.6	Ra1.6	Ra1.6
Milling surface roughness		-	-	Ra1.6-3.2
Overall dimensions (L×W×H)	mm	1845x1712x2225	2210x1600x2340	2610×1600×2350
Packing dimensions (L×W×H)	mm	1460x1890x2190	1850x1840x2230	1850×1840×2230
N.W./G.W.	kg	2800/3000	3300/3800	3600/4000

Features:

1. The T716A is mainly used for fine boring holes of cylinder and sleeve for various engines and other sccurate holes.

2. The T7220B vertical boring machine is mainly used to bore high accurate holes of cylinder body and engine sleeve and other accurate holes.

3. The T7220C is mainly used for fine boring high accurate holes of cylinder body and engine sleeve, also for other accurate holes, it's can used for milling surface of cylinder. The machine can be used to boring, milling, drilling, reaming.
