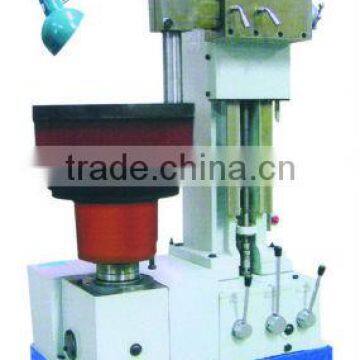

Help CenterBrake Drum Boring Machine T8360A,T8360B,T8365
Related Products
-
TD60 Air Floating Gas Valve Seat Boring MachineUS$ 14,000 - 18,000MOQ: 1 Set -
Vertical Cylinder Honing Machine 3MB9808US$ 1,000 - 9,990MOQ: 1 Set
-
Postpositive Multifunction Engine CradleUS$ 600 - 800MOQ: 10 Sets
-
Crankshaft Straightening MachineUS$ 900 - 1,200MOQ: 5 Sets
-
Cylinder Block Surface Grinding MachineUS$ 5,000 - 10,000MOQ: 1 Set
Specifications
1. Brake drum boring machine;2. Range of processing diameter:180-650mm.
Specification |
T8360A/T8360B |
T8365A |
Range of processing diameter |
180-600mm |
350-650mm |
Rotating speed of workpiece |
27,45.70r/min |
30,45r/min |
Working travel of slideboard |
450mm |
450mm |
Feed range |
0.4- 0.07mm/r (4 steps) |
0.4- 0.07mm/r (4 steps) |
Motor |
1.1kw |
0.85/1.1kw |
Overall dimensions (LxWxH) |
940×850×1415mm |
930×600×1410mm |
Packing dimensions (LxWxH) |
1150×950×1580mm |
1200×1050×1650mm |
Weight |
800/900kg |
900kg/1000kg |
Features:
1. The Brake Drum Boring Machine is suitable for processing the brake drum, brake shoe and brake plate of various domestic and foreign cars and sedans.
2. Have the advantages of beautiful shape, rational structure, easy operating, good rigidity, high cutting speed, safe, reliability and multipurpose.
3. The T8365A is better suitable for repairing/boring the brake drum and brake piece of large-or-medium-sized vehicle .
4. In the accessories of T8365A , there are universal hub-heads, coupling plates and locating plates to assist the brake drum in position leaning on the retaining ledge, and the brake drum also can be bored depending on the hub-head in the brake drum.
