ZNC EDM SINKER MACHINE

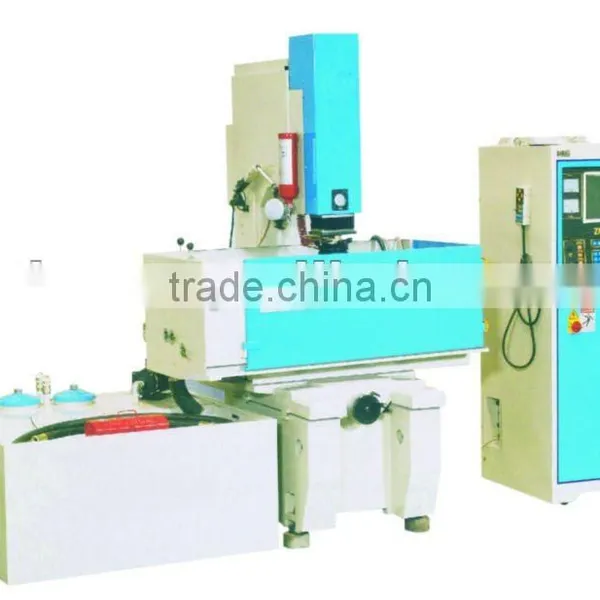

Name: ZNC EDM SINKER MACHINE
Brand: TIMAC
SKU: 140797058
Availability: InStock

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

CNC or Not:

CNC

Brand Name:

TIMAC

Zhengzhou Timeway Machine Tool Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

China port

Delivery Detail:

Delivery time depends on order quantity.

Condition New

CNC or Not CNC

Brand Name TIMAC

Model Number EDM350, EDM450, EDM540, EDM650

Specifications

ZNC EDM Sinker
Adopt Japan SANYO AC servo motor
Good machine structure, high rigidity, high precision, adopt V slide design

ZNC EDM Sinker

* Adopt Japan SANYO AC servo motor

* Steady safety device, optional sensors, auto answer, fire extinguisher and auto power cut off.

* Good machine structure, high rigidity, high precision, adopt V slide design

* Adopt HT300 ageing treatment castion, keep precision long time

* Adopt high quality imported oil pump

Model	Unit	EDM640CNC	EDM850CNC	EDM1060CNC	EDM1670CNC	EDM350	EDM450	EDM540	EDM650
Work table size	mm	900x600	900x600	1100x700	1700x1000	600x350	500x400	800x500	1100x650
Left and right travel	mm	600	800	1000	1600	350	450	500	650
Back and forth travel	mm	400	500	600	800	250	350	400	550
Z spindle travel	mm	350	370	500	550	180+(180)	200+(200)	200+(300)	300+(300)
Max. distance between electrode and working table	mm	770	770	1000	1150	560	660	830	950
Size of oil hold reservoir	mm	1650x950x550	1850x950x550	1900x1100x600	2500x1500x700	880x560x350	1180x660x450	1200x740x480	1760x960x560
Spindle hold weight	kg	130	130	300	400	50	70	150	250
Work table load weight	kg	2500	2500	3500	6000	300	600	1300	2800
Machine weight	kg	3400	3500	5500	9000	1200	1500	2200	3500
