Medium Speed Wire Cut EDM DK-250
Feature:
* The cast of machine body adopt the resin-sand technology with the influence of high temperature annealing.
* The travel parts of the machine adopt high quality ball screw and linear guide way.
* The structure of wire frame adopt the symmetric structure for the up and down frame
* The cast of machine body adopt the resin-sand technology with the influence of high temperature annealing.
* The travel parts of the machine adopt high quality ball screw and linear guide way.
* The structure of wire frame adopt the symmetric structure for the up and down frame to keep the tension of moly-wire within the scope of normal tension.
* Data exchange and remote control is realizable under the powerful network function of XP system.
* The system has the function of pitch correct, which can improve the position accuracy effectively.
* The wire moving is controlled by transducer, which adopts unlimited adjustment.
* The processing components involve godet mechanism, the best roughness Ra=1.5μm.
* The cooling system is equipped with a large water tank with three levels filtration.
Parameter:
| Specification | Unit | DK-250 | DK-320 | DK-400 | DK-500 | DK-630 | DK-700 | DK-800 |
| Work table travel | mm | 250x320 | 320x400 | 400x500 | 500x630 | 630x800 | 700x1000 | 800x1000 |
| Work table size | mm | 380x525 | 415x635 | 500x785 | 600x900 | 660x1100 | 760x1400 | 820x1400 |
| Cutting depth (optional) | mm | 300/500 | 300/500 | 500 | 500 | 500/800 | 500/800 | 500/800 |
| Taper (optional) | 0° /6° /30° /60° | |||||||
| Roughness | μm | Ra(once cutting)≤2.5, Ra(Multi-cutting)≤1,5 | ||||||
| Precision | mm | ≤0.015 | ||||||
| Screw & guideway (optional) | Precision ball screw , precision steel plated/linear guideway | High quality ball screw, Steel linear guideway | ||||||
| Load of table | kg | 300 | 400 | 500 | 800 | 3000 | 5000 | 5000 |
| Machine weight | kg | 1600 | 1700 | 2000 | 2300 | 4500 | 6000 | 6700 |
Machine model
| Item | A | B | C | D | E | F | G | H | I | |
| Max. workpiece thickness(mm) | 300 | 500 | 300 | 500 | 300 | 500 | 300 | 500 | 1000 | |
| Max. taper angle (within 100mm thick) | 0° | 0° | ±3° | ±3° | ±30° | ±30° | ±15° | ±15° | ±3° | |

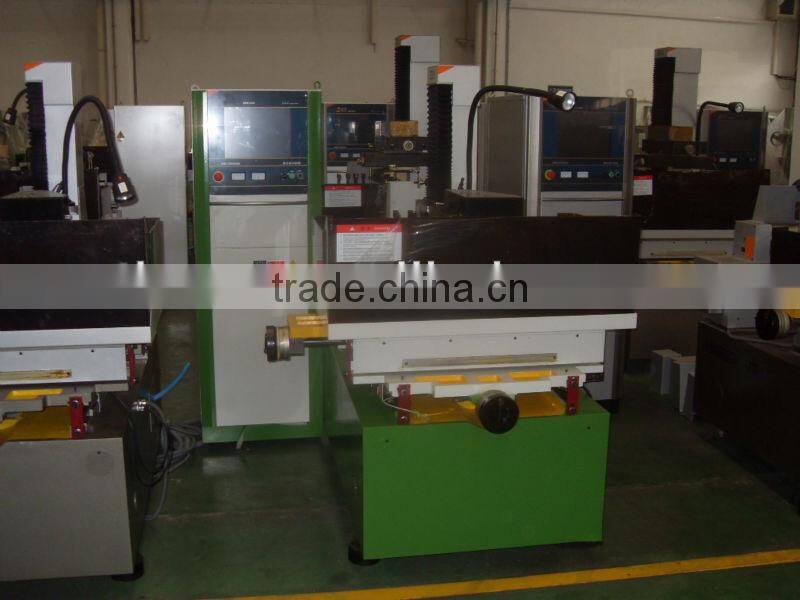

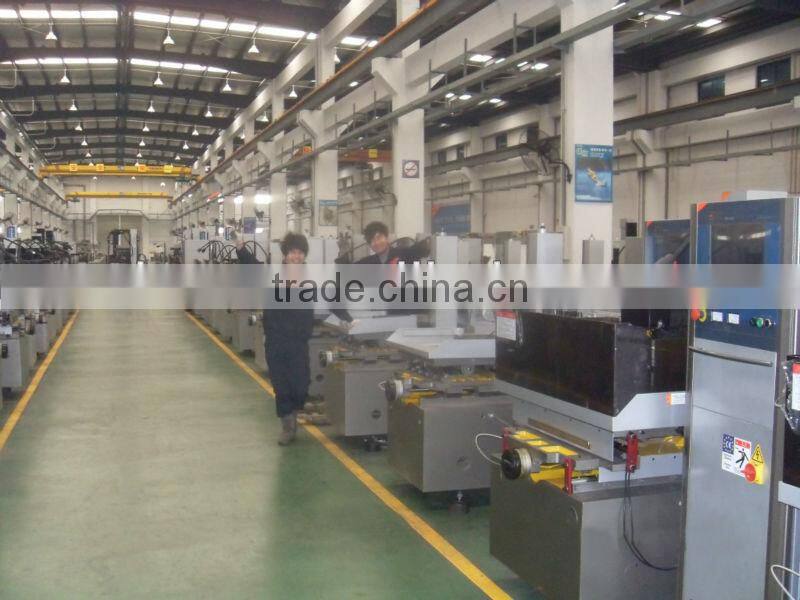

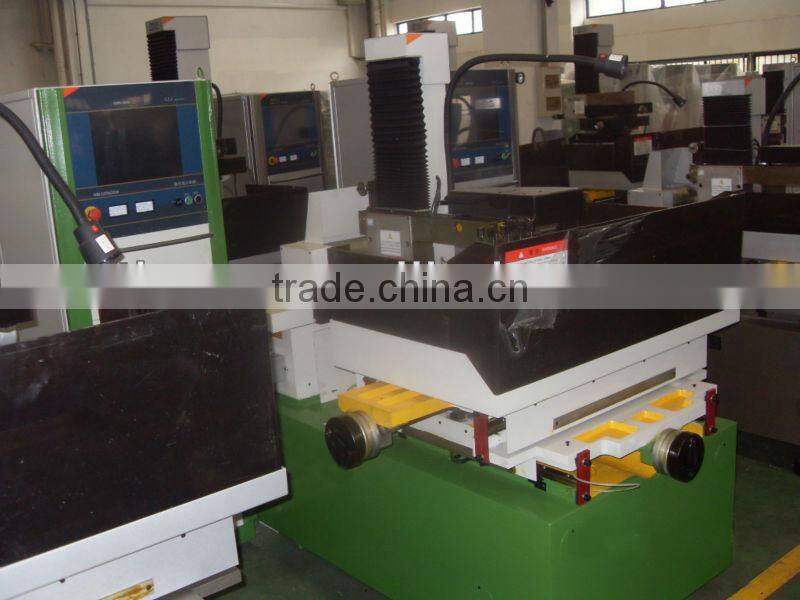

Machine View:
