Home > Manufacturing & Processing Machinery > Machine Tools > Drilling Machine > 50mm Radial Drilling Machine

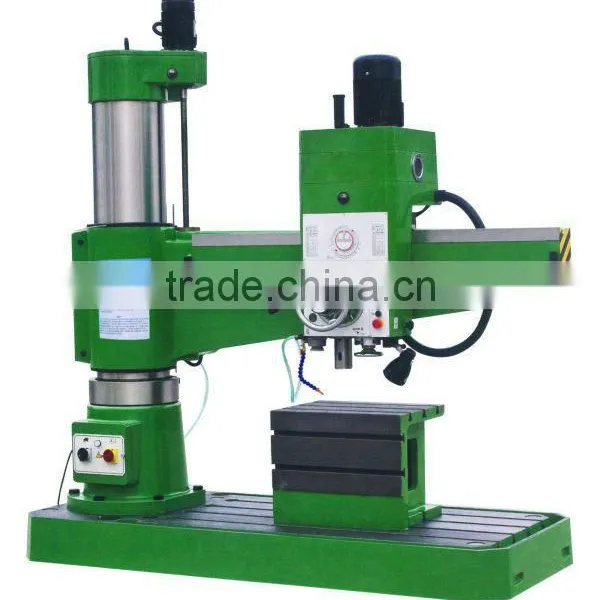

50mm Radial Drilling Machine

Name: 50mm Radial Drilling Machine
Brand: TIMAC
SKU: 140797026
Availability: InStock

50mm Radial Drilling Machine thumbnail-1

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Condition:

New

CNC or Not:

Normal

Place of Origin:

Henan, China

Contact Supplier Request Quote Chat Now

Zhengzhou Timeway Machine Tool Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

China Port

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

CNC or Not Normal

Place of Origin Henan, China

Brand Name TIMAC

Model Number RD516 RD520

Specifications

1. Radial drilling machine
2. Hydraulic transmission
3. Hydraulic clamping
4. Hydraulic pre-selection
5. 50mm drill capacity

Hydraulic Radial Drilling Machine

Features:
1. The radial drilling machine is new series with diversified fuctions of product which has been designed and accomplished referring to international standard ISO in the recent years.
2. In this machine, hydraulic preselection speed and feed change mechanisms are adopted, the spindle head, radial arm and column are clamped by hydraulic clamping mechanisms.
3. The forward, reverse, stop(braking), as well as the setting of spindle in neutral position are all controlled by a single-lever, the machine has characteristics features of perfect performance, safe,reliable and easy operation, convenient maintenance, high-accuracy, ample rigidity and long service long.
4. It is used for drilling, counter boring, spot facing, reaming, tapping and boring, widely used in every department of mechaninal machining.

Specification	Unit	RD516	RD520
Max.Drilling capacity	mm	50	50
Distance spindle axis to column generating line	mm	350-1600	350-2000
Diameter of column	mm	350	350
Spindle taper		MT5	MT5
Spindle travel	mm	315	315
Spindle speeds range	r/min	25-2000	25-2000
Spindle speeds steps		16	16
Range of Spindle feeds	mm/r	0.04-3.2	v
Spindle feeds steps	mm	16	16
Max.Distance spindle nose to working surface of base	mm	320-1220	320-1220
Dimension of worktable	mm	630×500×500	630×550×500
Dimension of base	mm	2400×1000×200	2400×1000×200
Overall Size	mm	2500×1060×2650	2900×1060×2650
Power of Main motor	kw	4	4
G.W/N.W	kg	3900/3500	3950/3550
Packing dimension	cm	270×112×258	320×112×258
