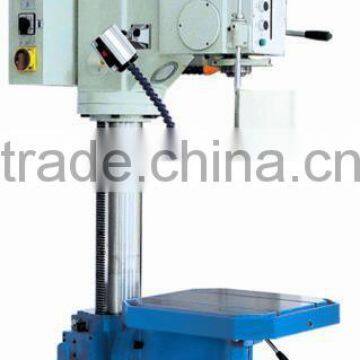

VERTICAL DRILLING MACHINE

Name: VERTICAL DRILLING MACHINE
Brand: TIMEWAY
SKU: 140797032
Availability: InStock

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Brand Name:

TIMEWAY

Model Number:

Z5030A Z5032V Z5035A Z5040A Z5050A

Zhengzhou Timeway Machine Tool Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

China port

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Brand Name TIMEWAY

Model Number Z5030A Z5032V Z5035A Z5040A Z5050A

Dimension(L*W*H) 650x1050x1950mm

Weight 440kg

After-sales Service Provided Engineers available to service machinery overseas

Specification	Unit	Z5030A	Z5032V	Z5035A	Z5040A	Z5050A
Max. drilling capacity	mm	30	32	35	40	50
Max. tapping capacity	mm	M18	-	M20	M24	M24
Distance from spindle axis to generating line of column	mm	315	290	330	360	360
Max. distance from spindle nose to worktable surface	mm	520	790	610	600	600
Max. distance from spindle nose to base surface	mm	1080	1300	1150	1215	1205
Max. travel of spindle	mm	135	115	150	180	180
Max. adjustment of worktable and table rest	mm	480	790	540	560	525
Swivel of table and table rest	°	±45°	±45°	±45°	±45°	±45°
Spindle bore taper		Morse 3	Morse 3	Morse 4	Morse 4	Morse 4
Spindle speed steps		12steps	2steps, variable in each step	12steps	12steps	12steps
Spindle speed range	rpm	70-2600	Low: 55-350, High 350-2300	12steps, 70-2600	42-2050	42-1865
Spindle feed steps		3	-	3	4	4
Spindle feed range	mm/r	0.1, 0.2, 0.3	-	0.1, 0.2, 0.3	0.07,0.15,0.26,0.4	0.07,0.15,0.26,0.4
Column diameter	mm	125	120	140	160	170
Effective working area of table(LxW)	mm	450x450	420x420	500x550	580x450	580x450
Effective working ares of base(LxW)	mm	690x480	600x450	760x500	820x550	820x550
Dimension of T-slot of table and base	mm	2-14, 2-16	2-12	2-14, 2-16	2-14, 2-16	2-14, 2-16
3-Phase two speed AC motor	kw	1.1/1.5	1.1	1.5/2.2	2.2/2.8	2.2/2.8
3-Phase two speed AC motor speed	rpm	960/1450	1440	960/1450	960/1450	960/1450
3-Phase pump motor	kw	0.09	0.06	0.09	0.09	0.09
Packing size	mm	650x1050x1950	900x590x1980	700x1150x2150	700x1150x2150	700x1150x2150
Net/Gross weight	kg	440/500	310/360	670/730	740/800	800/860
