Radial Drilling Machine Z3050x16, Z3050x18
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
CNC or Not:
Normal
Brand Name:
TIMAC
Payment & Shipping
Payment Methods:
Port of Shipment:
China port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Condition
New
CNC or Not
Normal
Brand Name
TIMAC
Model Number
Z3050x16, Z3050x18

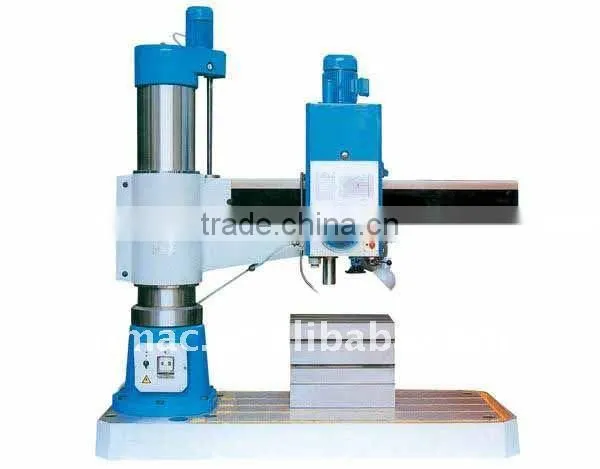

Hydraulic Radial Drilling Machine
The radial drilling machines, model Z3050X16, Z3050X18 is a universal machine, capable of drilling, counterboring, boring, reaming, spot-facing, tapping and other similar operations.
It is widely used in machine manufacturing industry for processing small and medium sized machine parts and also suitable for being used in repair shops.
This machine adopts strengther type of spindle so that it increases rigidity of spindle, widens working range and keeps it's accuracy stable.
| Model | Z3050x16 | Z3050x18 | |
| Max. diameter to be drilled (with tensile strength of 65 kg/mm2 in steel) | 50 mm | 50 mm | |
| Distance from the spindle axis to the column | Max. | 1600 mm | 1800 mm |
| Min. | 350 mm | 350 mm | |
| Distance from spindle nose to working surface | Max. | 1210 mm | 1210 mm |
| Min. | 310 mm | 310 mm | |
| Max. travel of arm on column | 600 mm | 600 mm | |
| Max. travel of spindle head on arm (manual) | 1250 mm | 1450 mm | |
| Taper of spindle bore | Morse No. 5 | Morse No. 5 | |
| Max. travel of spindle | 315 mm | 315 mm | |
| Number of spindle speeds (one of which is O) | 16 | 16 | |
| Range of spindle speeds (clockwise) | 25-2000 r/min | 25-2000 r/min | |
| Number of feed (one of which is O) | 16 | 16 | |
| Range of spindle feeds | 0.04-3.2 mm/r | 0.04-3.2 mm/r | |
| Power of the main motor | 4 kw | 4 kw | |
| Overall dimensions (LXWXH) | 2490x1060x2625 mm | 2690x1060x2625 mm | |
| Net weight (approx) | 3500 kg | 4300 kg | |
Standard accessories:
Working table
Short sleeve for taper shank tool
Wedge for taper shank tool
Foundation bolts
Optional accessories:
Shaping tool for nylon pipe joint
Quick-change drill chuck
