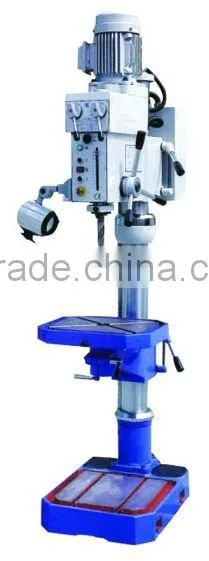

Column Vertical Drilling Machine D-25

Column Vertical Drilling Machine D-25 thumbnail-1
Column Vertical Drilling Machine D-25 photo-1
Negotiable MOQ: 5 Sets (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
CNC or Not:
Normal
Place of Origin:
Henan, China
Contact Supplier Request Quote Chat Now
Zhengzhou Timeway Machine Tool Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
China Port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
CNC or Not Normal
Place of Origin Henan, China
Brand Name TIMAC
Model Number D-25

Specifications

1. Column Vertical Drilling Machine;
2. Drilling dia. 25mm;
3. Drilling and tapping;

COLUMN VERTICAL DRILLING MACHINE





Specification D-25
Max. Drilling dia.(steel) and taping dia.(mm) Φ25/M16
Max. travel of spindle (mm) 110
Max. distance from spindle to generating line of column (mm) 240
Max. distance from spindle nose to surface of worktable (mm) 630
Max. distance from spindle nose to surface of base worktable (mm) 1100
Max. travel of spindle box (mm) 250
Max. travel of worktable bracket/Manual(Mechanical) (mm) 450
Spindle taper bore (MT) 3
Spindle speed steps 6
Spindle speed range (r/min) 125-2825
Dimension of worktable(mm) 350x400
Effective workig area of worktable 310x320
Diameter of column (mm) Φ95
Power of motor (kw) 0.75
Machine dimension (mm) 700x500x1900
Packing dimension (mm) 830x530x1950
Net weight/gross weight (kg) 300/350
