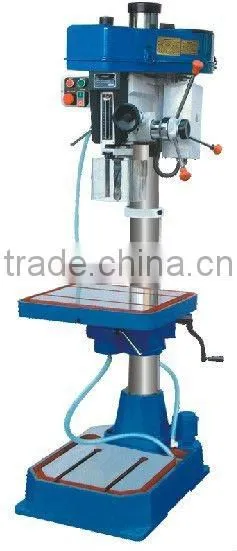

Vertical Drilling and Tapping Machine

Name: Vertical Drilling and Tapping Machine
Brand: TIMAC
SKU: 140797018
Availability: InStock

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

CNC or Not:

Normal

Place of Origin:

Henan, China

Zhengzhou Timeway Machine Tool Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

China Port

Delivery Detail:

Delivery time depends on order quantity.

Condition New

CNC or Not Normal

Place of Origin Henan, China

Brand Name TIMAC

Model Number TD-30

Specifications

1. Vertical drilling tapping machine;
2. 12 steps spindle speed;
3. Working area 540x470mm;
4. Drill, enlarge, ream and tap;

VERTICAL DRILLING AND TAPPING MACHINE

Features:

1. The machine adopts belt driving with the low noise, it can drill, enlarge, ream and tap.

2. The machine has 12 steps spindle speed, which can be widely fit for processing kinds of common hard & soft material.

3. The head and table can up & down freely, the head could also rotary around the column, which enlarge the processing range.

4. The main body is stable and firm, effective working area of table is 540x470mm.

5. According to the customer demand, the machine can drill, enlarge, ream and tap the muti-holes by the muti-spindles.

Standard accessories:

Drill chuck Ø16mm, Taper sleeve, Arbor, Drift, Wrench, Drawbar.

Optional accessories:

Muti-spindles, Angle vice, Safety guard, coolant system.

Specification	Unit	TD-30
Max. drilling capacity	mm	31.5
Max. tapping capacity	mm	cast iron: M20
Max. tapping capacity	mm	steel: M16
Diameter of column	mm	115
Spindle travel	mm	130
Distance between spindel axis and column generating line	mm	202
Max. distance between spindle nose and table	mm	790
Max. distance between spindle nose and base	mm	1245
Spindle taper		MT3
Spindle speeds range		100~2150
Spindle speeds series	r/min	12
Dimension of worktable surface		570x470
Table travel	mm	515
Dimension of base	mm	635x460
Overall height	mm	1760
Motor power	W	Single phase: 1100
Motor power	W	Three phase: 1500
G.W/N.W	kg	345/305
Packing dimension	cm	80x75x186
