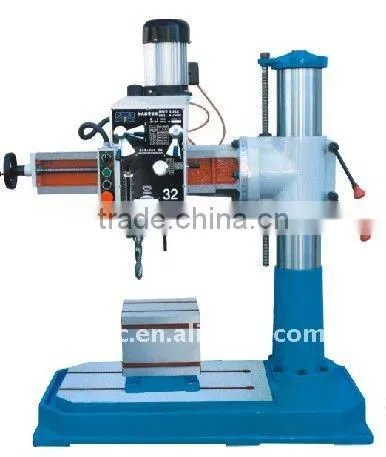

Radial Drilling Machine

Radial Drilling Machine thumbnail-1
Radial Drilling Machine photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
CNC or Not:
Normal
Brand Name:
TIMAC
Contact Supplier Request Quote Chat Now
Zhengzhou Timeway Machine Tool Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
China port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
CNC or Not Normal
Brand Name TIMAC
Model Number RL307

Specifications

Radial Drilling Machine

1. Radial Drilling Machine
2. Use for drilling, counterboring, reaming, tapping ect.



Specification

Unit

RL307

Max.Drilling capacity

mm

31.5

Max. Tapping capacity

mm

Cast Iron:20  Steel:16

Distance spindle axis to column genereating line

mm

300-700

Diameter of column

mm

150

Spindle taper



MT3

Spindle travel

mm

130

Spindle speeds range

r/min

100-1600

Spindle speeds series



8

Spindle feeds

mm/r

0.08,  0.14,  0.23

Rotary angle of rocker in horizontal plane

deg

360

Distance spindle nose to working surface of base

mm

275-680

Dimension of worktable

mm

250x250x250

Dimension of base

mm

1200x625x255

Overall size

mm

1235x625x1230

Power of main motor

W

750  or  1100

G.W/N.W

kg

580/500

Packing dimension

mm

1270x690x1370



Standard accessories:
Drill chuck
Taper sleeve
Arbor
Drift
Box shape worktable



Optional accessories:
Stand
Angle vice
Safety guard
