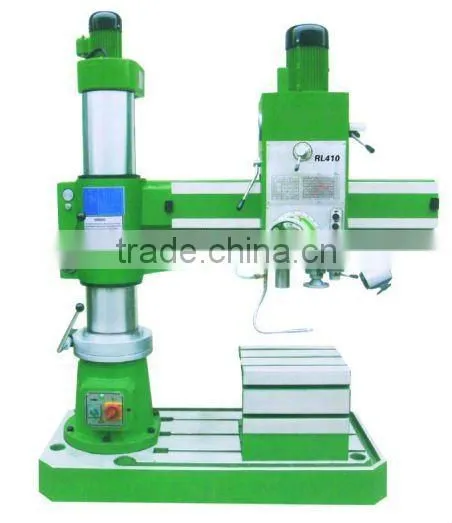

Radial Drilling Machine

Name: Radial Drilling Machine
Brand: TIMAC
SKU: 140796956
Availability: InStock

US$ 1,000 - 10,000 MOQ: 1 Set

Key Specifications

Condition:

New

CNC or Not:

Normal

Brand Name:

TIMAC

Zhengzhou Timeway Machine Tool Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

China port

Delivery Detail:

Delivery time depends on order quantity.

Condition New

CNC or Not Normal

Brand Name TIMAC

Model Number RD310, RD410, RD416, RD516, RD520, RD620, RD825, RD1030, RD1240

Heavy duty radial drilling machine

radial drilling machine

*Mechanical transmission;

*Mechanical clamping;

*Mechanical pre-selection;

*Mechanical speed exchanging;

Model	RU208	RL307	RL309 RL409	RL308A RL408A	RL410A	RL310 RL410	RL413
Max. Drilling capacity(mm)	25	32	32/40	32/40	40	32/40	40
Distance spindle axis to column generating line(mm)	315-815	300~700	200~900	320-820	320-1020	200-1000	300-1300
Diameter of column(mm)	150	150	220	200	200	240	250
Spindle taper	MT3	MT3	MT4	MT4	MT4	MT4	MT4
Spindle travel	130	150	210	240	240	250	280
Spindle speeds range(r/min)	173,425,686,960	100~1600	75~1250	75-1220	75-1220	71-1800	78-1250
Spindle speeds steps	4	8	6	6	6	8	6
Spindle feeds (mm/r)		0.08,0.14,0.23	0.05~0.16	0.1-0.25	0.1-0.25	0.13-0.54	0.1-0.32
Spindle feeds steps		3	3	3	3	4	3
Rotary angle of rocker in horizontal plane( °)	360	360
Distance between spindle nose to working surface of base(mm)	250~870	275~680	250~1100	320-900	320-900	264-1064	260-1200
Dimension worktable (mm)		250×250×250	400×400×350	400×400×350	400×400×350	400×450×400	600×410×450
Dimension of base(mm)	600×520	1200×625×255	1500×700×160	1370×700×160	1370×700×160	1500×740×160	1855×860×160
Overall size(mm)	1768×725×1984	1235×625×1230	1500×700×2100	1407×720×1885	1407×720×1885	1730×750×2350	1860×870×2340
Motor(w)	1.5	0.75 or 1.1	1.5	1.5	1.5	2.2/3	3
G.W./N.W.(Kg)	870/970	675/580	1380/1250	1425/1200	1450/1230	1700/1400	2500/2100
Packing dmension(cm)	204×97.6×242.8	127×69×138	160×75×220	155×77×210	175×77×210	187×97×217	190×100×230
