Home > Manufacturing & Processing Machinery > Machine Tools > Drilling Machine > Milling Drilling Machine
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
CNC or Not:
Normal
Brand Name:
TIMAC
Payment & Shipping
Payment Methods:
Port of Shipment:
CHINA PORT
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Condition
New
CNC or Not
Normal
Brand Name
TIMAC
Model Number
MD-50F, MD-50C
Specifications

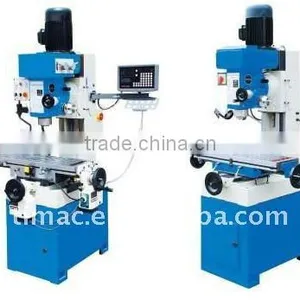

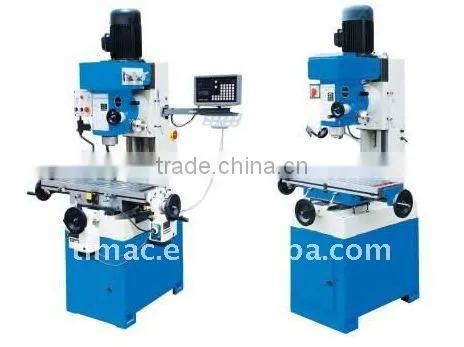

Milling drilling machine.Milling Drilling Machine
Item | MD-50CF | MD-50C |
Max.drilling dia. | 50 | 50 |
Max.horizontal milling dia. | 100 | 100 |
Max.vertical milling dia. | 25 | 25 |
Max.boring dia. | 120 | 120 |
Max.tapping dia. | M16 | M16 |
Spindle taper | MT4,IS030 | MT4,ISO30 |
Spindle speeds range | 115-1750(8) | 230-1825(8) |
Spindle travel | 120 | 120 |
Table size | 800×240 mm | 800×240 |
Table size | 400×230×380 | 400×230×380 |
Main motor power | 0.85/1.5 | 0.85/1.5 |
N.W/G.W. | 500/600 | 500/600 |
Standard accessories:
Rotate +/-45degrees,
cooling system,
work lamp.
