Swivel Head Knee Type Milling Machine US320W

Name: Swivel Head Knee Type Milling Machine US320W
Brand: TIMAC
SKU: 140796586
Availability: InStock

Zhengzhou Timeway Machine Tool Co., Ltd.

US$ 7,500 - 8,350 MOQ: 1 Set

Key Specifications

Condition:

New

Brand Name:

TIMAC

Model Number:

US320W

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao Port

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Brand Name TIMAC

Model Number US320W

Type Vertical

CNC or Not Normal

Voltage As client's request

Power(W) 3kw

Dimension(L*W*H) 2260*1970*2250mm

Weight 2000kg

Certification CE, ISO9001:2008

Warranty 1 year after delivery

Product Description

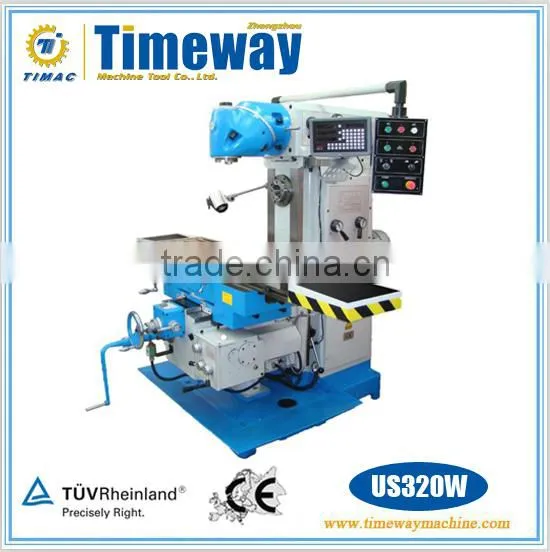

Swivel Head Knee type Milling Machine US320W

Key Feature:

• Hardened and ground table surface;

• Rectangular column guideway with high stability;

• Automatic feeds on X, Y, Z axes;

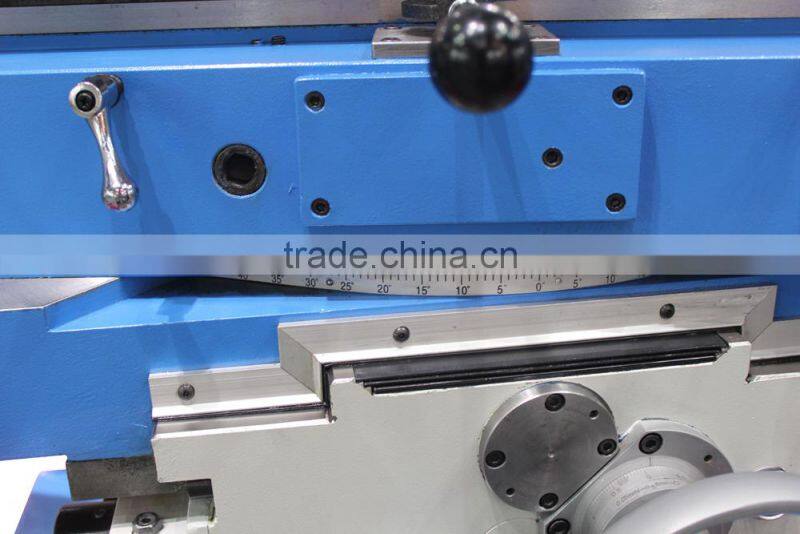

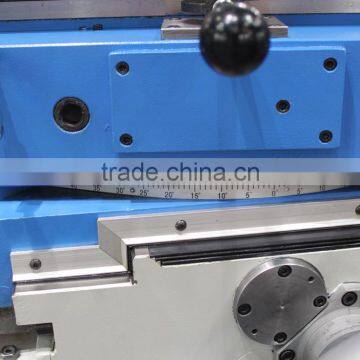

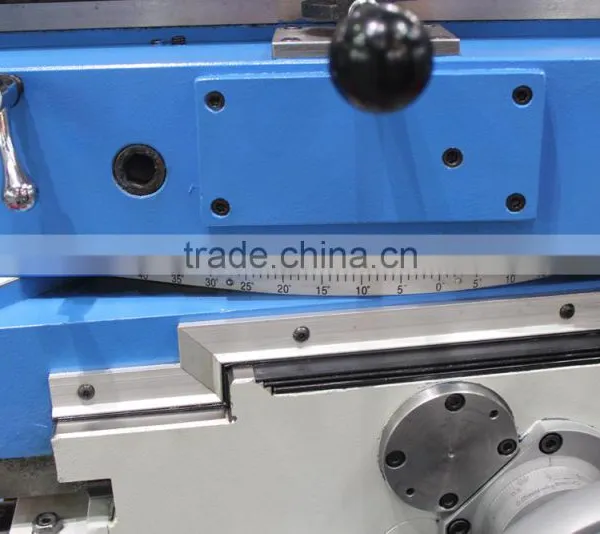

• Worktable can swivel ±35°;

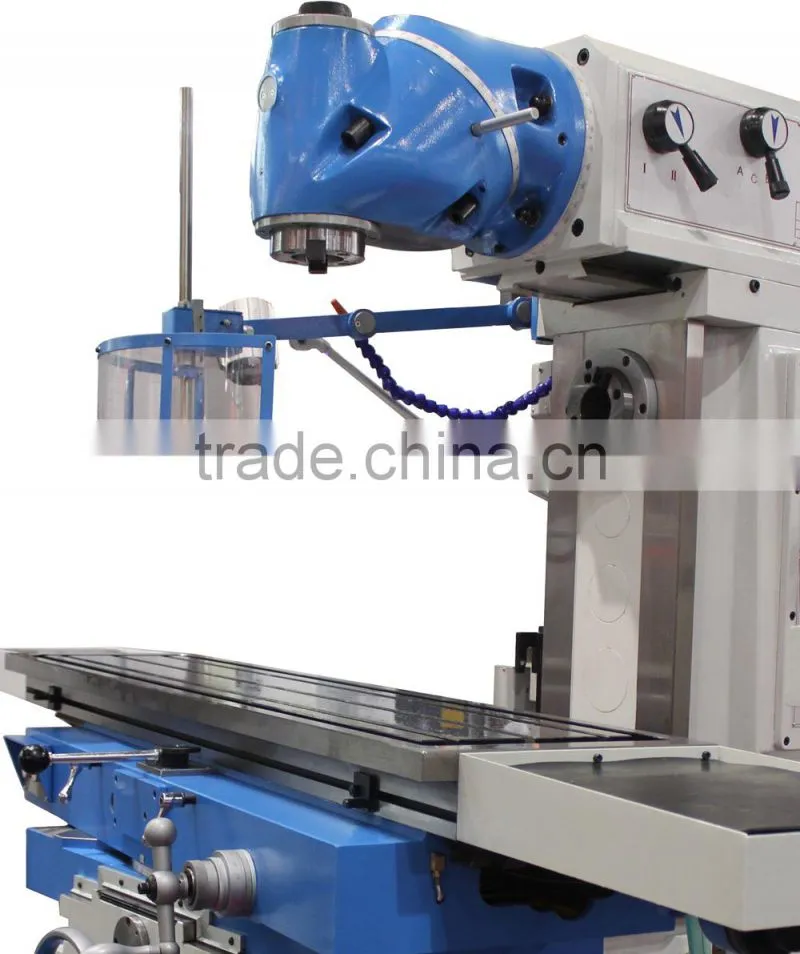

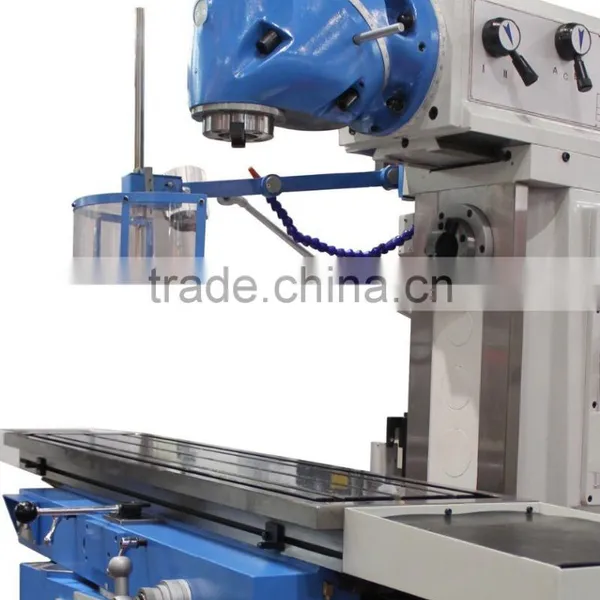

• Both horizontal spindle and swivel milling head.

Technical Specification:

Model	US320W	US360W
Table size (W×L)	320×1320mm	360×1320mm
Table travel (X/Y/Z)	1000×300×440mm	1000×280×400mm
Table t-slots(No./Width/Pitch)	5-14-63mm	3-14-95mm
Max.rotation angle of table	-	±35º
Max. loading of worktable	300kg	300kg
Spindle taper	ISO40	ISO50
Spindle speed range - Vertical	45-1660r.p.m (11steps)	50-1800r.p.m (11steps)
- Horizontal	38-1310r.p.m (12steps)	60-1750r.p.m (12steps)
Swivel angle of milling head	±360°	±360°
Table longitudinal & cross feed (X/Y)	20-360mm/min (8steps)	22-393mm/min
Table vertical feed (Z)	422mm/min (1step)	10-168mm/min
Table rapid speed (X/Y/Z)	1200/1200/422mm/min	1290/1205/513mm/min
Vertical spindle - table	200-640mm	170-570mm
Vertical spindle - column	200-760mm	220-720mm
Horizontal spindle - table	30-450mm	0-400mm
Horizontal spindle - arm	175mm	175mm
Ram travel	460mm	500mm
Main motor power	3 kw	4 kw
Feed motor	0.55kw (X/Y), 0.75kw (Z)	1kw (X/Y/Z)
Overall dimensions (L×W×H)	2020×1710×1994mm	2070×2025×2020mm
Packing size (L×W×H)	2260×1870×2250mm	2070×1930×2250mm
N.W/G.W	2000/2200kg	2250/2450kg
