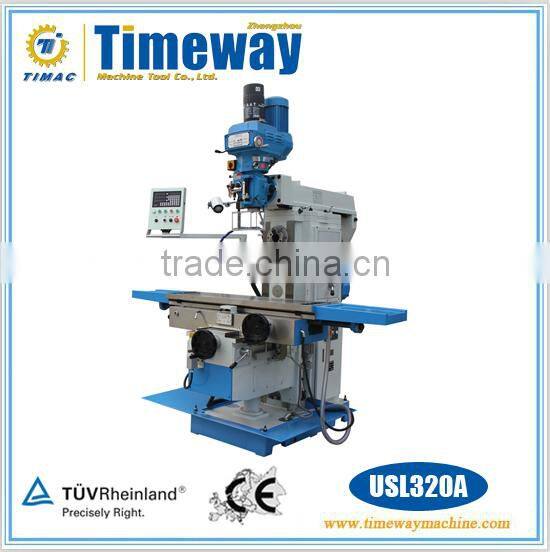

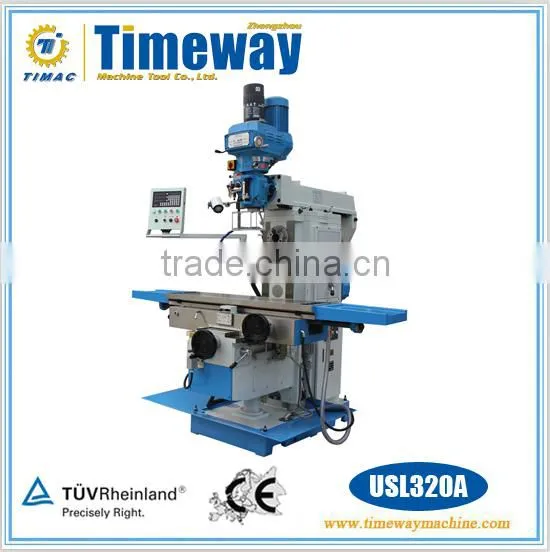

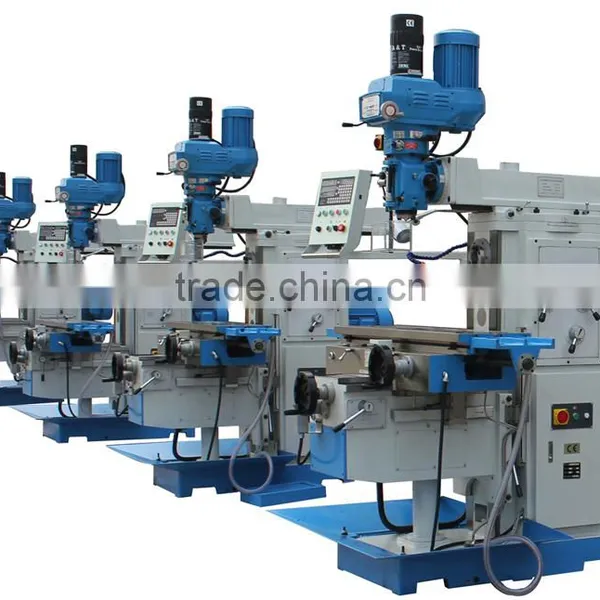

Vertical Turret Milling Machine USL320A (Servo)
Technical Specification:
Model |
USL320A |
USL360C |
Table size (W×L) |
320×1370mm |
360×1325mm |
Table travel (X/Y/Z) |
820×300×400mm |
1100×320×450mm |
Table t-slots(No./Width/Pitch) |
3/14/80mm |
3/18/80mm |
Spindle taper |
R8 or ISO30(V); ISO40(H) |
ISO40(V); ISO50(H) |
Spindle speed range - Vertical |
65-4660r.p.m (16steps) |
65-4660r.p.m (8steps) |
- Horizontal |
35-1500r.p.m (12steps) |
60-1800r.p.m (16steps) |
Swivel angle of milling head (L & R) |
±90° |
±90° |
Table feed (X/Y/Z) |
Stepless |
Stepless |
Table rapid speed (X/Y/Z) |
1000/1000/750mm/min |
1200/800/600mm/min |
Vertical spindle - table |
260-660mm |
200-650mm |
Horizontal spindle - table |
75-475mm |
20-470mm |
Horizontal spindle - arm |
200mm |
245mm |
Ram travel |
450mm |
550mm |
Main motor power |
3HP(V); 3kw (H) |
3.7kw (V); 5.5kw (H) |
Torque of X/Y/Z axis AC servo motor |
10N.m |
10N.m |
Overall dimensions (L×W×H) |
1820×1680×2350mm |
2245×2100×2500mm |
N.W/G.W |
1730/1930kg |
2780/2980kg |
Price (FOB China) |
|
Standard Configuration:
Taiwan made step pulley mill head, Mill chuck & collets, draw bar, machine vise, horizontal mill arbor, coolant system,
work lamp, table elevating motor, convergent panel, wrench, spanner, middle sleeve, elevating rotary handle, oil collecting plate, operation manual.
Options & Extra Cost:
Taiwan made variable speed mill head
Worktable swivel ±45°
3-axis SINO D.R.O
58pcs clamping kit
Dividing head
Slotting head
Rotary table
Air draw bar
Package: Wooden pallet & plastic cover (Standard)
or Plywood case (Optional)
Packing size: 1.82 x 1.68 x 2.35M N.W./G.W.: 1730/1930kg
Container loaded: 3 sets / 20'GP
