Home > Manufacturing & Processing Machinery > Machine Tools > Milling Machine > TIMEWAY H/V Mill Head Turret Milling Machine TM500

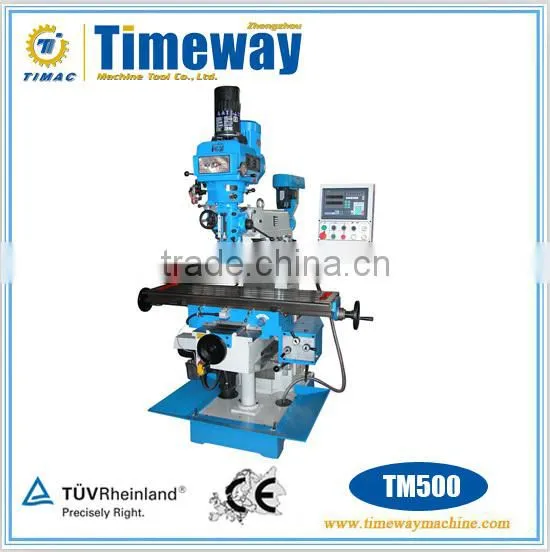

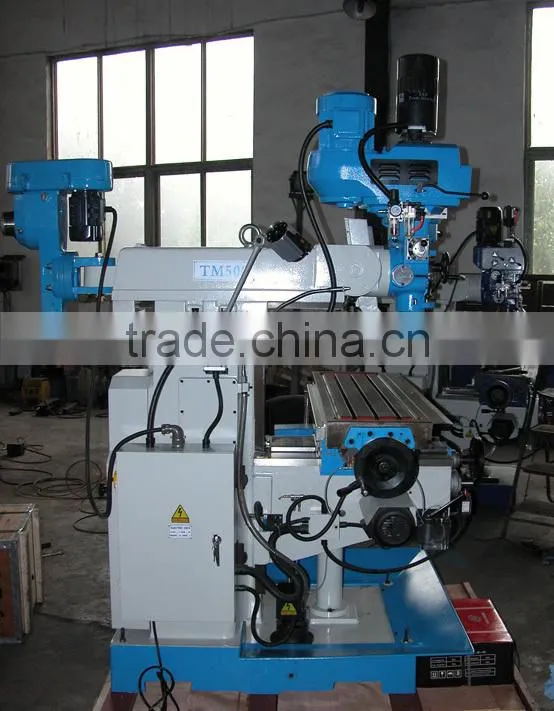

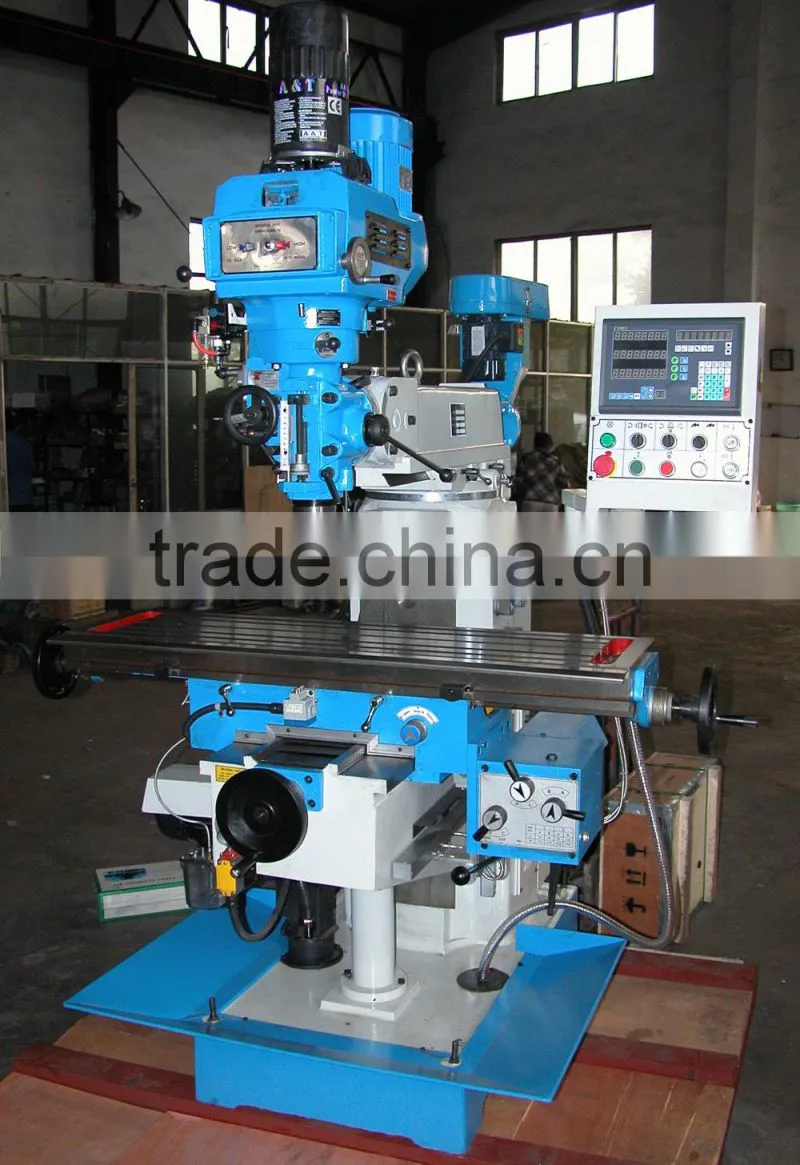

TIMEWAY H/V Mill Head Turret Milling Machine TM500

Name: TIMEWAY H/V Mill Head Turret Milling Machine TM500
Brand: TIMAC
SKU: 140796556
Availability: InStock

TIMEWAY H/V Mill Head Turret Milling Machine TM500 thumbnail-1

TIMEWAY H/V Mill Head Turret Milling Machine TM500 thumbnail-2

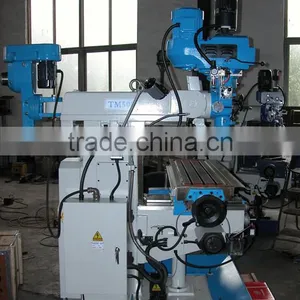

TIMEWAY H/V Mill Head Turret Milling Machine TM500 thumbnail-3

TIMEWAY H/V Mill Head Turret Milling Machine TM500 thumbnail-4

TIMEWAY H/V Mill Head Turret Milling Machine TM500 thumbnail-5

TIMEWAY H/V Mill Head Turret Milling Machine TM500 photo-1

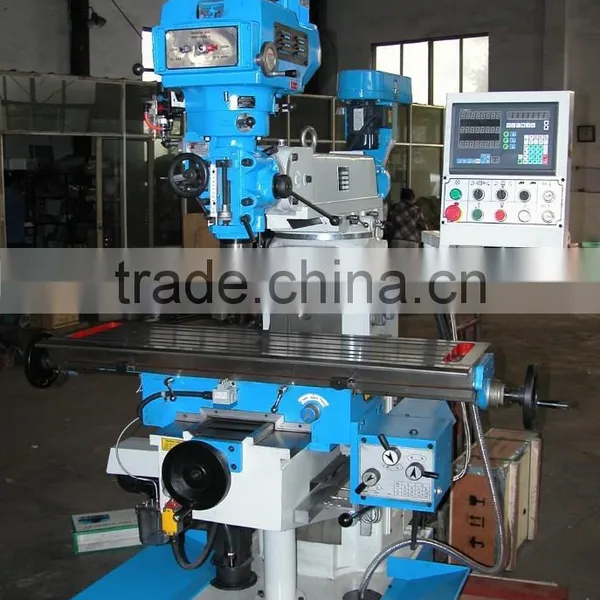

TIMEWAY H/V Mill Head Turret Milling Machine TM500 photo-2

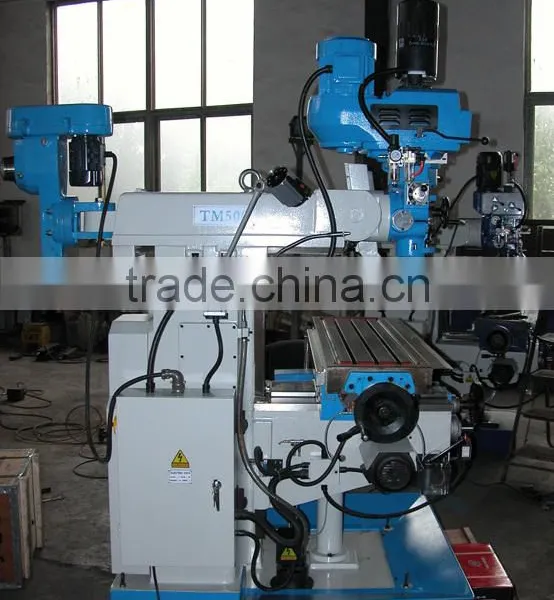

TIMEWAY H/V Mill Head Turret Milling Machine TM500 photo-3

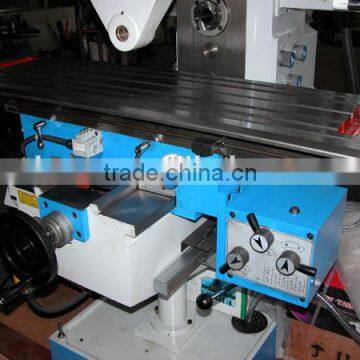

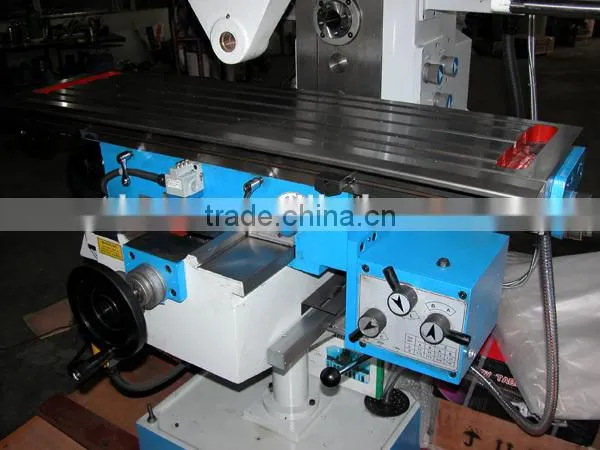

TIMEWAY H/V Mill Head Turret Milling Machine TM500 photo-4

TIMEWAY H/V Mill Head Turret Milling Machine TM500 photo-5

US$ 5,800 - 6,750 MOQ: 1 Set

Key Specifications

Get Latest Price

Condition:

New

Brand Name:

TIMAC

Model Number:

TM500

Contact Supplier Request Quote Chat Now

Zhengzhou Timeway Machine Tool Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao Port

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Brand Name TIMAC

Model Number TM500

Type Vertical

CNC or Not Normal

Voltage As client's request

Power(W) 2.2(V), 2.2(H)

Dimension(L*W*H) 1700*1500*2150mm

Weight 1600

Certification CE, ISO9001:2008

Warranty 1 year after delivery

Product Description

H/V Head Auto-feeding Turret Milling Machine TM500

Features :

Turret Milling Machine

1. Hardened and ground table surface;

2. Automatic feeds on X, Y axes, motorized rise and fall of table on Z axis;

3. Spindle sleeve can tap, automatic feed with 3 speeds;

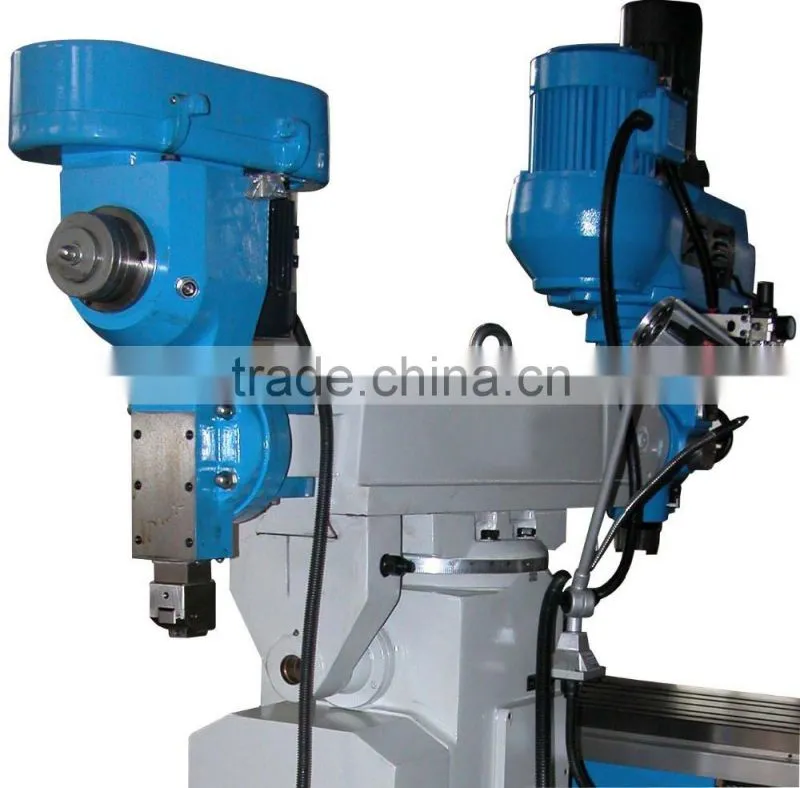

4. Headstock swivels ±90° from right to left, tilt ±45° from forth to back (TM500)

5. Drill depth stop with display of measurement;

6. Rectangular column guide way with high stability (TM600, TM700, TM800)

Parameter:

Model	Unit	TM500	TM600	TM700	TM800
Table size	mm	320 x 1250	320 x 1250	320 x 1250	360 x 1250
Spindle taper		ISO40(V), ISO40(H)	ISO40(V), ISO40(H)	ISO40(V), ISO40(H)	ISO40(V), ISO50(H)
Diameter of quill	mm	95	120	120	120
Distance from spindle to table	mm	9 ± 0-370	90-490	90-490	135-535
Distance from horizontal spindle to table	mm	0-280	0-400	0-400	230
Distance from spin dle to column	mm	200-700	200-700	200-700	200-700
Spindle speed	r.p.m	(16steps) 80-5440(V), (12steps) 40-1300(H)	(16steps) 70-7200(V), (12steps) 40-1300(H)	(16steps) 70-7200(V), (12steps) 40-1300(H)	(16steps) 70-7200(V), (12steps) 60-1800(H)
Spindle travel	mm	127	145	145	145
Quill feed	mm	(3steps)0.15,0.08,0.25	(3steps)0.4,0.08,0.15	(3steps)0.4,0.08,0.15	(3steps)0.4,0.08,0.15
Max. drilling capacity of auto-feeding	mm	10	10	10	10
Head swivel(right to left)		±90°	±90°	±90°	±90°
Head tilt(fore to back)		±45°
Table travel(Longitudinal/Cross/Verical)	mm	600/300/280	600/300/400	800/300/400	1000/320/400
X,Y axes feed speed	mm/min	22-555	22-555	22-555	22-555
X,Y axes rapid feed speed	mm/min	1080	1080	1080	1080
Z axis rapid elevate speed	mm/min	590	590	590	590
Z axis rapid elevate motor power	w	750	750	750	1100
Max. weight of workpiece	kg	300	300	300	400
T slot(No./width/distance)	mm	3/14/70	3/14/70	3/14/70	3/18/80
Main motor	kw	2.2(V), 2.2(H)	3.75(V), 2.2(H)	3.75(V), 2.2(H)	5.5(V), 4(H)
X,Y axes auto-feed drive motor	w	750	750	750	750
Coolant pump power	w	40	40	40	90
Overall dimension	mm	1700x1500x2150	1700x1500x2270	1780x1500x2270	2220x1790x2360
N.W./G.W.	kg	1450/1600	1550/1650	1650/1750	2450/2650

***Standard:

5HP Taiwan made step pulley type milling head, Mill chuck&collets, draw bar, machine vise, horizontal mill arbor, coolant system, work lamp, table elevating motor, convergent panel, wrench, spanner, middle sleeve, elevating rotary handle, oil collecting plate, operation manual(English edition).

***Optional:

3-axes DRO
5HP Taiwan made variable(stepless) speed type milling head
Air power draw bar
58pcs clamping kits
Universal dividing head
Rotary table

Packaging & Shipping

Package: Wooden pallet & plastic cover (Standard)

or Plywood case (Optional)

Packing size:

One piece in one case: 114x122x222CM N.W./G.W.: 850/1050KGS

Two pieces in one case: 114x122x222CM N.W./G.W.: 1700/1900KGS

Container loaded: 3 sets / 20'GP
