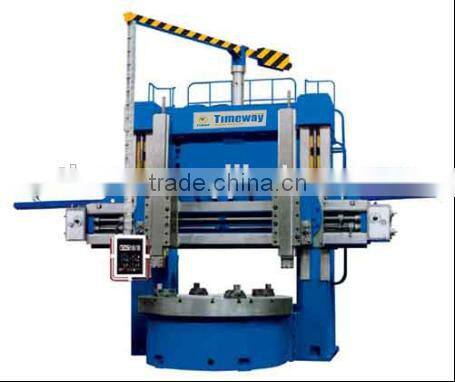

Double Column Gantry Vertical Lathe

Double Column Vertical Lathe Machine

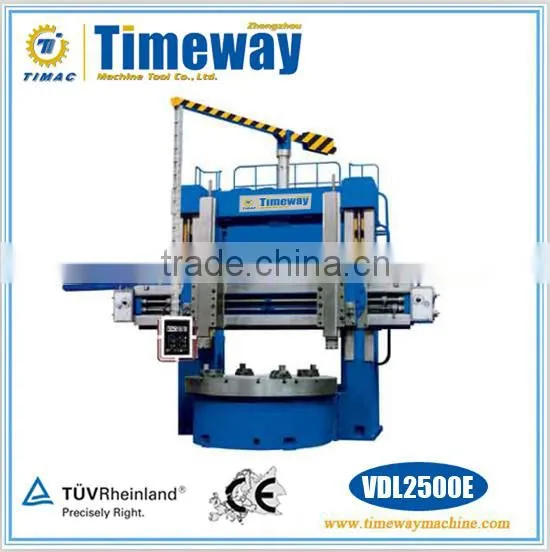

VDL2500E   VDL3150E   VDL3500E   VDL4000E

Performance and Feature

1. The machine tools are suitable for motor, water turbine, aviation, mining machinery, metallurgy and common machinery industries, and are used for rough and finish machining of inside and outside cylinder, cone surface, end face and grooving.
2. The foundation part is whole casting structure, using high strength and low stress cast iron material, annealing after casting, aging treatment after rough machining. The column guide rail adopt grinding processing, beam guide and ram guide adopt grinding processing after the intermediate frequency quenching.
3. Main transmission is driven by AC motor, main drive speed changing with 16steps is controlled by solenoid valves. All gears in the gear-box adopt high frequency quenching process. Worktable can adopt sliding, static pressure and rolling guide.
4. Horizontal and Vertical feed of vertical tool-post use the ball screw driving, driven bu AC servo motor, so as to realize automation. Left and right tool-post adopt hydraulic balance, using sliding guideway in the horizontal and vertical direction, and the guideway paste high strength PTFE soft belt.
5. Hydraulic system is equipped with German traffic transmission device, to guarantee oil flow stability for the workbench lubricating.
6. The machine uses PLC control, high reliability, electrical wiring in accordance with the process execution.
7. Beautiful appearance, agreeableness, convenient operation and maintenance.
8. According to customer's raquirement, we can provide motorized spindle grinding head, cooling device, DRO and etc.
9. Equipped with CNC system according to customer's need.
10. Adopt Chinese famous quality products.
