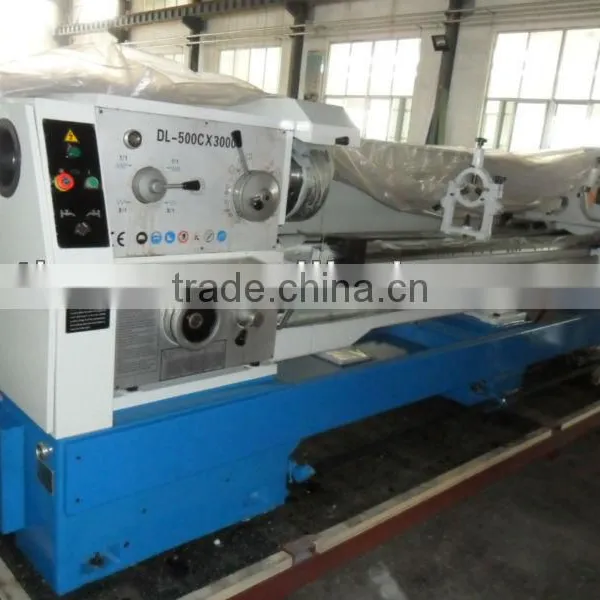

Horizontal Gap-bed Lathe/Precision Gap-bed Lathe

Specifications

1. Horizontal gap bed turning lathe
2. Large spindle bore lathe
3. 750-3000mm length
4. Universal lathe

Features:



These lathes are mainly suitable for turning internal and external cylindrical, conical and other swing surfaces as well as various metric, inch, module and diametric pitch threads. They also can be used for broaching oil grooves and keyways.



1. Hardened by means of middle -frequency induction method, the guideway surfaces of the beds are durable.
2. The construction rigidity and driving rigidity are higher.
3. With higher power utilization ratio, these lathes are suitable for heavy and high speed cutting operation.
4. There are thres kinds of spindle bore available for choice.
     DL-...A means 52mm spindle bore;
     DL-...B means 82mm spindle bore;
     DL-...C means 105mm spindle bore;



Specification	DL-400A	DL-500A
	DL-400B	DL-500B	DL-610B	DL-660B	DL-800B
		DL-500C	DL-610C	DL-660C	DL-800C
Max. Swing over bed	400mm	500mm	610mm	660mm	800mm
Max. Swing over carriage	210mm	300mm	370mm	400mm	540mm
Max. Swing in gap	630mm	720mm	830mm	880mm	1020mm
Effective gap length	210mm	210mm	210mm	210mm	210mm
Max. Length of work piece	1000 /1500/2000/3000mm
Width of bed	400mm
Section of turning tool	25X25mm
Spindle speeds	11—1600r/min (24 steps)
Hole though spindle	A:52mm, B:80mm, C:105mm
Spindle taper	Morse No.6
Longitudinal feed range	0.028--6.33mm/rev (64kinds)
Cross feed range	0.014--3.16mm/rev (64kinds)
Range of metric threads	1-192mm(44kinds)
Range of inch threads	1-24T.P.I(21kinds)
Range of module threads	0.25-48(Module 39 kinds)
Range of diametric threads	1-96DP(37 kinds)
Max tailstock sleeve travel	150mm
Tailstock sleeve diameter	75mm
Tailstock sleeve taper	Morse No.5
Main motor power	7.5kw(10HP)
Packing size (LxWxH) mm	2650/3150/ 3610/4610 x1150x1700		2650/3150/ 3610/4610 x1190x1800	2650/3150/ 3650/4650 x1190x1900	2650/3150/ 3650/4650 x1190x1950
