Torno / 8''-11'' Variable Speed Bench Lathe For Sale At Low Price

Name: Torno / 8''-11'' Variable Speed Bench Lathe For Sale At Low Price
Brand: TIMAC
SKU: 140796498
Availability: InStock

Negotiable MOQ: 10 Sets (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Type:

Horizontal

CNC or Not:

Normal

Zhengzhou Timeway Machine Tool Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Chiana Port

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Type Horizontal

CNC or Not Normal

Automatic Grade Manual

Max. Swing Diameter 210mm-280mm

Brand Name TIMAC

Model Number HD-210V, HD-250V, HD-280V

Voltage as customer's request

Power(W) 750w/1000w

Dimension(L*W*H) depends on different models

Weight 44kg

Certification CE & ISO

After-sales Service Provided Engineers available to service machinery overseas

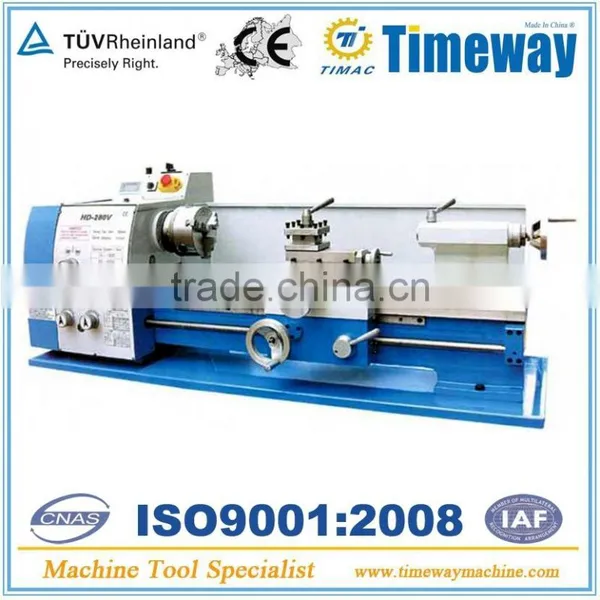

8''-11'' Variable Speed Bench Lathe

(HD-210V HD-250V HD-280V)

Product Description

Standard Accessories:

3-jaw chuck,Change gears set, Tool box and tools, Dead centers

Optional Accessories:

4-jaw chuck,Face plate,Steady rest,Follow rest,Live center, Turning tool set, Splash guard,

Oil tray, Foot stands,Leadscrew guard Chuck guard,Drill chuck + Drill arbor

Parameter:

Specification	Unit	HD-210V	HD-250V	HD-280V
Max. swing over bed	mm	Φ210	Φ250	Φ280
Max. swing over cross slide	mm	Φ110	Φ150	Φ150
Distance between centers	mm	320	400 /550 /750	610
Width of bed	mm	135	135	180
Spindle bore	mm	20	26	26
Taper of spindle bore		M.T.#3	M.T.#4	M.T.#4
Range of spindle speeds	rpm	125-2000	125-2000	125-2000
Taper of tailstock quill		M.T.#2	M.T.#2	M.T.#3
Metric threads can be cut	mm	0.4-3	0.4-3.5	0.1-3.5
Inch threads can be cut	TPI	10-44	8-56	8-35
Range of longitudinal feeds	mm/rev	0.1-0.2	0.07-0.2	0.1-0.25
Max. travel of cross slide	mm	110	115	110
Max. travel of top slide	mm	70	70	70
Max. travel of tailstock quill	mm	65	65	80
Motor power	w	750 (DC.motor)	750 (DC.motor)	1000
N.W	KG	105	112 /116 /126	218
G.W	KG	143	152 /156 /166	258
Foot stands (N.W /G.W)	KG	44/48	44/48	52 /56
