10Ton & 970mm Bed Width Heavy Duty Horizontal Lathe with 3m~18m length
- 100 Set / Sets per Month
- China Port
- T/T Credit Card
Product Details
Condition: | New | Type: | Horizontal | CNC or Not: | Normal |
Automatic Grade: | Manual | Max. Swing Diameter: | 1600mm | Place of Origin: | Henan, China |
Brand Name: | TIMAC | Model Number: | AL-1250C AL-1400C AL-1600C | Voltage: | 220V/380V/400V |
Power(W): | 22KW | Weight: | 10ton loading capacity | Certification: | ISO, CE |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Specifications
1. Heavy duty lathe;2. Large swing 1250/1400/1600mm;
3. Bed width 970mm;
4. Max. workpiece weight 10tons;
5. 3m-18m length;

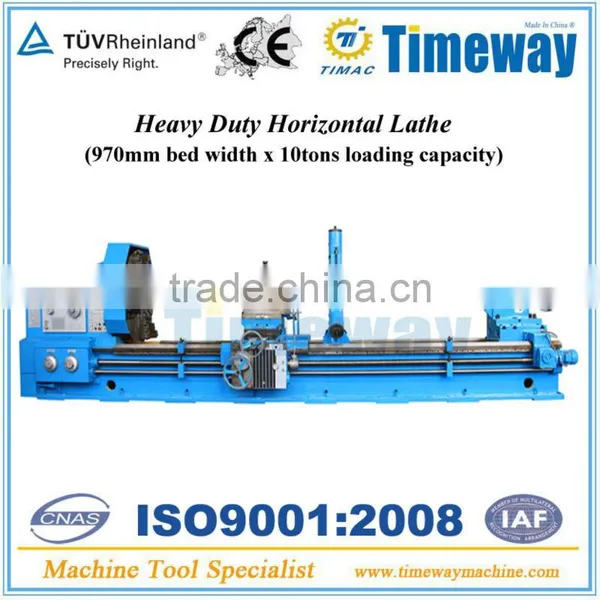

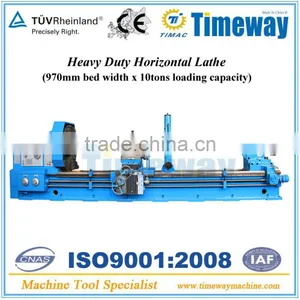

Heavy Duty Horizontal Lathe (10Ton Loading Weight x 970mm Bed Width)
Features:

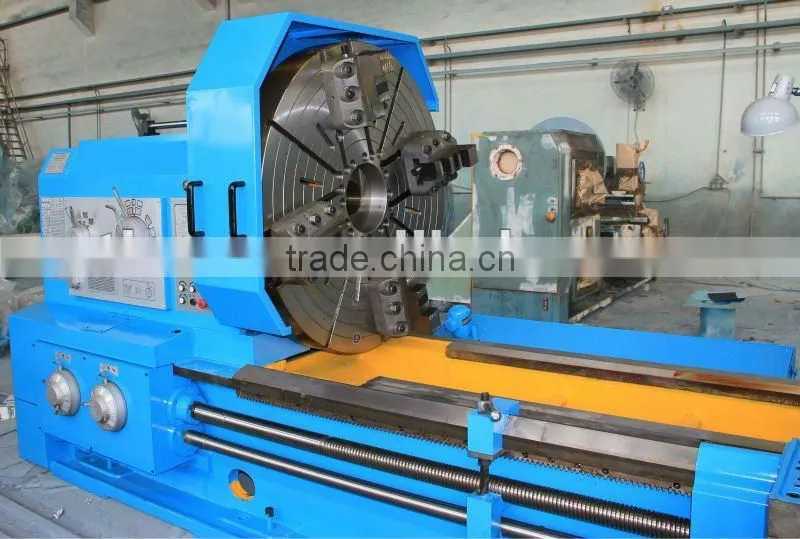

1. This series heavy duty lather adopts 970mm wide rectangular induction hardened and ground bed guide ways, so of excellent stability, high rigidity, and with max. bearing 10tons between centers.
2. The main spindle is of precision roller bearing 3-point supporting structure.

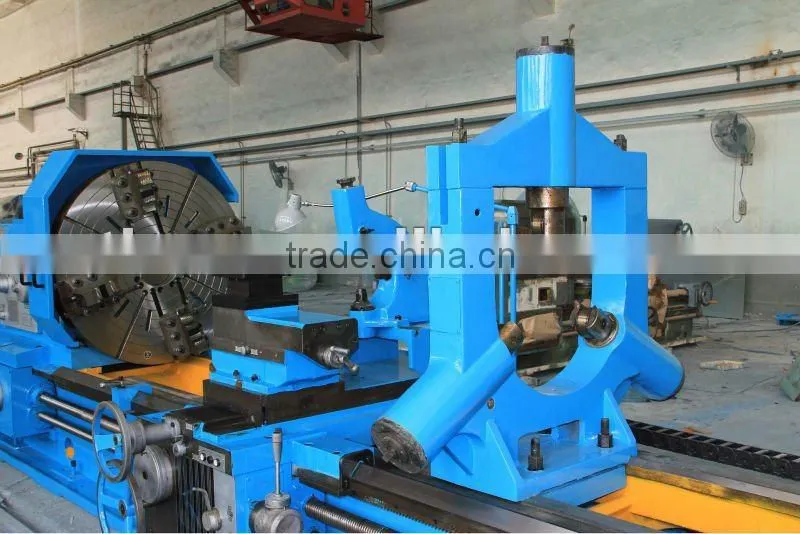

3. Saddle guide ways with Teflon belt coated, rotating tailstock quill structure to minimize friction and heat generation.
4. The machine are suitable for various turning works, such as turning of external and internal cylindrical surfaces, end faces, and turning of metric or inch threads, modular threads and diamatrical pitch threads, etc.
5. Motorized short taper turning could be done by the top slide independently, and long taper’s motorized turning could be done by top slide combined with longitudinal feed.
6. Further more, these lathes can also carry out drilling, trepanning and boring processes, etc.
Optional items:
**Big center rest
**Big center bracket
**Motor driven tailstock and tailstock with rotary quill
**Chuck guard, tool post shield, cable carring chain
Specficiation | Unit | AL-1250C | AL-1400C | AL-1600C | |
Capacities | Swing over bed | mm | 1250 | 1400 | 1600 |
Swing over carriage | mm | 865 | 1010 | 1210 | |
Max. length of workpiece | mm | 3000/4000/5000/6000/8000/10000/12000/14000/16000/18000 | |||
Max. length of turning | mm | 2800/3800/4800/5800/7800/9800/11800/13800/15800/17800 | |||
Max. torque of spindle | N.m | 12590 | |||
Max. cutting force | N | 45000 | |||
Max. force of longitudinal | N | 18000 | |||
Max. weight of workpiece | kg | 10000 | |||
Spindle | Dia. of spindle thru hole | mm | 130 | ||
Taper hole of spindle | Metric 140 | ||||
Number of forward turning | 21kinds | ||||
Number of reverse turning | 12kinds | ||||
Range of spindle speeds | r/min | Forward:3.15-315, Reverse:3.5-291 | |||
Feed motion | Longitudinal and cross | 56kinds | |||
Range of feed motion | mm | Longitudinal:0.1-12, Transverse:0.05-6, Top slide:0.025-3 | |||
Number of metric thread | 44kinds | ||||
Range of metric thread | mm | 1-120 | |||
Number of inch thread | 31kinds | ||||
Range of inch thread | 2028-1-4 | ||||
Number of module thread | 45kinds | ||||
Range of module thread | mm | 0.5-60 | |||
Number of dia. pitch thread | 38kinds | ||||
Range of dia. pitch thread | 1/2-56DP | ||||
Tool post | Size of tool shank | mm | 45x45 | ||
Tool post swing range | ±90° | ||||
Max. travel of carriage | mm | 2900/3900/4900/5900/7900/9900/11900/13900/15900/17900 | |||
Max. travel of cross slide | mm | 650 | |||
Max. travel of top slide | mm | 300 | |||
Rapid of tool post | mm/min | Longitudinal:3740, Transverse:1870, Top slide:935 | |||
Tailstock | Dia. of tailstock quill | mm | 220 | ||
Travel of tailstock quill | mm | 300 | |||
Taper hole of tailstocj quill | Morse No.6# | ||||
Others | Main motor power | kw | 22 | ||
Speed | r/min | 970 | |||
Power of tool post | kw | 1.5 | |||
Machine overall dimension | Length | mm | 6020/7020/8020/9020/11020/13020/15020/17020/19020/21020 | ||
Width | mm | 1995 | |||
Height | mm | 2175 | 2325 | 2525 | |
Machine weight(AL-1250C) | kg | 14500/15800/17000/18300/20000/21500/25000/27000/- | |||
Machine weight(AL-1400C) | kg | 15000/16300/17500/18800/20500/22000/25500/27500/- | |||
Machine weight(AL-1600C) | kg | 15500/16800/18000/19300/21000/22500/26000/28000/- |
1. Free replacing parts available in the warranty period.
Cost price replacing parts available beyond the warranty period.
2. Quick action and reply for the technical questions at any time in the whole life of the machine.
3. Overseas after service center available in some region.
4. Engineer overseas service available on the requirement of customer(relative cost born by customer).
ISO, CE, TUV, SGS certified company.
* Trade terms: FOB, CFR, CIF, EXW, FCA price terms is acceptable.
* Payment terms: T/T, L/C, Western Union payment terms is acceptable.
* Delivery time: Normal delivery time: 45days, 60days, 75days, 90days....(vary as the machine's different size and complexible).
* Warranty period: 12monthes after delivery. (Within the warranty period, if there is any problem not caused by wrong operation, we will supply you the replacing parts for free. Even beyond the period, we will still supply the replacing parts with cost price).
