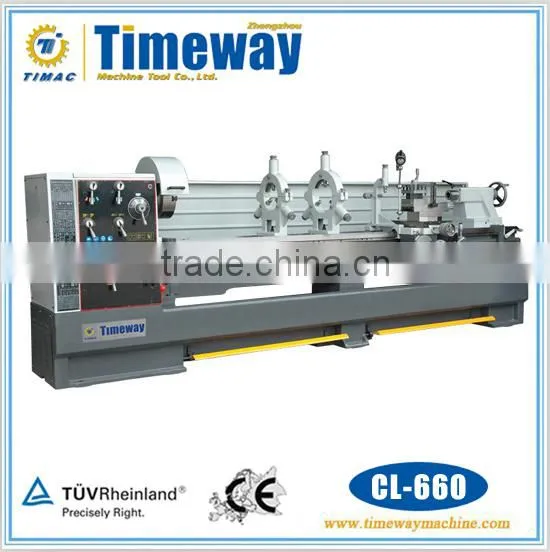

Precision Gap-bed Lathe Machine
CL-660 CL-800
Standard accessories:

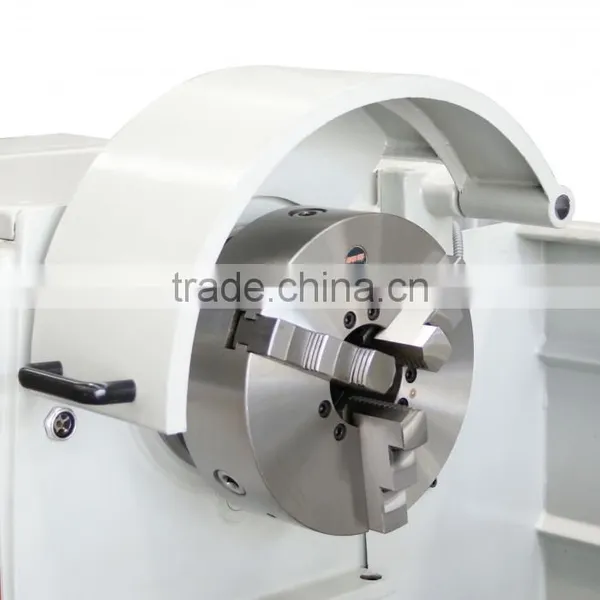

3 jaw chuck, changing gears, dead center, reduction sleeve, oil gun, coolant system, working light, 4 jaw chuck, face plate, steady rest, follow rest, chasing dial indicator.
Optional accessories:
Digital readout system (DRO), quick change tool post & holders, taper turning attachment.
Technical Parameter:
Specification | CL-660 | CL-800 |
Swing over bed | Φ660mm | Φ800mm |
Swing over cross slide | Φ440mm | Φ560mm |
Swing in gap | Φ900mm | Φ1040mm |
Distance between centers | 1500mm/2000mm/3000mm | |
Valid length of gap | 250mm | |
Width of bed | 400mm | 510mm |
Spindle nose | D1-8 | |
Spindle bore | Φ105mm | |
Taper of spindle bore | Φ 113mm(1:20)/MT5 | |
Range of spindle speed | 16changes25-1600rpm | 16changes17-1100rpm |
Max. travel of top slide | 230mm | |
Max. travel of cross slide | 368mm | 420mm |
Max. section of tool | 25×25mm(1"×1") | |
Pitch thread of leadscrew | Φ40mm×2T.P.I. or Φ40mm×12mm | |
Longitudinal feeds range | 25 kinds, 0.044-1.48mm/rev (0.00165"-0.05497"/rev) | |
Cross feeds range | 25 kinds, 0.022-0.74mm/rev (0.00083"-0.02774"/rev ) | |
Metric threads range | 0.45-120mm (54 kinds) | |
Inch threads range | 7/16-80T.P.I. (60 kinds) | |
Diametrical pitches range | 7/8-160DP (42 kinds) | |
Module pitches range | 0.25-60MP (46 kinds) | |

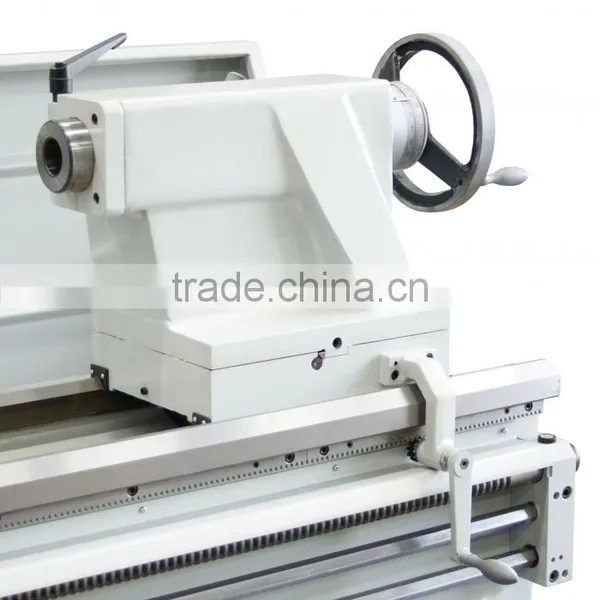

Dia. of tailstock sleeve | 90mm | |
Travel of tailstock sleeve | 235mm | |
Taper of tailstock sleeve | No.5Morse | |
Power of main motor | 7.5kw(10HP)3PH | 11kW (15HP) |
Power of coolant pump | 0.1kW(1/8HP) 3PH | |
Overall dimension(L×W×H) cm | 321/371/471×123×167cm | 321/371/471×136×167cm |
Packing size(L×W×H) cm | 324/374/474×114×191cm | 324/374/474×127×191cm |
Net weight | 2800/2900/3300kg | 3100/3300/3900kg |
Gross weight | 3100/3200/3700kg | 3450/3750/4450kg |
• Taper Turning Attachment • Digital Readout System(DRO) • Quick Change Tool-post
