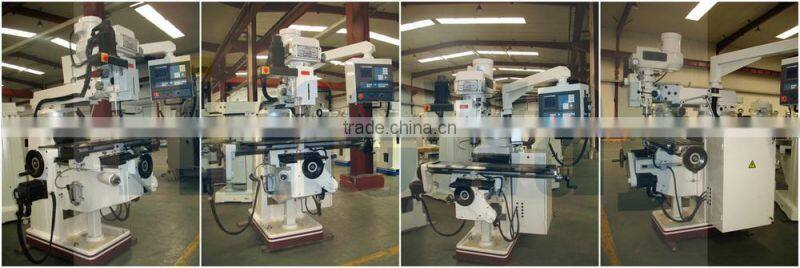

Economical Vertical Turret CNC Milling Machine KTM-250
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Henan, China
Brand Name:
TIMAC
Payment & Shipping
Payment Methods:
Port of Shipment:
China Port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Bed Type Vertical CNC Milling Machine KBM- SeriesUS$ 25,000 - 45,000MOQ: 1 Set -
Large-Scale and Heavy-Duty CNC Gear Hobbing MachineUS$ 200,000 - 300,000MOQ: 1 Set
-
CNC Gear Rolling Machine (CNC Gear Burnishing Machine)US$ 100,000 - 120,000MOQ: 1 Set
-
Ten-axis High Precision CNC Universal Gear Grinding MachineUS$ 300,000 - 400,000MOQ: 1 Set
-
High Precision and High-Efficiency CNC Gear Hobbing MachineUS$ 10,000 - 100,000MOQ: 1 Set
Condition
New
Place of Origin
Henan, China
Brand Name
TIMAC
Model Number
KTM- Series
Type
Vertical
CNC or Not
CNC
Voltage
As Buyer's Request
Certification
ISO, CE
Warranty
12 months
After-sales Service Provided
Engineers available to service machinery overseas

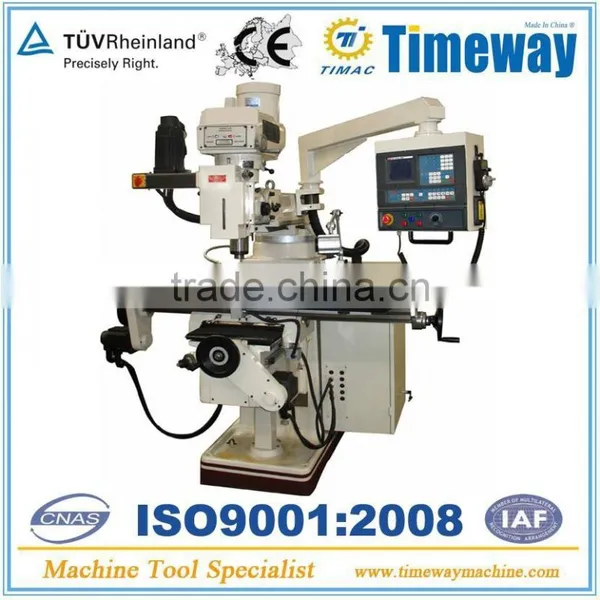

Economical CNC Turret Milling Machine
Features:
* The spindle system features strong rigidity, it's suitable for rough machining and force cutting, hence improve machining efficiency, features long travel, heavy loading.
* The machine can be used for drilling, boring, lathing, and milling.
* The machine is adopt rectangular guide ways, features strong rigidity and high accuracy.
* Radial tool holder of facing head on the headstock head for radial machining.
Standard accessories:
GSK CNC system, Draw bar, Tool box and tools, Working lamp, Electro lubricating pump,
Hung up control panel, Cooling system, Oil collecting plate, Plastic splashing guard.
Optional accessories:
Air draw bar, Machine vise, Universal clamping kits, Collets and chuck.
| Specification | Unit | KTM-230A | KTM-230B | KTM-250 | KTM-250A | KTM-250B | KTM-250C | KTM-250D | KTM-300 | KTM-300A | ||
| Table size | mm | 230x1067 | 254x1270 | 305x1370 | ||||||||
| 230x1246 | 254x1370 | 305x1500 | ||||||||||
| T slots | 3x16 | |||||||||||
| Table loading | kg | 200 | 280 | 350 | ||||||||
| X axis(table longitudinal move) travel | mm | 550 | 750 | 800 | ||||||||
| mm | 740 | 850 | 900 | |||||||||
| Y axis(table cross move)travel | mm | 300 | 400 | 380 | 380 | 400 | 400 | 360 | 360 | |||
| Z axis(Quill move)travel | mm | 127 | ||||||||||
| X/Y/Z axis rapid feed | mm/min | 5000 | ||||||||||
| X/Y/Z axis servo motor | kw | 1 | ||||||||||
| Knee vertical travel | mm | 380 | 400 | 410 | ||||||||
| Ram travel | mm | 315 | 465 | 500 | ||||||||
| Distance from spindle table | mm | 0-380 | 0-400 | 0-410 | ||||||||
| Milling head | Spindle speed | Standard: (16steps) | rpm | 50HZ:60-4500 / 60HZ:80-5440 | ||||||||
| Optional: (Variable) | 65-4200 | 60-3750 | ||||||||||
| Spindle taper | Standard:R8/Optional:ISO40 | ISO40 | ||||||||||
| Motor power | HP | 3HP | 5HP | |||||||||
| Head rotating | Swiveling | 90° | 90° | 90° | 90° | 90° | 90° | 90° | 90° | 90° | ||
| Tilting | 45° | 45° | 45° | 45° | 45° | - | 45° | 45° | - | |||
| CNC | GSK/FANUC/SIEMENSE/MITSUBISH/FAGOR | |||||||||||
| Package size | cm | 165x190x200 | 190x200x223 | 200x200x225 | ||||||||
| G.W | kg | 1200 | 1500 | 1700 | 1900 | |||||||
