High Precision CNC Vertical Lathe

High Precision CNC Vertical Lathe photo-1

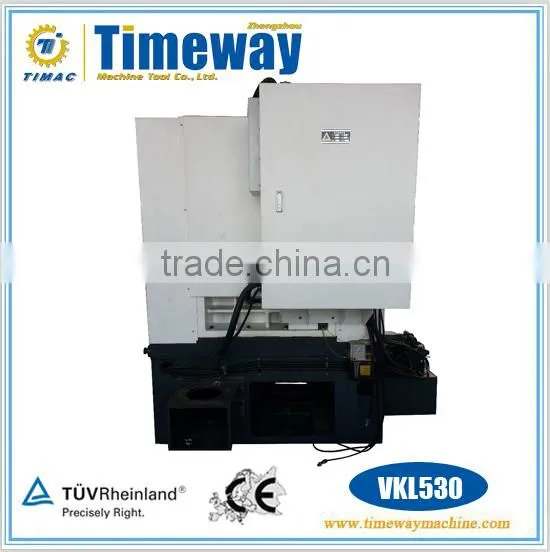

High Precision CNC Vertical Lathe photo-2

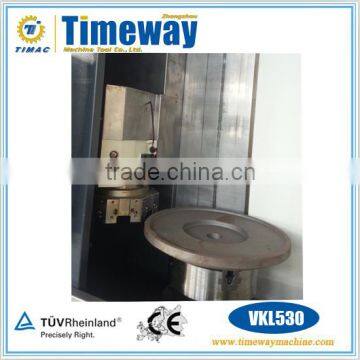

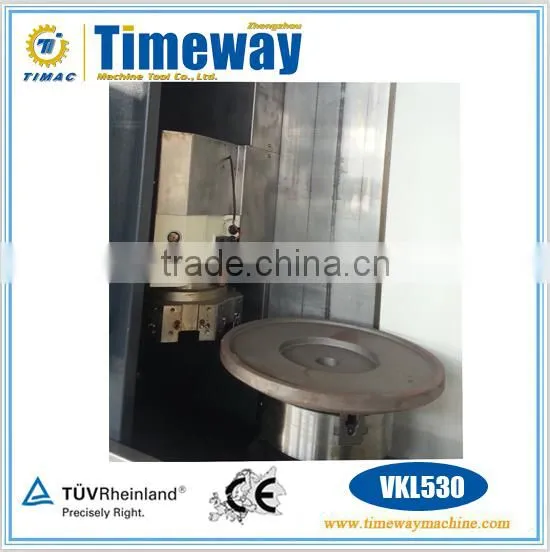

High Precision CNC Vertical Lathe photo-3
US$ 20,000 - 100,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Vertical
CNC or Not:
CNC
Payment & Shipping
Payment Methods:
Port of Shipment:
CHINA PORT
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Type Vertical
CNC or Not CNC
Automatic Grade Semi-Automatic
Max. Swing Diameter 530mm--1600mm
Brand Name TIMAC
Model Number VKL530,VKL530A,VKL650,VKL900A,VKL1000,VKL1600
Voltage 380V/50HZ
Power(W) As actual situation
Dimension(L*W*H) As actual situation
Weight 4500--19000KG
Certification CE ISO9001
After-sales Service Provided Engineers available to service machinery overseas





 High Precision CNC Vertical Lathe

  VKL530,VKL530A,VKL650,VKL900A,VKL1000,VKL1600

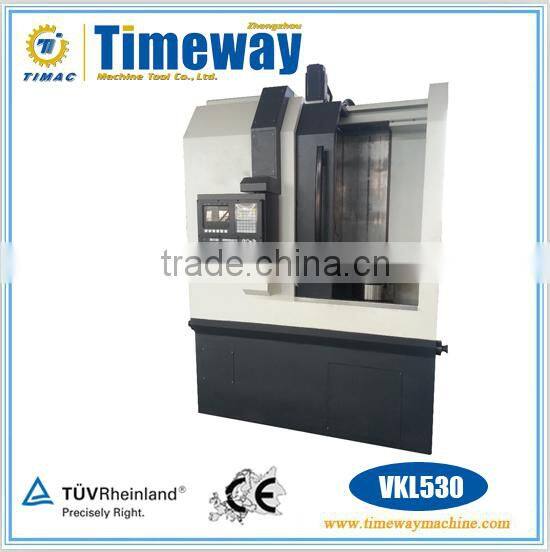

Main Outlook



High Precision CNC Vertical Lathe







Product Description



Features:

 1. Compact structure, ridgid spindle component and good for heavy cutting.
2. Easy to chuck and remove, Workpiece roundness and other precision are ensured.
3. The turret on the slide moves along longitudinal or cross rails.There are three cross rails to support the slide. Ball screws and linear rails are used to ensure smooth feed and high precision.
4. Different handles, electric buttons and CRT displayer are all on the same rocking panel for easy operation,
 Machine totally sealed guard structure. Back side chip removal conveyor.

Specifications List



Specifications:(VKL530/VKL530A,VKL650)

Models

VKL530/VKL530A

VKL650

Capacity

Max.swing

Φ530 mm

Φ650mm

Max.cutting diameter

Φ500mm

Φ600mm

Max.height or turning

430mm

600mm

Spindle

Spindle nose

A2-8

A2-8

Front spindle bearing ID

Φ120mm

Φ140mm

Spindle speed range

100-2000r/min

100-2000r/min

Steps of spindle speed

Varlable

Varlable

Chuck dia.

12”

18”

Travel

Travel of X axis

-50;+250mm

-30;+300mm

Travel of Z axis

450mm

600mm

Feel

Rapid feed of X axis

8m/min

10m/min

Rapid feed of Z axis

10m/min

12m/min

Tool Post

Type of tool stations

Hydraulic

Hydraulic

Number of tool statins

8

8

Tool shank size(square)

25X25mm

25X25mm

Tool shank size(round)

Φ40mm

Φ40mm

Motor

Main motor

15 18/5KW

18.5/22KW 11KW

Hydraulic pump motor

1.5KW

1.5KW

Coolant pump motor

200W

370W

Other

Overall dimensiln(LxWxG)

1590X2670X2545mm

23650X2700X3200mm

Net weight

4500Kg

8000Kg



FAQ



1.Trade terms:

FOB, CFR, CIF, EXW, FCA price terms is acceptable.



2.Payment terms:

T/T, L/C, Western Union payment terms is acceptable.


3.Delivery time:

60days....(vary as the machine's different size and complexible).



4.Warranty period:

12 monthes after delivery.(Within the warranty period, if there is any problem not caused by wrong operation, we will supply you the replacing parts for free. Even beyond the period, we will still supply the replacing parts with cost price).
