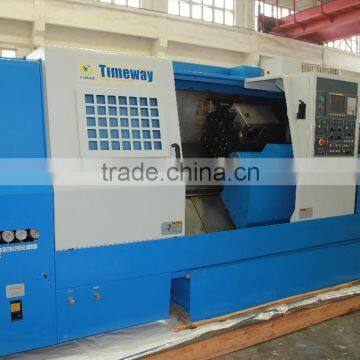

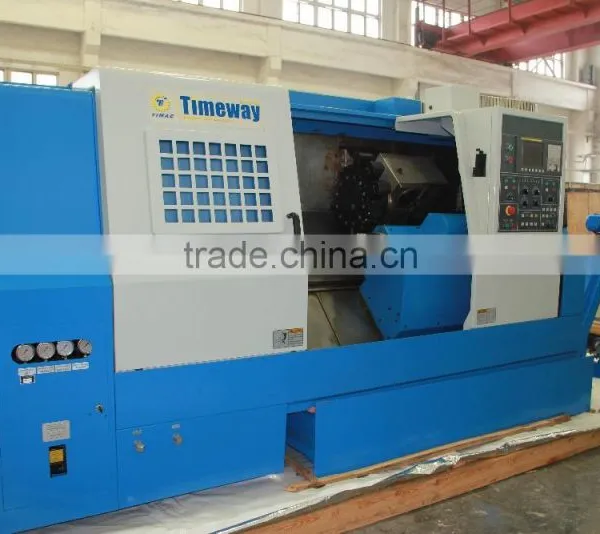

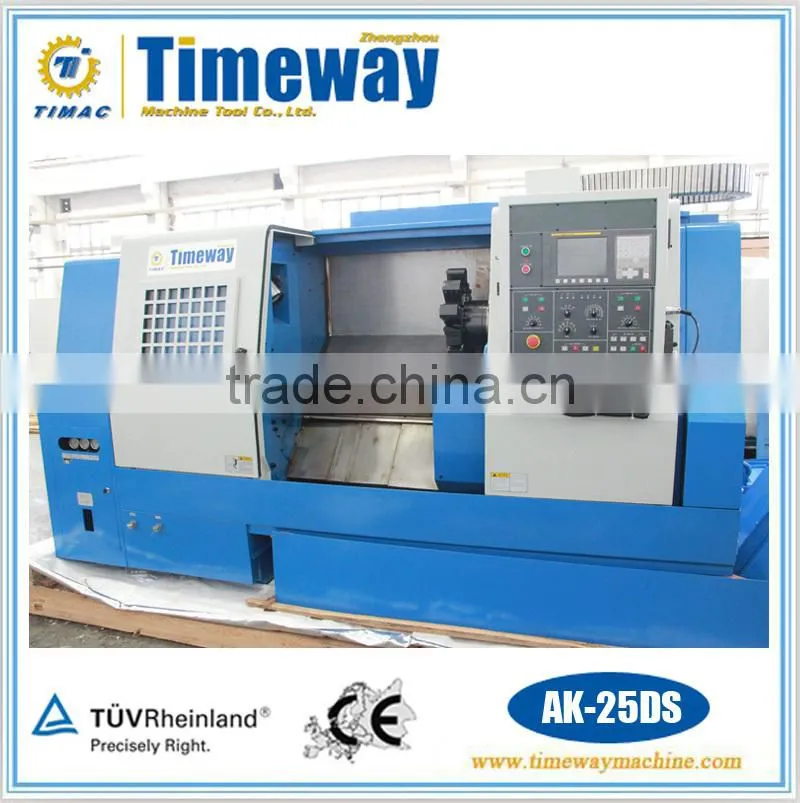

Double Spindle CNC Lathe
Features:
1. The economical full function CNC lathe is semi-closed loop CNC machine tools suitable to turn various complicated shaft,
sleeve and disk-like work pieces, such as turning of internal and external cylindrical, conical and other circumgyration
surface as well as various metric, inch, modular and diametric pitch threads;
2. They can also be used for oil grooves and keyways broaching, end-facing, grooving and chamfering, etc;
3. The unique construction developed using FEA techniques to provide maximum stiffness under the heaviest cutting condition;
4. The machining accuracy is about IT5~IT6, and the surface roughness is about Ra0.4um for nonferrous metal cutting and
Ra0.8um for ferrous metal;
5. It is especially suitable for the machining of high precision work-pieces, and also widely used to machining parts in batches
in the fields of automobile, motorcycle, railroad, aero-craft, home-appliance, bearing, hardware, etc.
Parameter:
Specification | AK-25DS | |
Capacity | Swing over bed | Φ600mm |
| Swing over saddle | Φ420mm |
| Distance between the end face of two chuck | 620mm |
| Max. turning diameter | Φ420mm |
| Max. turning length | 500mm |
Travel and feed | Sub-spindle travel | 550mm |
| X travel | 250mm |
| Z travel | 650mm |
| X travel speed | 18000mm/min |
| Z travel speed | 20000mm/min |
| Hand wheel | 0.001mm/0.01mm/0.1mm |
| X, Z feeding speed | 1260mm/min |
Spindle | Spindle speed | 35-3500rpm, 45-4500rpm |
| Spindle nose | A2-8(main spindle), A2-6(sub-spindle) |
| Size of chuck | 10”(main spindle), 8”(sub-spindle) |
| Spindle hole | 87mm(main spindle), 62mm(sub-spindle) |
| Front bearing diameter | Φ130mm(main spindle), Φ110mm(sub-spindle) |
Turret | Number | 12 |
| Tool shrank size | 25x25mm |
| Drilling diameter | 40mm |
| Tool changing | 1.0sec |
Motor | Spindle motor | AC18.5/15KW |
| X axis feed motor | AC1.6KW |
| Z axis feed motor | AC3.0KW |
| Sub-spindle feed motor | AC3.0KW |
| Sub-spindle motor | AC11/9KW |
| Consumed power | 40KVA |
Others | Coolant fluid volume | 200L |
| Motor | 0.18KW(1HP) |
| Machine weight | 5500kg |
| Machine height | 1950mm |
| Floor space(LxW) | 3370x1700mm |
Positioning accuracy | Z-axis | R: 0.006mm, B: 0.008mm, A: 0.010mm |
| X-axis | R: 0.006mm, B: 0.004mm, A: 0.010mm |
| R: repeat positioning accuracy; B: reverse warp; A: positioning accuracy. | |
*** Standard Accessories:
FANUC 0i TD controller; FANUC servo main motor, FANUC servo type feeding motor for both X,Z axes; 8” hydraulic solid chuck; 8 stations hydraulic tool turret; Hydraulic tailstock; Automatical lubricating unit; Cooling system; General tools; Auto. chip conveyor; Operational manual(English edition).
* AKJ-15, AKJ-25 Series Economic Type Slant Bed CNC Lathe
* AK-15B Series Slant Bed CNC Lathe
* AK-25 Series Slant Bed CNC Lathe
* AK-15M, AK-25M Sereies CNC Turning Center (With C-axis)
* AK-25DS Sereies Double Spindle CNC Lathe
Package: Wooden pallet & plastic cover (Standard)
or Plywood case (Optional)
Packing size:
One piece in one case: 2950*1150*1750MM N.W./G.W.: 1850/2250KG
