Double Spindle CNC Lathe Machine AK-25DS
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Type:
Horizontal
CNC or Not:
CNC
Payment & Shipping
Payment Methods:
Port of Shipment:
China seport
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
20" Swing CNC Slant Bed Lathe KD-25AUS$ 10,000 - 35,000MOQ: 1 Set -
Heavy-duty CNC Horizontal LatheUS$ 1,000 - 100,000MOQ: 1 Set
-
CNC Vertical Turning MachineUS$ 30,000 - 110,000MOQ: 1 Set
-
Horizontal CNC Tunring Machine (CNC Lathe)US$ 5,000 - 12,500MOQ: 1 Set
-
Single Column CNC Vertical LatheUS$ 30,000 - 110,000MOQ: 1 Set
Condition
New
Type
Horizontal
CNC or Not
CNC
Automatic Grade
Automatic
Max. Swing Diameter
600mm
Place of Origin
Henan, China
Brand Name
TIMAC, TIMEWAY
Model Number
AK-25DS
Voltage
220V/380V/400V
Power(W)
18.5/15KW
Dimension(L*W*H)
4800x2200x2300mm
Weight
6500kg
Certification
ISO, CE, SGS
After-sales Service Provided
Engineers available to service machinery overseas
Product Description

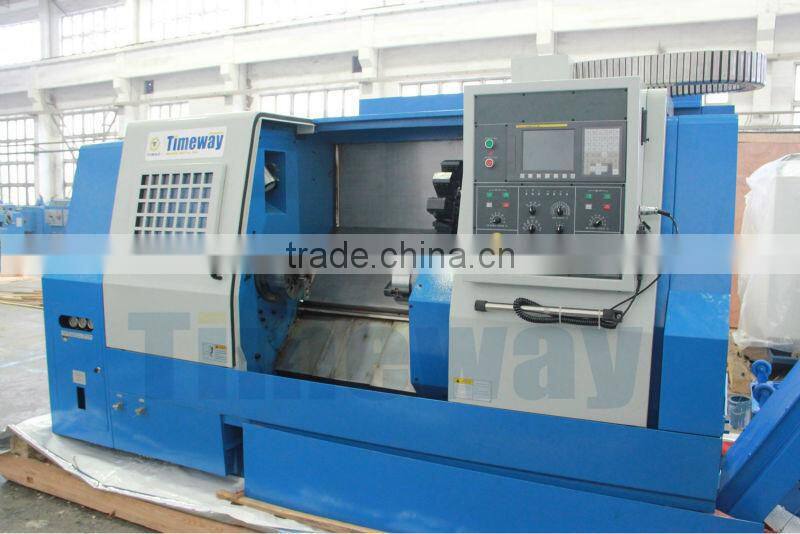

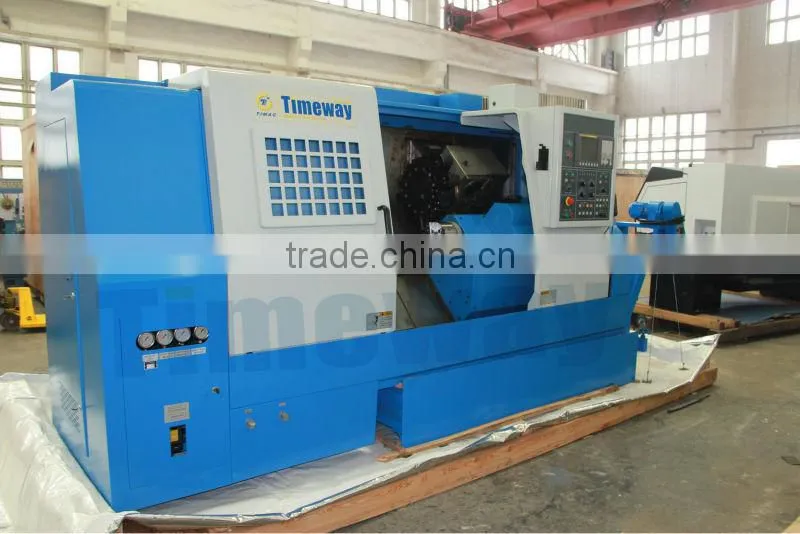

Double Spindle CNC Lathe AK-25DS
| Specification | AK-25DS | |
| Capacity | Swing over bed | Φ600mm |
| Swing over saddle | Φ420mm | |
| Distance between the end face of two chuck | 620mm | |
| Max. turning diameter | Φ420mm | |
| Max. turning length | 500mm | |
| Travel and feed | Sub-spindle travel | 550mm |
| X travel | 250mm | |
| Z travel | 650mm | |
| X travel speed | 18000mm/min | |
| Z travel speed | 20000mm/min | |
| Hand wheel | 0.001mm/0.01mm/0.1mm | |
| X, Z feeding speed | 1260mm/min | |
| Spindle | Spindle speed | 35-3500rpm, 45-4500rpm |
| Spindle nose | A2-8(main spindle), A2-6(sub-spindle) | |
| Size of chuck | 10”(main spindle), 8”(sub-spindle) | |
| Spindle hole | 87mm(main spindle), 62mm(sub-spindle) | |
| Front bearing diameter | Φ130mm(main spindle), Φ110mm(sub-spindle) | |
| Turret | Number | 12 |
| Tool shrank size | 25x25mm | |
| Drilling diameter | 40mm | |
| Tool changing | 1.0sec | |
| Motor | Spindle motor | AC18.5/15KW |
| X axis feed motor | AC1.6KW | |
| Z axis feed motor | AC3.0KW | |
| Sub-spindle feed motor | AC3.0KW | |
| Sub-spindle motor | AC11/9KW | |
| Consumed power | 40KVA | |
| Others | Coolant fluid volume | 200L |
| Motor | 0.18KW(1HP) | |
| Machine weight | 5500kg | |
| Machine height | 1950mm | |
| Floor space(LxW) | 3370x1700mm | |
| Positioning accuracy | Z-axis | R: 0.006mm, B: 0.008mm, A: 0.010mm |
| X-axis | R: 0.006mm, B: 0.004mm, A: 0.010mm | |
| R: repeat positioning accuracy; B: reverse warp; A: positioning accuracy. | ||
Packaging & Shipping
Our Services
Related Machines supplied:
***Full Function CNC Lathe (slant bed type)
Model: AK-10, AK-15B, AK-25, AK-35, AK-45
***CNC Turning Center (CNC lathe with C axis for drilling and milling also)
Model: AK-15M, AK-25M, AK-35M
