Home > Manufacturing & Processing Machinery > Machine Tools > Lathe > 20" Precision CNC Horizontal Lathe

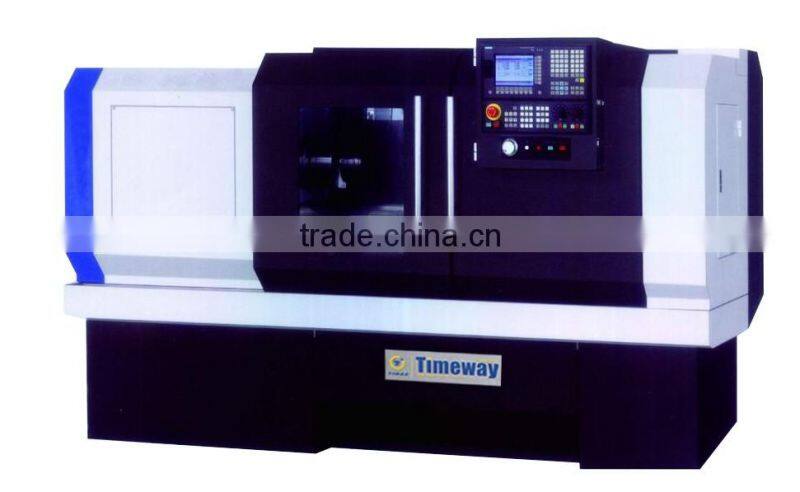

20" Precision CNC Horizontal Lathe
US$ 5,000 - 15,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Horizontal
CNC or Not:
CNC
Payment & Shipping
Payment Methods:
Port of Shipment:
China Port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
CNC High Speed Round Table Vertical Turning MachineUS$ 30,000 - 150,000MOQ: 1 Set -
High Precision CNC Vertical LatheUS$ 20,000 - 100,000MOQ: 1 Set
-
Swing 630mm CNC Horizontal Lathe MachineUS$ 20,000 - 50,000MOQ: 1 Set
-
Double Spindle CNC Lathe Machine AK-25DSUS$ 45,000 - 53,000MOQ: 1 Set
-
AK-630 CNC Flat-bed Lathe MachineUS$ 10,000 - 35,000MOQ: 1 Set
Condition
New
Type
Horizontal
CNC or Not
CNC
Automatic Grade
Automatic
Max. Swing Diameter
500mm
Brand Name
TIMAC
Model Number
CK-500
Voltage
380V/50HZ/3PH
Power(W)
7.5KW
Dimension(L*W*H)
2650*1320*1690mm
Weight
2200kg
Certification
CE ISO
After-sales Service Provided
Engineers available to service machinery overseas
Precision Horizontal CNC Turning Machine (CNC Lathe)
CK-500

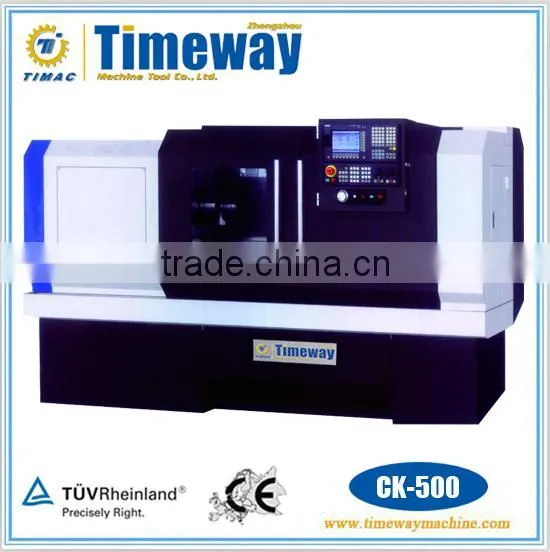

Main Outlook
Specifications List
Technical Parameters
| Specifications | Units | CK-500 |
| Max. turning diameter of bed body | mm | Φ500 |
| Max. turning diameter of skateboard | mm | Φ305 |
| Max. length of workpiece | mm | 950 |
| Spindle bore diameter | mm | Φ70 |
| Range of spindle speed | rpm | 100-2000 |
| Spindle speed steps | Stepless | |
| Spindle taper | Metric80# | |
| Spindle model | A2-8 | |
| Max. stroke X-axis | mm | 250 |
| Max. stroke Z-axis | mm | 950 |
| X-axis rapid feed speed | mm/min | 8000 |
| Z-axis rapid feed speed | mm/min | 12000 |
| X-axis min. setting unit | mm | 0.001 |
| Z-axis min. setting unit | mm | 0.001 |
| Main motor power | kw | 7.5 |
| The type of chuck | Manual(Hydraulic/Pneumatic) | |
| Diameter of chuck | mm | Φ250 |
| Tool post station | 4stations | |
| Tool section size | mm | 25*25 |
| X-axis guideway type | 55°dovetail guide | |
| Z-axis guideway type | Yamagata flat guide | |
| Tailstock sleeve taper | Morse 5# | |
| Tailstock travel | mm | 80 |
| Machine weight | kg | 2200 |
| Machine dimensions(L*W*H) | mm | 2650*1320*1690 |
