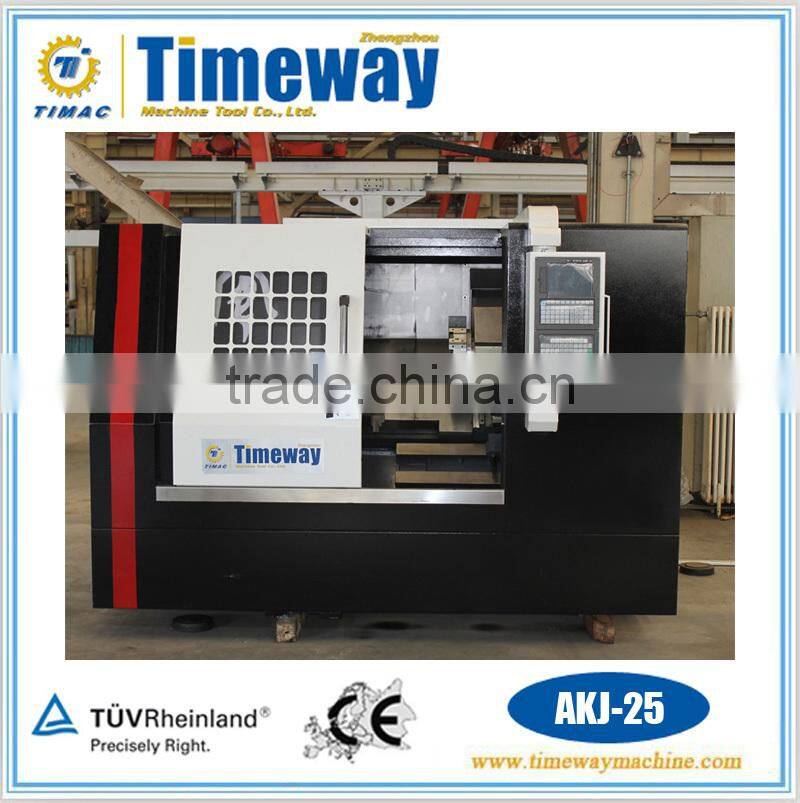

Full Function CNC Lathe
Features:
1. The economical full function CNC lathe is semi-closed loop CNC machine tools suitable to turn various complicated shaft,
sleeve and disk-like work pieces, such as turning of internal and external cylindrical, conical and other circumgyration
surface as well as various metric, inch, modular and diametric pitch threads;
2. They can also be used for oil grooves and keyways broaching, end-facing, grooving and chamfering, etc;
3. The unique construction developed using FEA techniques to provide maximum stiffness under the heaviest cutting condition;
4. The machining accuracy is about IT5~IT6, and the surface roughness is about Ra0.4um for nonferrous metal cutting and
Ra0.8um for ferrous metal;
5. It is especially suitable for the machining of high precision work-pieces, and also widely used to machining parts in batches
in the fields of automobile, motorcycle, railroad, aero-craft, home-appliance, bearing, hardware, etc.
Parameter:
Specification | Unit | AKJ-25 | |
Capacities | Swing over bed | mm | 500 |
| Max. turning dia. | mm | 370 |
| Max. turning dia. over carriage | mm | 270 |
| Max. turning length | mm | 530 |
| Distance between centers | mm | 600 |
| Max. bar capacity | mm | 51 |
Travel and feed | X-axis travel | mm | 210 |
| X-axis servo motor | kw | 1.2 |
| X-axis servo motor torque | Nm | 7 |
| Z-axis travle | mm | 550 |
| Z-axis servo motor | kw | 1.4 |
| Z-axis servo motor torque | Nm | 11 |
| Rapid traverse (X- and Z- axis) | m/min | 12/16 |
Spindle | Spindle speed | rpm | 2500 |
| Spindle nose |
| A2-6 |
| Size of chuck | inch | 8" |
| Spindle bole (dia) | mm | 62 |
| Main spindle motor | kw | 15 |
Turret | Number of stations |
| 8 |
| Tool shank size | mm | 25×25 |
| Boring bar shank dia. | mm | 40 |
Tailstock | Max. travel | mm | 380 |
| Quill dia. | mm | 85 |
| Quill travel | mm | 100 |
| Quill taper hole |
| MT-5 |
Others | Machine weight | kg | 3700 |
| Machine height | mm | 1810 |
| Floor space (L×W) | mm | 2555×1490 |
*** Standard Accessories:
FANUC 0i TD controller; FANUC servo main motor, FANUC servo type feeding motor for both X,Z axes; 8” hydraulic solid chuck; 8 stations hydraulic tool turret; Hydraulic tailstock; Automatical lubricating unit; Cooling system; General tools; Auto. chip conveyor; Operational manual(English edition).
* AKJ-15, AKJ-25 Series Economic Type Slant Bed CNC Lathe
* AK-15B Series Slant Bed CNC Lathe
* AK-25 Series Slant Bed CNC Lathe
* AK-15M, AK-25M Sereies CNC Turning Center (With C-axis)
* AK-25DS Sereies Double Spindle CNC Lathe
Package: Wooden pallet & plastic cover (Standard)
or Plywood case (Optional)
Packing size:
One piece in one case: 2950*1150*1750MM N.W./G.W.: 1850/2250KG
