W24Y-1000 HYDRAULIC SECTION BENDER
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
TIMAC
Model Number:
W24Y-400, W24Y-500
Machine Type:
Roller-Bending Machine
Payment & Shipping
Payment Methods:
Port of Shipment:
China port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Slip Roll MachineNegotiableMOQ: 5 Sets -
Eight Axes CNC High Efficiency Spring Bending Machine (Wire Bender)US$ 10,000 - 100,000MOQ: 1 Set
-
5 Axes Universal CNC Spring Making MachineUS$ 10,000 - 100,000MOQ: 1 Set
-
Automatic CNC Versatile Spring Coiling Machine (Universal CNC Spring Machine)US$ 10,000 - 100,000MOQ: 1 Set
-
CNC Wire Profile Bending MachineUS$ 1,000 - 100,000MOQ: 1 Set
Brand Name
TIMAC
Model Number
W24Y-400, W24Y-500
Machine Type
Roller-Bending Machine
Raw Material
Steel Bar
Material / Metal Processed
Stainless Steel
Power
Hydraulic
Automation
Manual

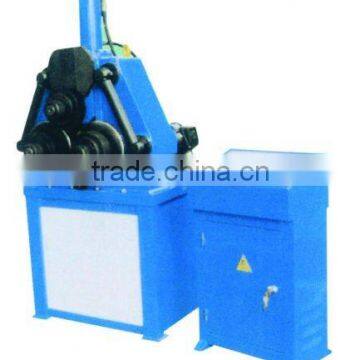

HYDRAULIC SECTION BENDER
* The HYDRAULIC SECTION BENDER machine is an efficient processing machine which is specially designed to bend I steel, U steel, flat beam, solid bar, etc.
* It has three working rollers, the positions of the two bottom rollers can be adjusted along the arc. sting rollers are installed on both sides of the machine to control the work quality in the bending of proportional steel sections.
* The main machine that's adjustable and able to deal with different types of material and specifications only by recombining the die settings.
* The machine offers low cost with flexibility and reliability.
| Model | W24Y-400 | W24Y-500 | W24Y-1000 | |
| Yield limit | mm | <245 | <245 | <245 |
| Min. bending dia. (Angle steel leg out) | mm | 200-400 | 300-400 | 400-600 |
| Capacity | L40X4 | L50X5 | L75X7 | |
| Overall size | L.mm | 1000 | 1200 | 1320 |
| W.mm | 750 | 750 | 950 | |
| H.mm | 1350 | 1580 | 1270 | |
| N.W/G.W | kg | 500/600 | 900/1030 | 2500/2750 |
| Main motor | kw | 2.2/1.5 | 2.2/2.2 | 4/2.2 |
