Automatic CNC Versatile Spring Coiling Machine (Universal CNC Spring Machine)
USPK-25 USPK-40 USPK-580
Technical Parameter
USPK-25
Model |
USPK-25 |
Axis Count |
3-4 axis |
Wire Size Range |
φ0.2-2.5mm |
Max Outside Diameter |
φ50mm |
Max Feeding Length |
Unlimited |
Max Feeding Speed |
110m/min |
Max Production Rate |
70pcs/min |
Wire Feeding Servo Motor |
2.7kw |
Cam Servo Motor |
2.7kw |
Quill Servo Motor |
1.0kw |
Dimensions(LxWxH) |
1040x600x1575 |
Weight |
1200kg |
Power AC |
3-380VAC 50Hz |
USPK-40
Model |
USPK-40 |
Axis Count |
3-4 axis |
Wire Size Range |
φ1.2-4.0mm |
Max Outside Diameter |
φ65mm |
Max Feeding Length |
Unlimited |
Max Feeding Speed |
110m/min |
Max Production Rate |
60pcs/min |
Cam Setting Value |
±0.1°~±359.9° |
Wire Feeding Servo Motor |
5.5kw |
Cam Servo Motor |
3.8kw |
Quill Servo Motor |
1.0kw |
Dimensions(LxWxH) |
1500x1900x1000mm |
Weight |
2000kg |
Power AC |
3-380VAC 50Hz |
USPK-580
Model |
USPK-580 |
Axis Count |
4-5 axis |
Wire Size Range |
φ3.0-8.0mm |
Max Outside Diameter |
φ110mm |
Max Feeding Length |
Unlimited |
Max Feeding Speed |
75m/min |
Cam Setting Value |
±0.1°~±359.9° |
Cam Speed |
60rpm/min |
Wire Feeding Motor |
15kw |
Cam Motor |
7.5kw |
Rotary Quill Motor |
2.0kw |
Rotating Wire Motor |
7.5kw |
Spinner Motor |
1.5kw |
Dimensions(LxWxH) |
3000x1800x2000mm |
Wieight |
9000kg |
Power AC |
3-380VAC 50Hz |
Performance and Feature

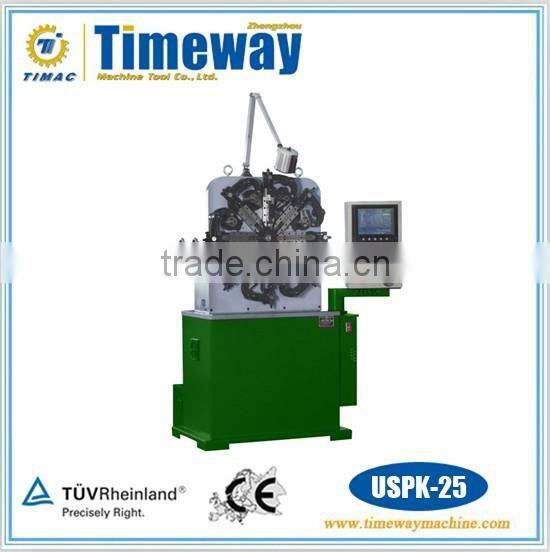

USPK-25
- USPK-25 Versatile Spring Coiling Machine combines precision CNC controlled servo-motion system and conveniences of mechanization. It is suitable for various kinds of spring products through a simplified setup and programming procedure.
- USPK-25 Versatile Spring Coiling Machine is equipped with eight slides. We design tools for individual purposes such as bending, coiling, pitching, forming, and cutting. Working spaces and angles are considered very carefully to develop portable tool holders for straight movement or supporting movement from other slides.
- USPK-25 Versatile Spring Coiling Machine is able to produce torsion springs, compression springs, tension / extension springs, abnormal machine,taper-spring, wire-forms and other related spring products.

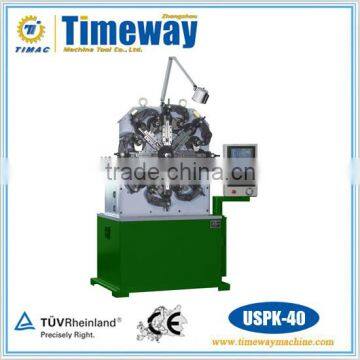

USPK-40
- USPK-40 CNC versatile wire forming machinecombines precision CNC controlled servo-motion system and conveniences of mechanization. It is suitable for various kinds of spring products through a simplified setup and programming procedure.
- USPK-40 CNC versatile wire forming machine is equipped with eight slides. We design tools for individual purposes such as bending, coiling, pitching, forming, and cutting. Working spaces and angles are considered very carefully to develop portable tool holders for straight movement or supporting movement from other slides.
- USPK-40 CNC versatile wire forming machine is able to produce torsion springs, compression springs, tension / extension springs,abnormal springs, taper-spring, wire-forms and other related spring products.

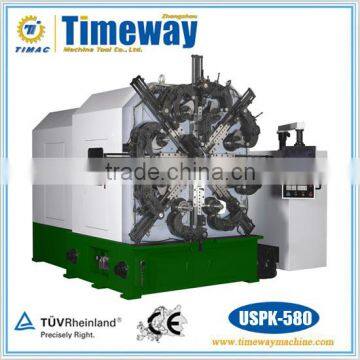

USPK-580
- USPK-580 versatile wire forming machine combines precision CNC controlled servo-motion system and conveniences of mechanization. It is suitable for various kinds of spring and wire forms products through a simplified setup and programming procedure.
- USPK-580 versatile wire forming machine is equipped with eight slides. We design tools for individual purposes such as bending, coiling, pitching, forming, and cutting. Working spaces and angles are considered very carefully to develop portable tool holders for straight movement or supporting movement from other slides.
- USPK-580 universale wire forming machine is able to produce torsion springs, compression springs, tension / extension springs, abnormal springs,taper-spring, wire-forms and other related spring products.
- USPK-580 wire forming machine is designed for 4-6 axis , 4 axis is standard assignment (cam, wire feeding, wire rotary and rotary quill ) 2 servo spinner system are optional upon request.
Other Spring Machine(Universal Spring Machine)
SPK-30 SPK-40
USPK-540 USPK-40

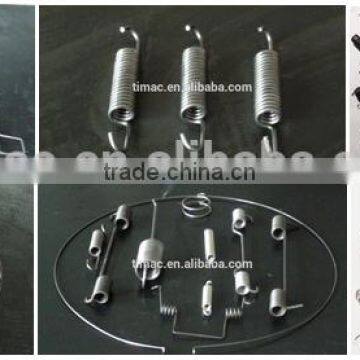

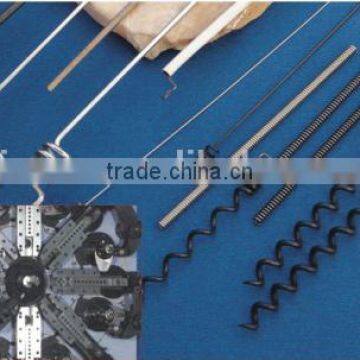

Workpiece Sample

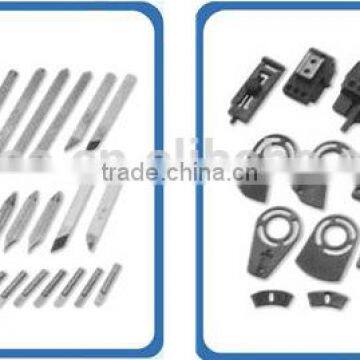

Spring Tool
Automatic Wire Feeding Machine
FWA-1000 FWA-100
FWA-400 FWA-200
Spring Grinding Machine
MTH-180 MTH-250 MTH-380
